ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Adjustable Wrench and Allen Wrench
NOTE: It is strongly recommended two or more people assembling this machine to avoid
possible injuries.

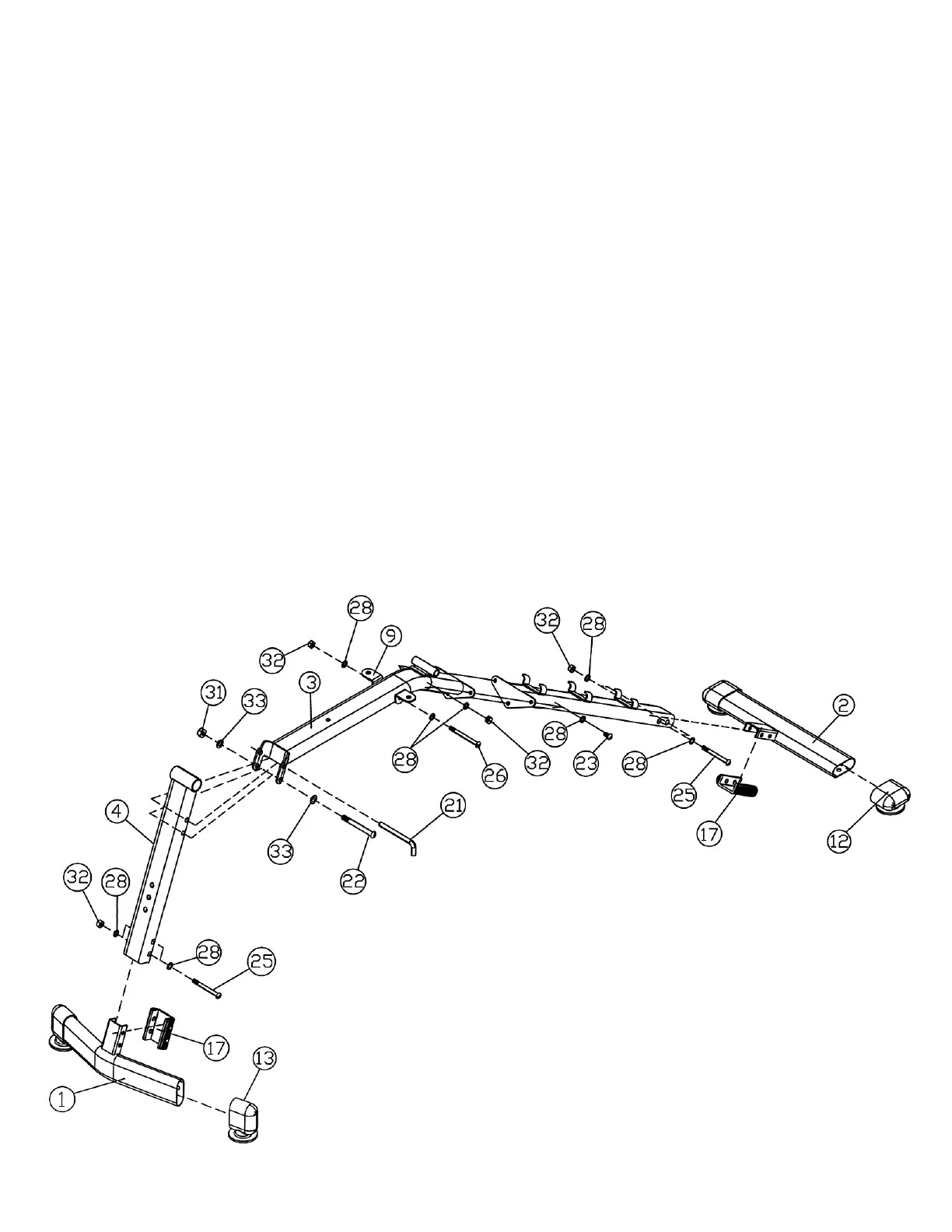

STEP 1 (See Diagram 1)
A.) Push the two Front Stabilizer End Caps (#13) and two Rear Stabilizer End Caps (#12) onto
the Front Stabilizer (#1) and the Rear Stabilizer (#2) from both ends.
B.) Attach a U-shaped Sleeve (#17) onto the bracket on the Front Stabilizer (#1). Make sure the
opening on the Sleeve is facing toward front.
C.) Attach the Front Stabilizer to the Vertical Frame (#4). Secure it with two M8 x 3 1/8” Allen Bolts
(#25), four Ø 5/8” Washers (#28), and two M8 Aircraft Nuts (#32).
D.) Attach one U-shaped Sleeve (#17) to the bracket on the Rear Stabilizer (#2). Attach the
Lower Main Frame (#34) to the Rear Stabilizer (#2). Secure it with two M8 x 3 1/8” Allen Bolts
(#25), four Ø 5/8” Washers (#28), and two M8 Aircraft Nuts (#32).
E.) Attach the Main Frame (#3) to the Lower Main Frame (#34). Secure it with three M8 x ¾” Allen
Bolts (#23), six Ø 5/8” Washers (#28) and three M8 Aircraft Nuts (#32).
F.) Attach the Main Frame (#3) to the Front Vertical Frame (#4). Secure the lower hole with one
M10 x 3 ¾” Allen Bolt (#22), two Ø ¾” Washers (#33), and one M10 Aircraft Nut (#31). Insert a
L-shaped Lock Pin (#21) through the upper hole to lock the Front Vertical Frame in position.
Remove the Pin when folding the bench for storage.
G.) Attach two L-shaped Brackets (#9) to the Main Frame (#3). Secure them with one M8 x 3 ½”
Allen Bolt (#26), two Ø 5/8” Washers (#28), and one M8 Aircraft Nut (#32).
5
