STEP 2 (See Diagram 2)
A.) Plug a Stabilizer End Cap (#23) onto the bottom of Front Leg (#8). Attach the Front
Leg to the Main Seat Support (#6). Secure it with three M8 x 5/8” Allen Bolts (#30) and
Ø 5/8” Washers (#33). DO NOT tighten the Bolts yet.
B.) Attach the Main Seat Support (#6) to the Cross Brace (#2). Secure it with two M10 x 2
1/8” Carriage Bolts (#27), one Flat Bracket (#5), two Ø ¾” Washers (#32), and two
M10 Aircraft Nuts (#35).
C.) Attach one end of Diagonal Support (#7) to the Main Seat Support (#6). Secure it with
one M8 x 2 1/8” Allen Bolt (#29), two Ø 5/8” Washers (#33), and one M8 Aircraft Nut
(#36). Attach the other end of Diagonal Support to the Front Leg (#8). Secure it with
one M8 x 5/8” Allen Bolt (#30) and Ø 5/8” Washer (#33).
D.) Securely tighten all Nuts and Bolts previously installed.

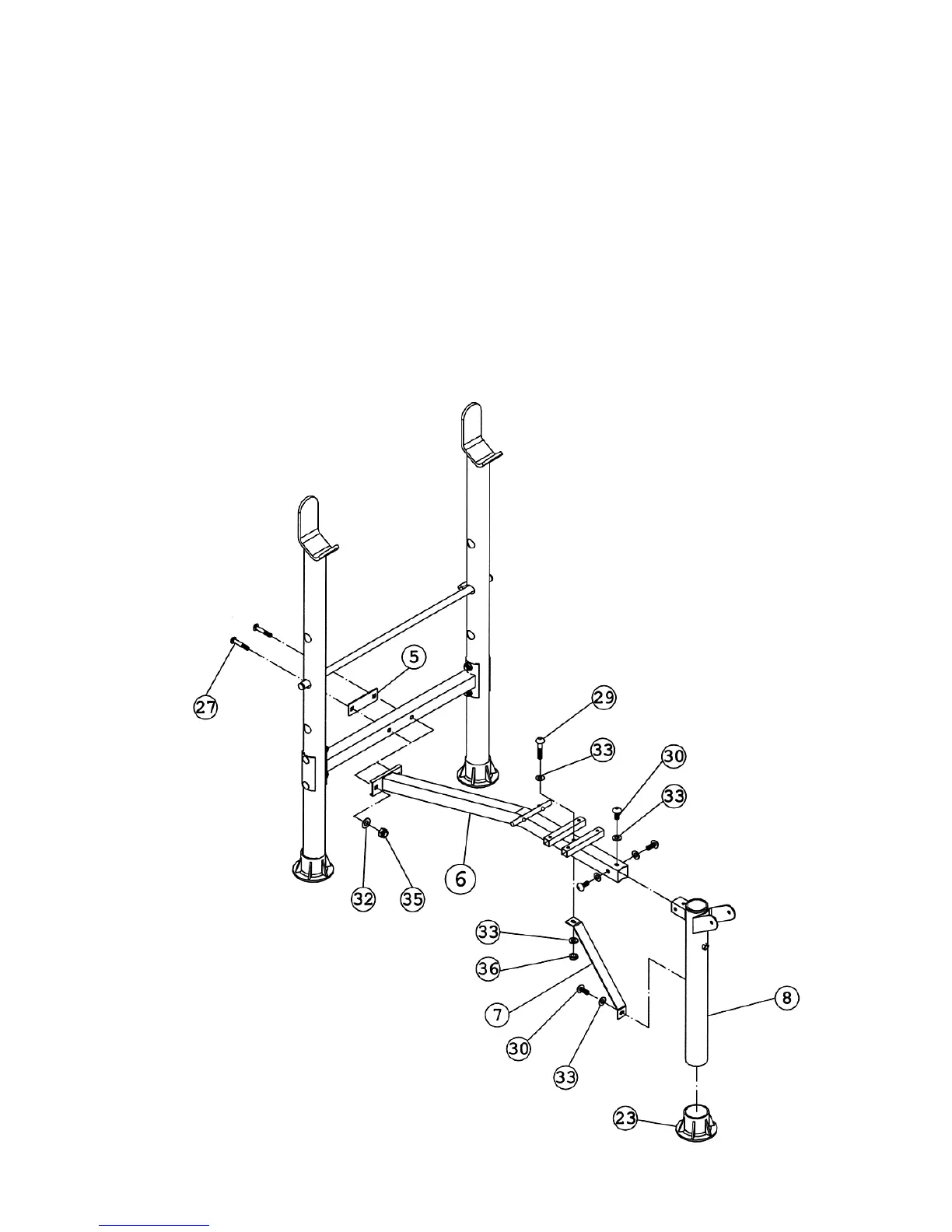

DIAGRAM 2
6
