STEP 4 (See Diagram 4)
A.) Attach the hole-side of the Backrest Supports (#13) onto both ends of the pivot on the Main
Seat Support (#6). Place the other end rest against the Backrest Adjustment Bar (#4).
B.) Place the Backrest Board (#14) onto the Backrest Supports. Secure it with four M6 x 1
3/8” Philips Screws (#31) and Ø ½” Washers (#34).
C.) Place the Seat Pad (#15) onto the Main Seat Support. Secure it with four M6 x 1 3/8”
Philips Screws (#31) and Ø ½” Washers (#34).

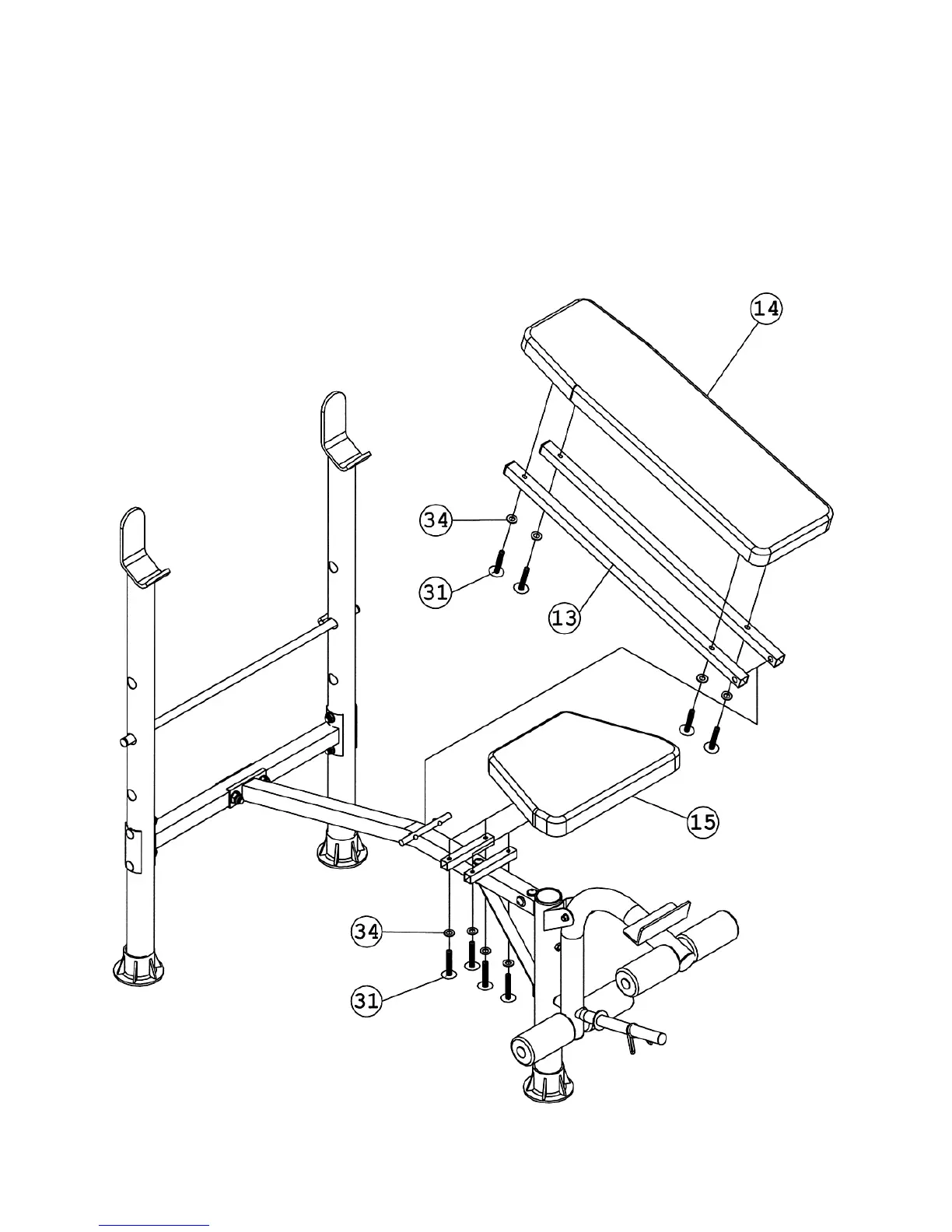

DIAGRAM 4
