Impex HERS MS-93 User Manual

STEP 2 (See Diagram 2)
A.) Connect the Computer Sensor Wire (#21) from Lower Frame (#5) to the Computer
Sensor Wire (#21) from Upper Frame (#4).
B.) Insert the Upper Frame into the Lower Frame. Secure it with four M8 x 5/8” Allen Bolts
(#32), four Ø 5/8” Lock Washers (#37), and four Ø 5/8” Curved Washers (#36).
C.) Install two 1.5v AA batteries into the Computer (#19).
D.) Connect the Computer Sensor Wire (#21) from Upper Frame to the wire on the
Computer. Slide the Computer onto the Upper Frame.
E.) Attach the Handle Bar (#7) to the Upper Frame. Secure it with two M8 x 4” Allen Bolt
(#28), four Ø 5/8” Curved Washers (#36), two Ø 5/8” Lock Washers (#37), and two M8
Aircraft Nuts (#41).

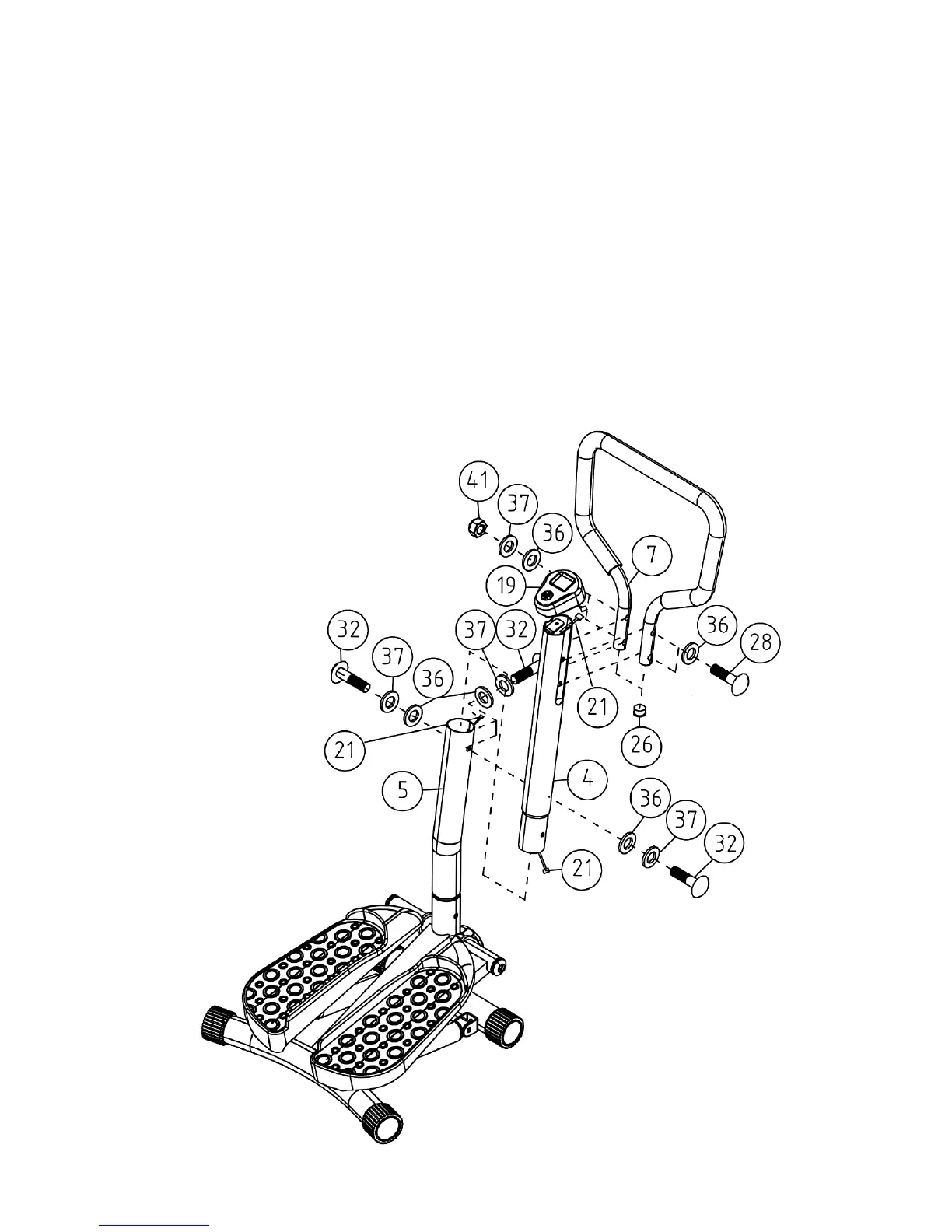

DIAGRAM 2
6
