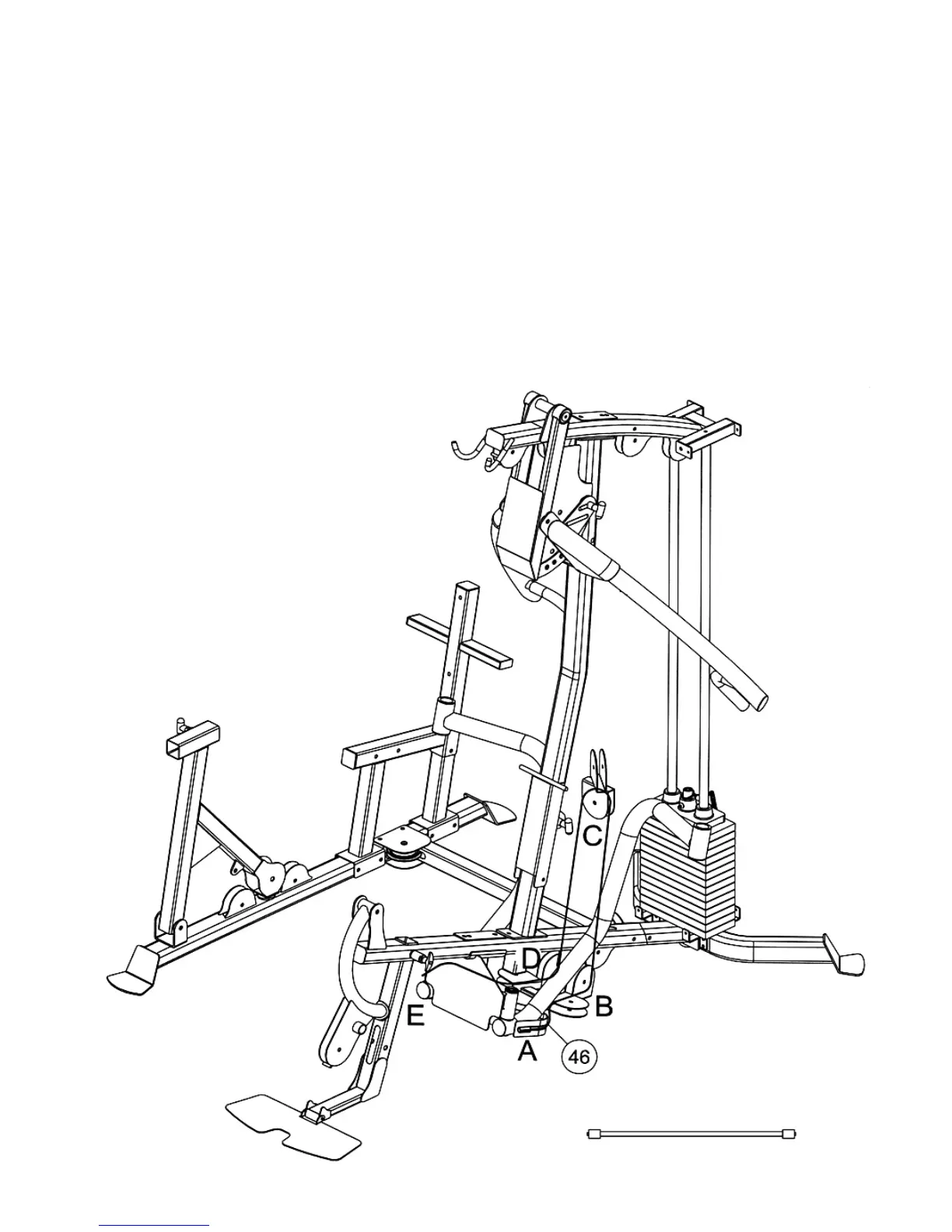

STEP 12 (See Butterfly Cable Loop and Diagram 12)
A.) Attach one end of 90” Butterfly Cable (#46) onto the open slot on the Left Butterfly (#8).
B.) Draw the Cable to the left horizontal bracket on the Butterfly Pulley Bracket (#13). Attach a Pulley
(#59) to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#95), two Ø ¾” Washers (#107),
and one M10 Aircraft Nut (#110). Draw the Cable to the left vertical open bracket. Secure a Pulley
to the bracket with one M10 x 1 5/8” Allen Bolt (#132), two Ø ¾” Washers (#107), and one M10
Aircraft Nut (#110).
C.) Draw the Cable under the Pulley and then upward to the Double Floating Pulley Bracket (#16)
previously installed in Step 10. Attach a Pulley to the Bracket. Secure it with one M10 x 1 ¾” Allen
Bolt (#95), two Ø ¾” Washers (#107), and one M10 Aircraft Nut (#110)
D.) Draw the Cable around the Pulley then downward. Repeat Procedure B to install a Pulley to the
right vertical & horizontal bracket.
E.) Draw the Cable to the Right Butterfly (#9). Attach the end of Cable to the open slot on the Right
Butterfly.
30
