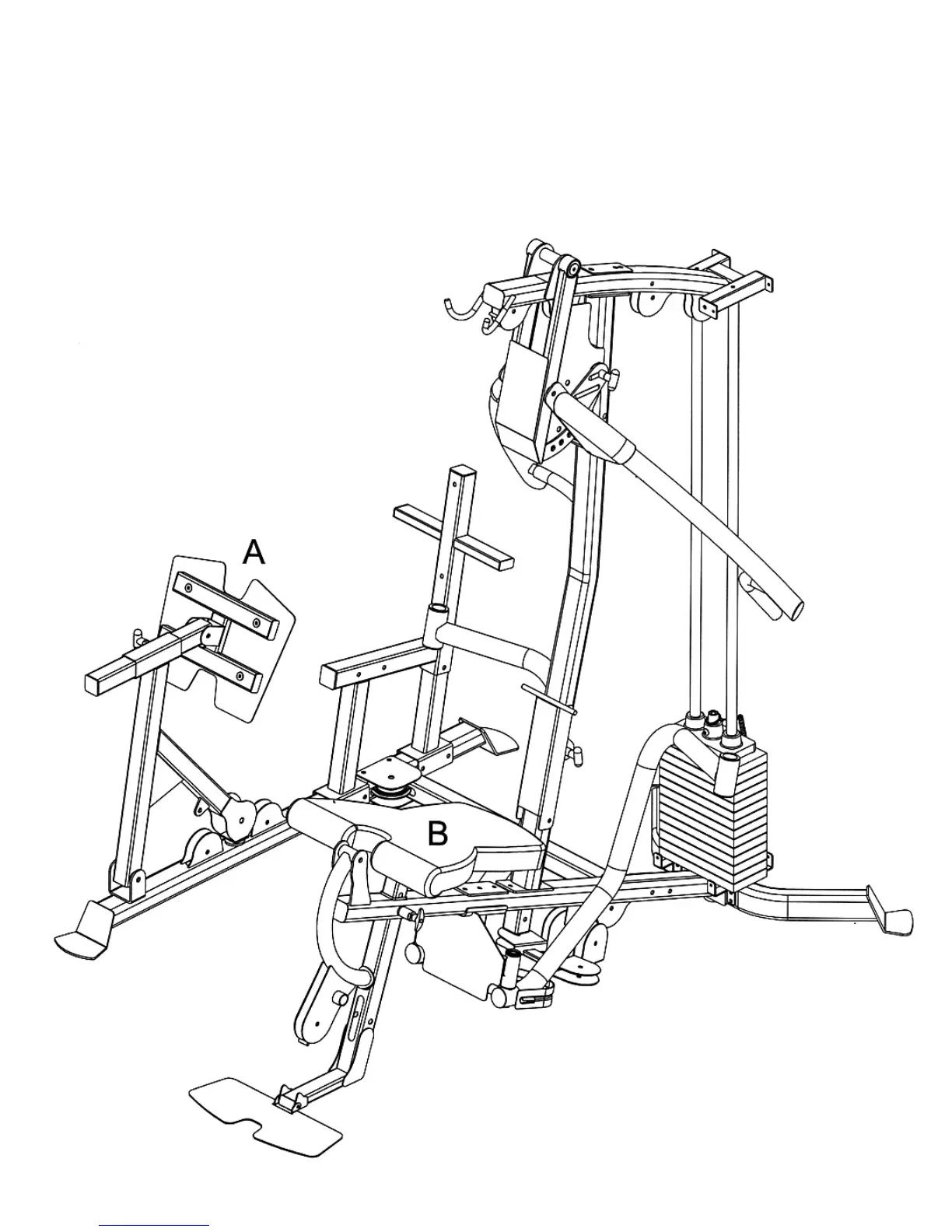

STEP 13 (See Diagram 13)
A.) Attach the Leg Press Adjustment Frame (#36) to the Leg Press Plate (#35). Secure it with one
M10 x 3” Allen Bolt (#98), two Ø ¾” Washers (#107), and one M10 Aircraft Nut (#110). Use a Leg
Press Lock Pin (#26) to secure the Leg Press Plate at desired position.
B.) Attach the Front Press Seat Pad (#48) to the Seat Support (#11). Secure it with four M8 x 1 ¾”
Allen Bolts (#91) and Ø 5/8” Washers (#106). Insert the Seat Support into the Main Support
Frame (#1). Use the Seat Support Lock Pin (#121) to lock the Seat Support in desired height.
