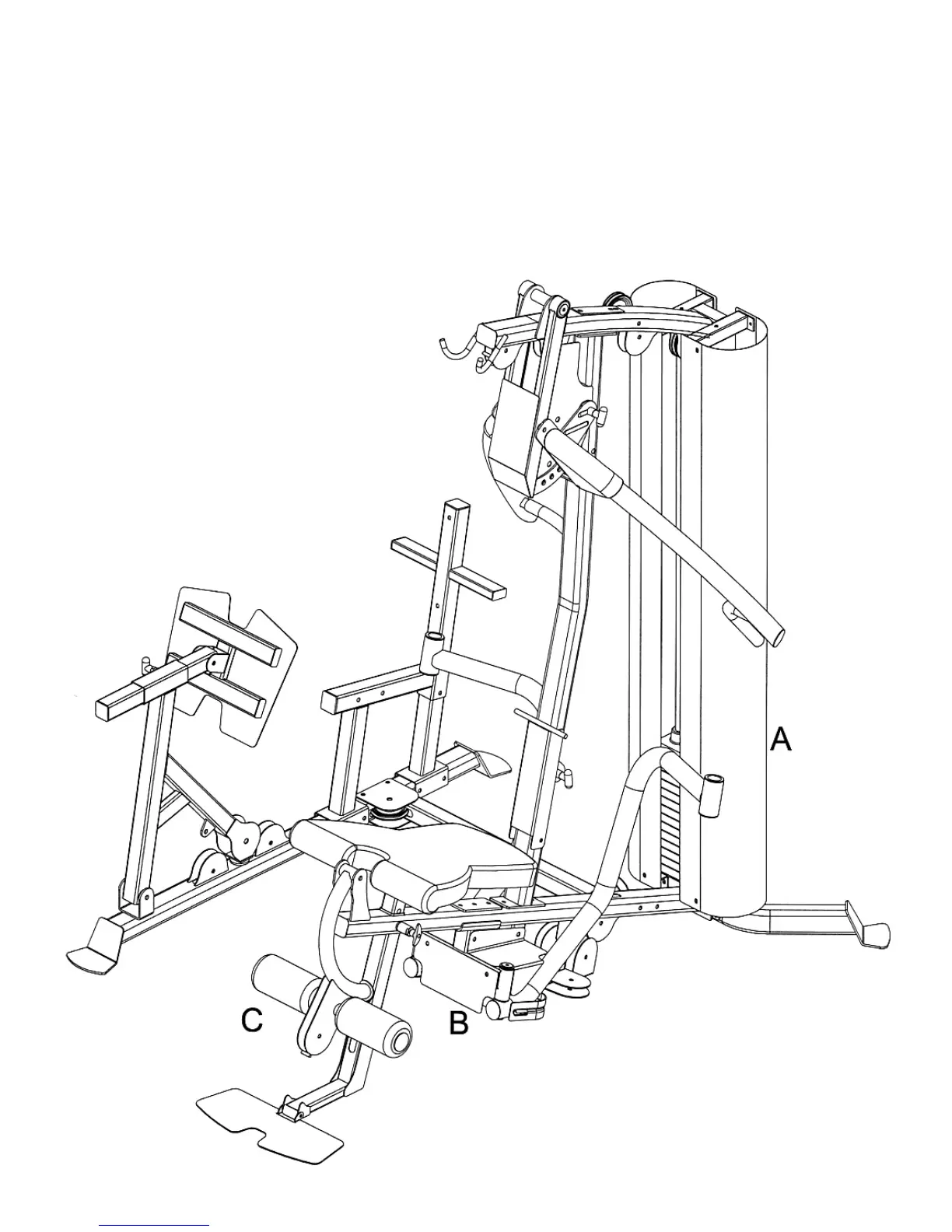

Step 14 (See Diagram 14)
A.) Attach a Weight Stack Cover (#24) to the rear of the machine. Secure it to the Brackets and
Upper Frame with four M8 x ¾” Allen Bolts (#90), Ø 5/8” Lock Washers (#124), and Ø 5/8” Large
Washers (#43). Repeat the same procedure to install the other side.
B.) Attach the Butterfly Right & Left Covers (#27 & #28) to the Butterfly Base. Align the holes. Secure
them to the Butterfly Base with two M10 x 2 ½” Allen Bolts (#96), four Ø ¾” Washers (#107), and
two M10 Aircraft Nuts (#110).
C.) Insert the Foam Tube (#5) halfway through the hole on the Leg Developer (#6). Push two Foam
Rolls (#63) onto the Tube. Plug two Foam Roll End Caps (#67) into the Ends.
