Step 15 (See Diagram 15)
A.) Attach the Leg Press Seat Pad (#50) to the Leg Press Seat Bracket (#37). Secure it with two
M8 x ¾” Allen Bolt (#90) and two Ø 5/8” Washers (#106). Attach the Leg Press Seat Bracket
to the Leg Press Seat Support (#33). Secure it with M10 x 2 ¾” Allen Bolts (#97), four Ø ¾”
Washers (#107), and two M10 Aircraft Nuts (#110).
B.) Attach the Leg Press Backrest Board (#51) to the Leg Press Backrest Support (#32). Secure
it with two M8 x 2 ½” Allen Bolts (#92) and two Ø 5/8” Washers (#106). Attach the Storage
Bag (#123) to the Leg Press Backrest Support. Secure it with three M5 x ½ Philips Screws
(#120) and three Ø ½” Washers (#125).
C.) Attach the two Backrest Adjustment Brackets (#14) onto the pivot on the Backrest Support
(#12) from each end. Secure Front Press Backrest Board (#49) to the Backrest Adjustment
Brackets with four M8nx ¾” Allen Bolts (#90) and four Ø 5/8” Washers (#106).

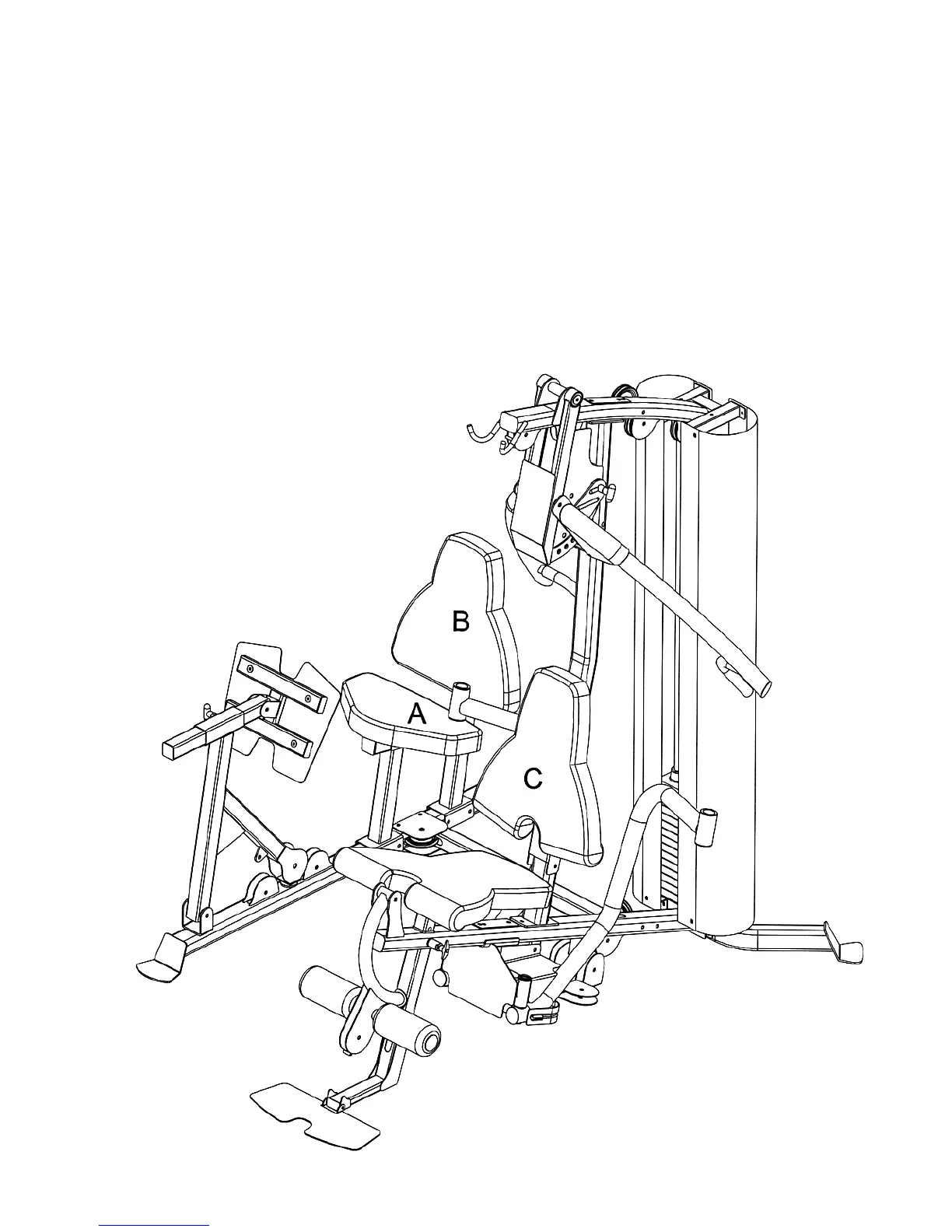

DIAGRAM 15
36
