STEP 2 (See Diagram 2)
A.) Connect the Left Support Frame (#4) to the Right Support Frame (#5). Align the holes.
Secure them together with two M10 x 3 ¾” Allen Bolts (#51), four Ø ¾” Washers (#64),
and two M10 Aircraft Nuts (#67). Do not tighten the Nuts and Bolts yet.
B.) Attach the Main Seat Support (#3) to both Left & Right Support Frames. Attach the
Front Post (#10) to the Main Seat Support. Align the holes. Secure them together with
four M10 x 2 ¾” Carriage Bolts (#49), Ø ¾” Washers (#64) and M10 Aircraft Nuts (#67).
C.) Securely tighten all Nuts and Bolts previously installed.

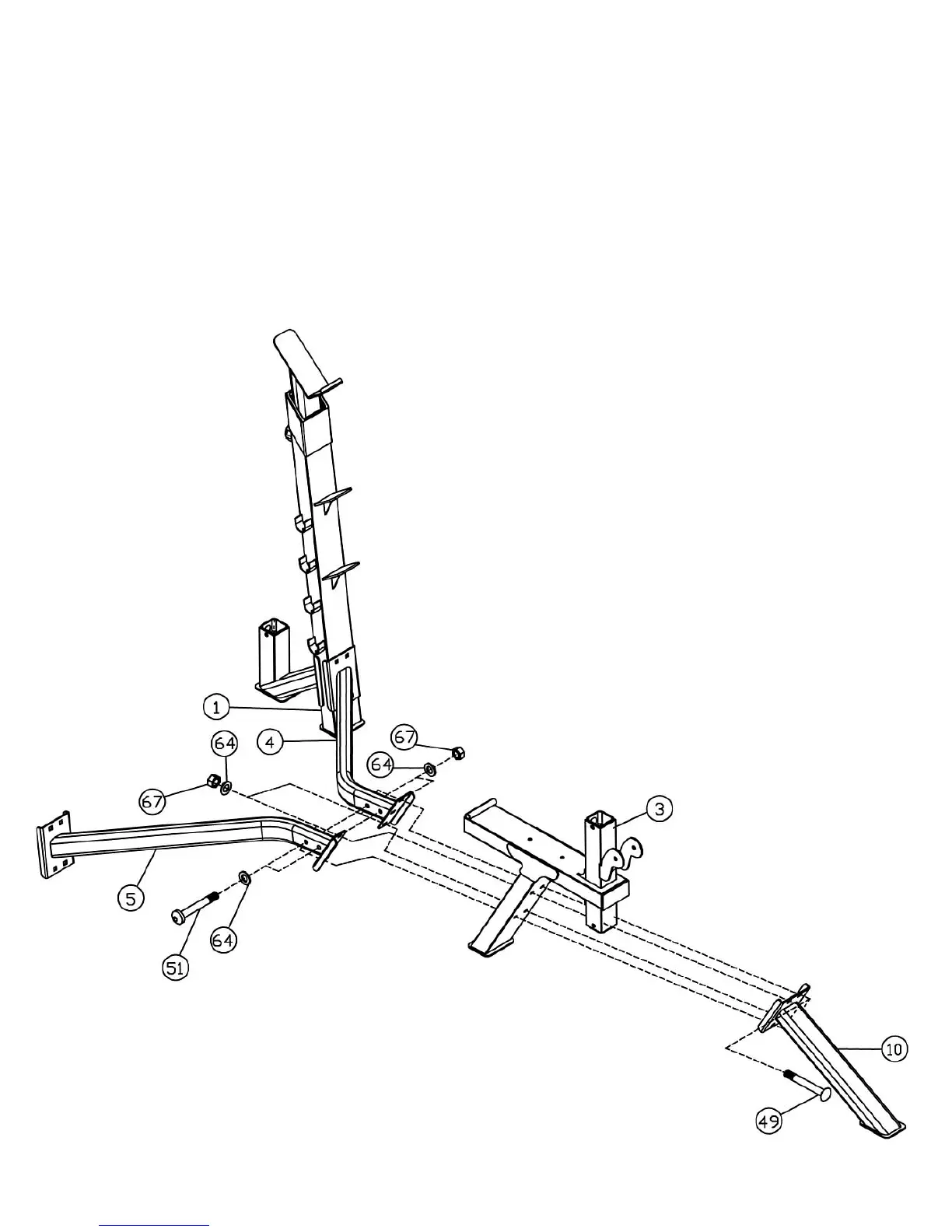

DIAGRAM 2
7
