STEP 5 (See Diagram 5)
A.) Wrap the ball end of the Cable around the Pulley (#30). Place the Pulley in the open
slot on the Lat Bar Frame (#12). Secure it with one M10 x 2” Hex Bolt (#40), two Pulley
Bushings (#29), and one M10 Aircraft Nut (#47).
B.) Slide the Weight Holder (#11) onto the Lat Bar Frame from the bottom. Connect the
Cable to the Holder with a Hook (#32).
C.) Connect the Lat Bar (#13) to the Cable with a Hook (#32). When using the Lat Pull
Down, remove the Arm Curl and place it in the storage post behind the Rear Upright
Beam. Then Insert the Lat Bar Frame into the opening on the Front Stabilizer.

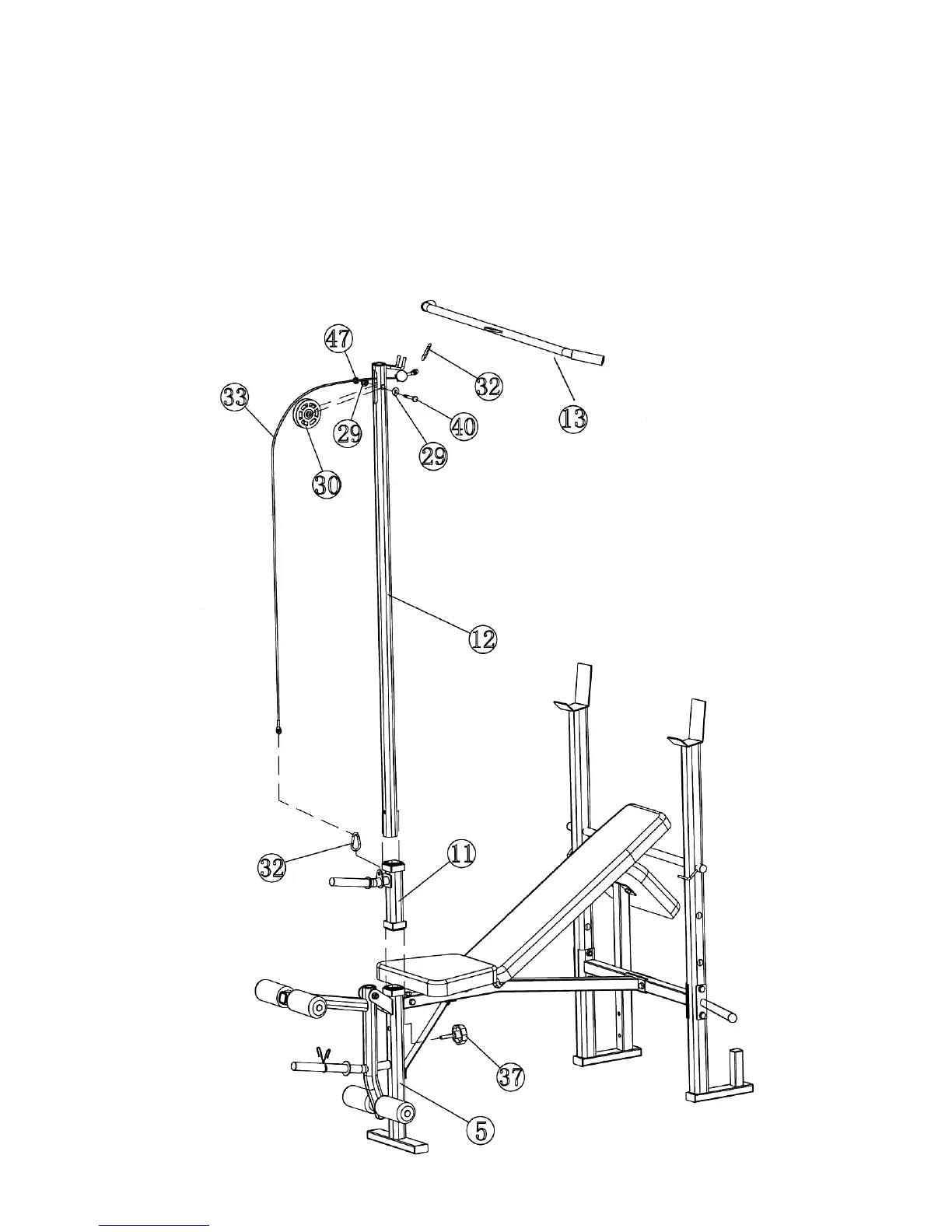

DIAGRAM 5
9
To Next Page
