ASSEMBLY INSTRUCTION
Tools required for assembling the machine: Two Adjustable Wrenches.
NOTE: It is strongly recommended that two or more people assemble this equipment to
avoid possible injury.

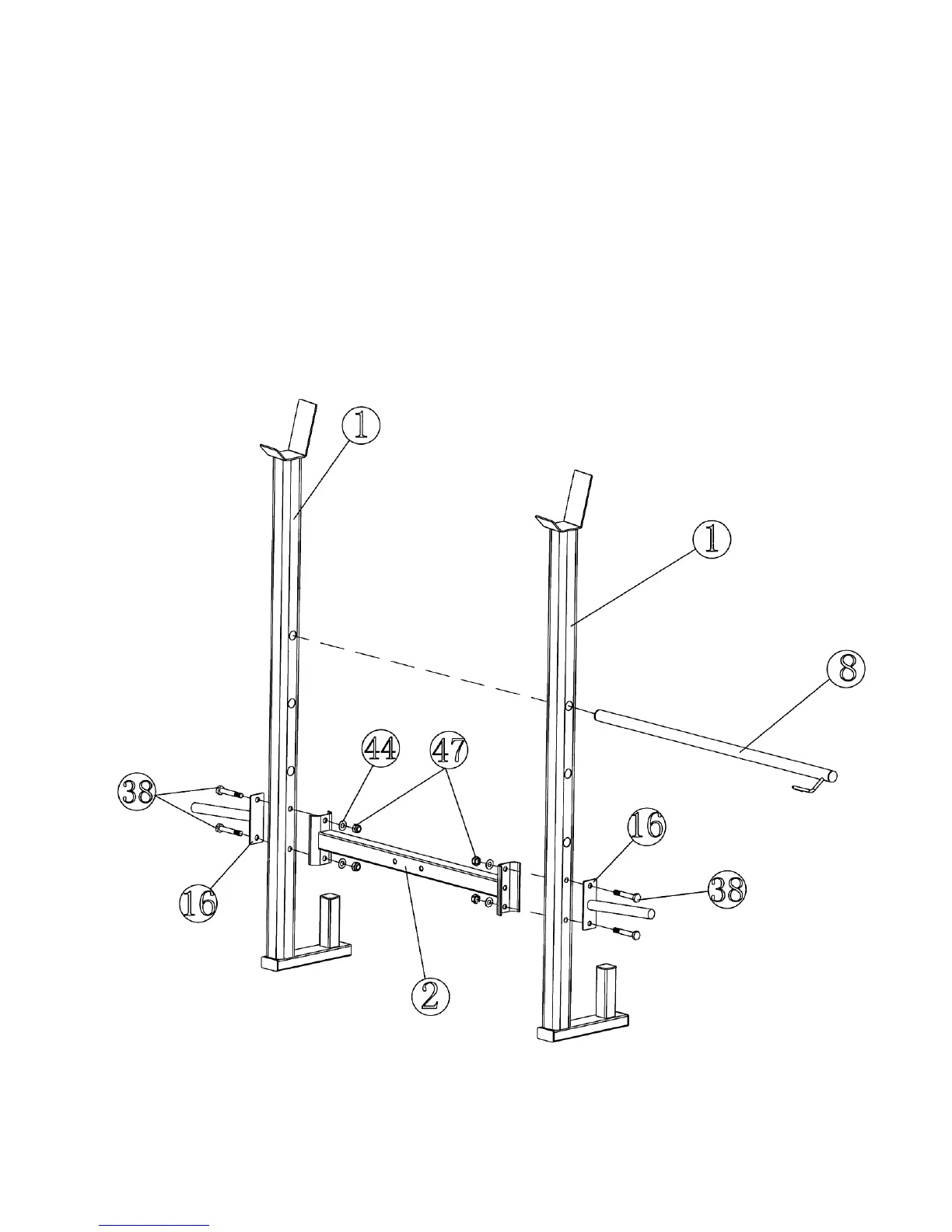

STEP 1 (See Diagram 1)
A.) Connect the two Rear Upright Beams (#1) by a Cross Brace (#2) in the mid-span.
Secure them with two M10 x 2 ¾” Hex Bolts (#38), one Weight Storage Post (#16), two
¾” Washers (#44), and two M10 Aircraft Nuts (#47) on each end of the Cross Brace.
B.) Insert the Backrest Adjustment Bar (#8) through a selected hole on the Rear Upright
Beams to obtain desired incline of Backrest.
DIAGRAM 1
5
