STEP 2 (See Diagram 2)
A.) Connect the Front Stabilizer (#5) to the Main Seat Support (#3) and secure them with
three M8 x ¾” Hex Bolts (#41) and three Ø 5/8” Washers (#45). DO NOT tighten the
Bolts yet.
B.) Connect the Main Seat Support to the Cross Brace (#2). Secure it with two M10 x 2 1/8”
Bolts (#39), one Bracket (#6), two ¾” Washers (#44), and two M10 Aircraft Nuts
(#47). DO NOT tighten the Nuts and Bolts yet.
C.) Connect one end of the Diagonal Support (#4) to the Main Seat Support (#3). Secure it
with one M8 x 2 1/8” Hex Bolt (#42), one 5/8” Washer (#45) and one M8 Aircraft Nut
(#48). Connect the other end to the Front Stabilizer (#5). Secure it with one M8 x ¾”
Hex Bolt (#41) and one 5/8” Washer (#45).
D.) Securely tighten all the Nuts and Bolts.

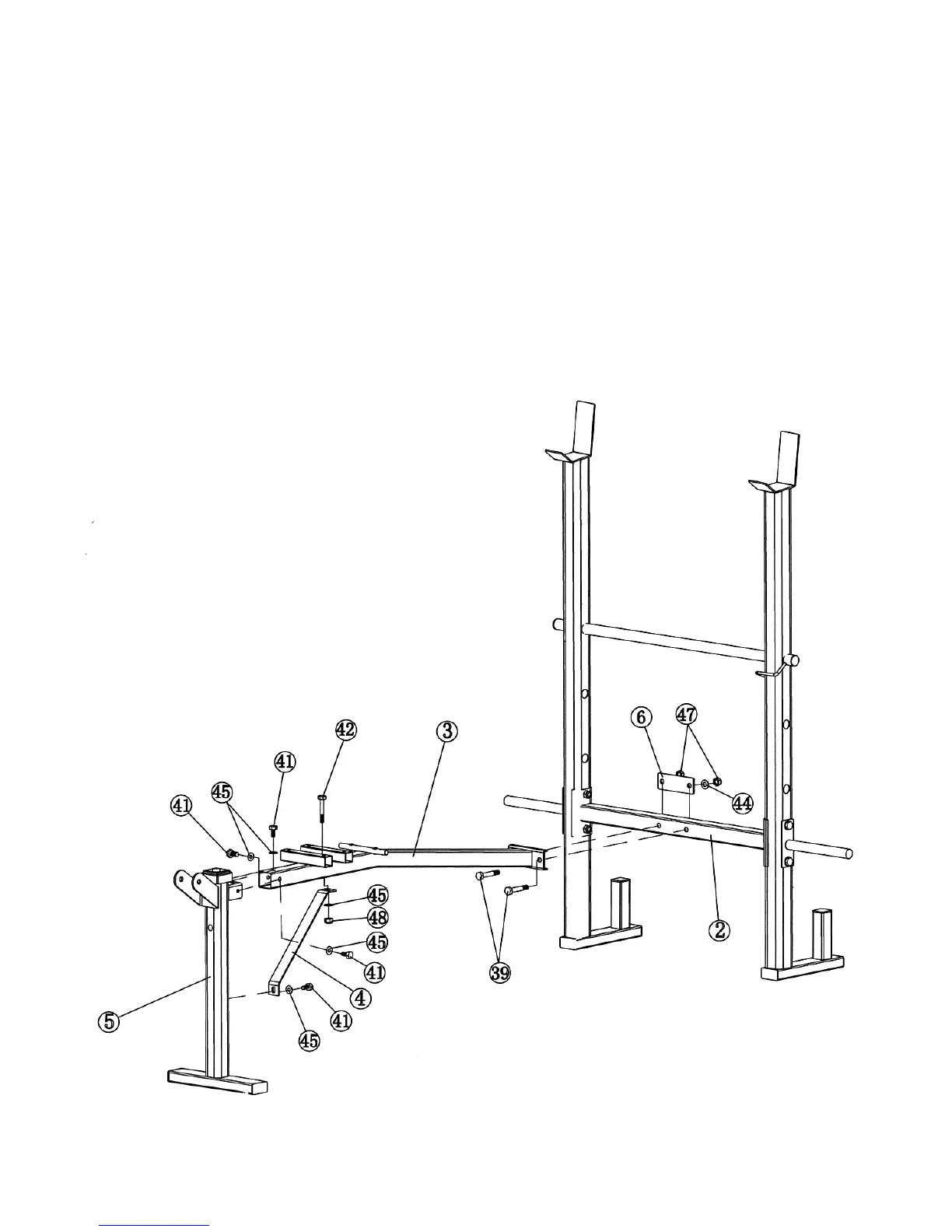

DIAGRAM 2
6
