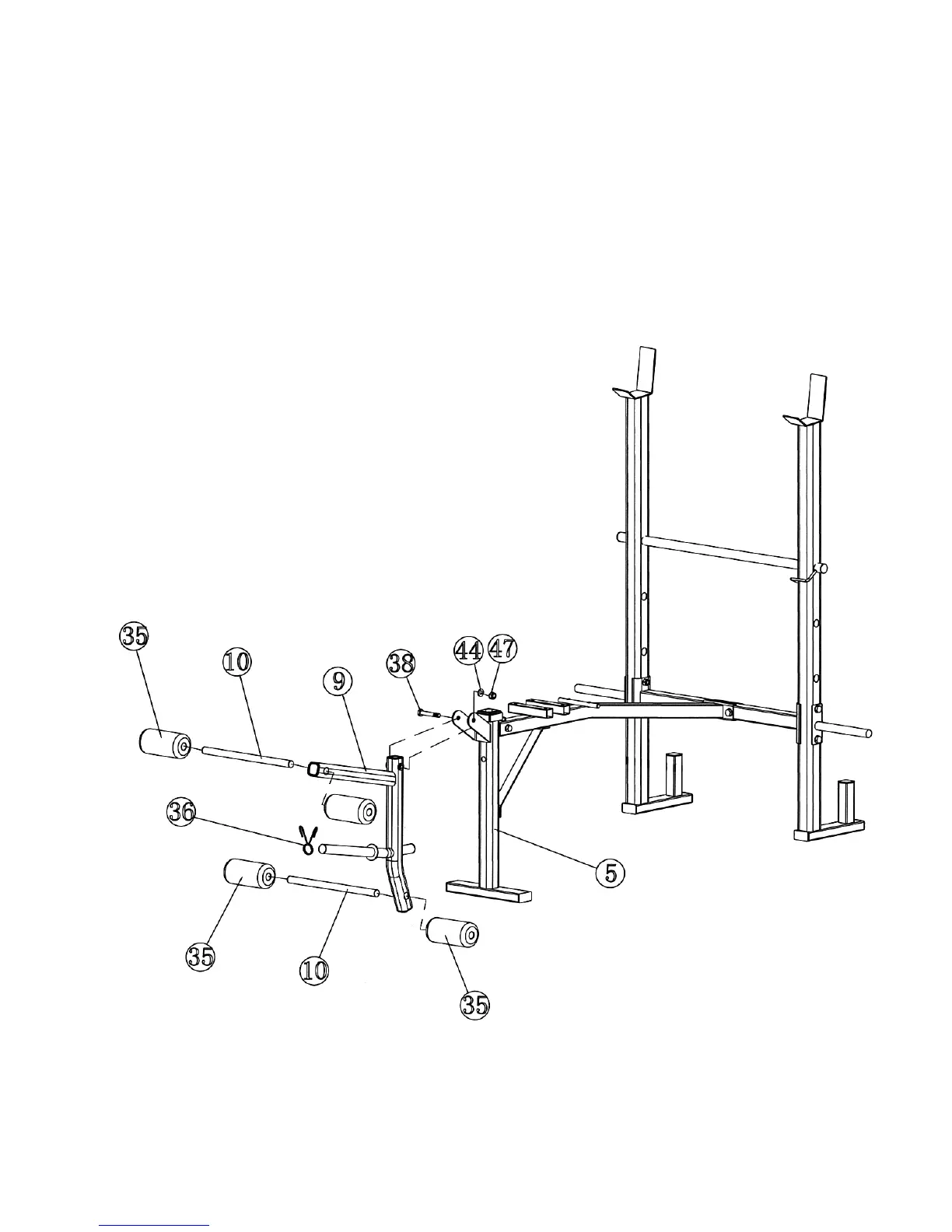

STEP 3 (See Diagram 3)
A.) Attach the Leg Developer (#9) to the open bracket on the Front Stabilizer (#5). Secure it
with one M10 x 2 ¾” Hex Bolt (#38), one Ø ¾” Washer (#44), and one M10 Aircraft Nut
(#47). Do not over tighten the Nut and Bolt. Make sure the Leg Developer is able
to swivel.
B.) Insert two Foam Tubes (#10) halfway through the holes on the Leg Developer. Push
four Foam Rolls (#35) onto the Tubes from both ends.
C.) Attach a Spring Clip (#36) onto the weight post on the Leg Developer.
DIAGRAM 3
7
