STEP 4 (See Diagram 4)
A.) Attach the Backrest Supports (#14) onto both ends of the Pivot on the Main Seat
Support (#3). Rest the other end against the Backrest Adjustment Bar (#8).
B.) Place the Backrest Board (#17) onto the Backrest Supports. Secure it with four M6 x 1
½” Hex Bolts (#43) and four ½” Washers (#46).
C.) Place the Seat Pad (#18) onto the bracket on the Main Seat Support (#3). Align the
holes and secure it with four M6 x 1 ¼” Hex Bolts (#27) and four ½” Washers (46).
D.) Attach the Arm Curl Pad (#19) to the Arm Curl Stand (#15). Secure it with two M8 x ¾”
Hex Bolts (#41) and two Ø 5/8” Washers (#45).
E.) Insert the Arm Curl Stand into the opening on the top of the Front Stabilizer (#5). Use a
Lock Knob (#37) to secure it at desired height.

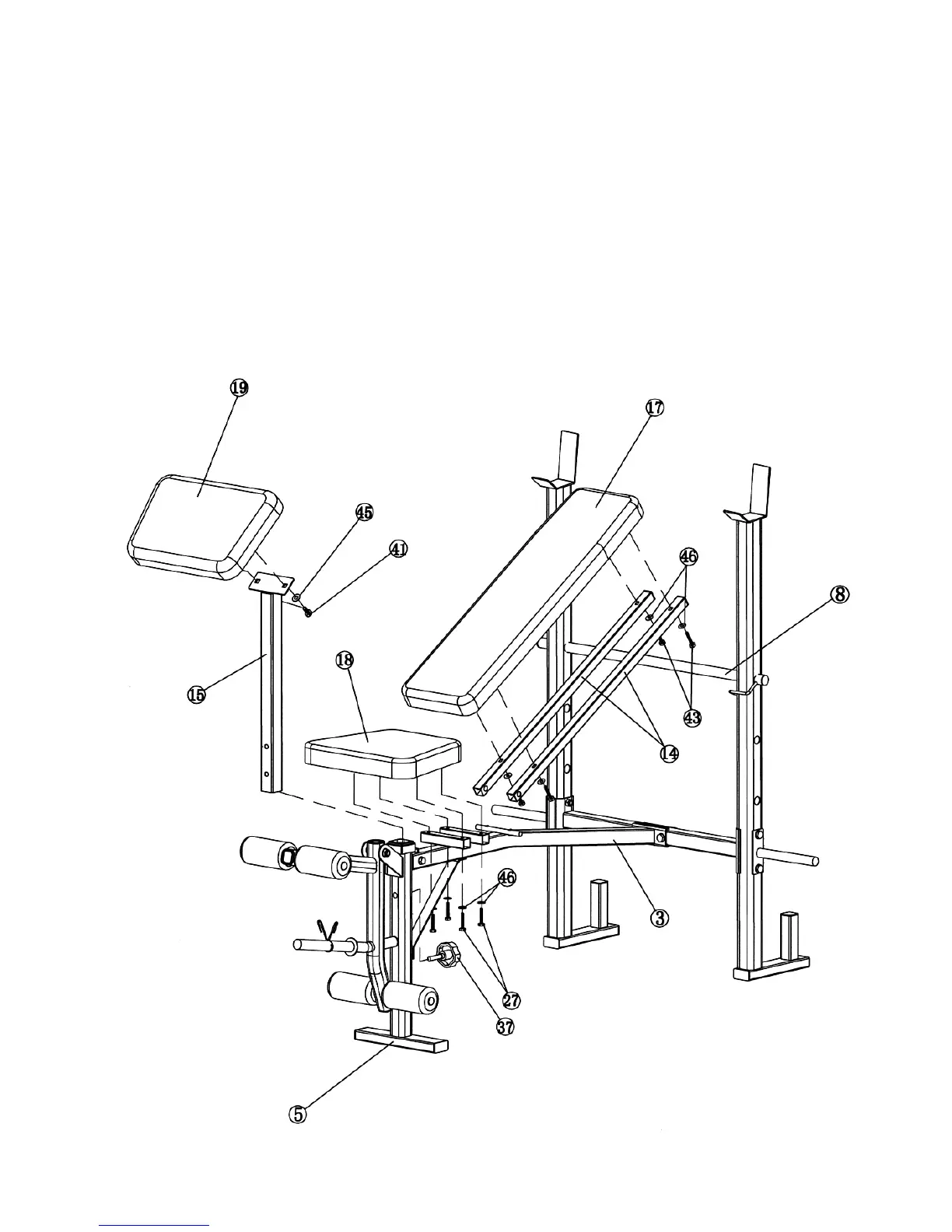

DIAGRAM 4
8
