STEP 3 (See Diagram 3)
A.) Attach the holes on the end of the Backrest Supports (#20) to the pivot on the Sliding
Block (#7). Attach the Backrest Board (#21) to the Backrest Supports. Secure it with
four M8 x 1 5/8” Allen Bolts (#55) and Ø5/8” Washers (#57).
B.) Attach the Seat Bracket (#8) to the pivot on the Sliding Block. Secure it with one M10 x 4
¾” Allen Bolt (#53), two Ø ¾” Washers (#56), and one M10 Aircraft Nut (#58).
C.) Place the Seat (#22) onto the Seat Bracket. Secure it with four M8 x 5/8” Allen Bolts
(#54) and Ø 5/8” Washers (#57).
D.) Insert a 4” L-shaped Pin (#60) into the selected hole on the Seat Bracket to obtain the
desired Seat inclined position.

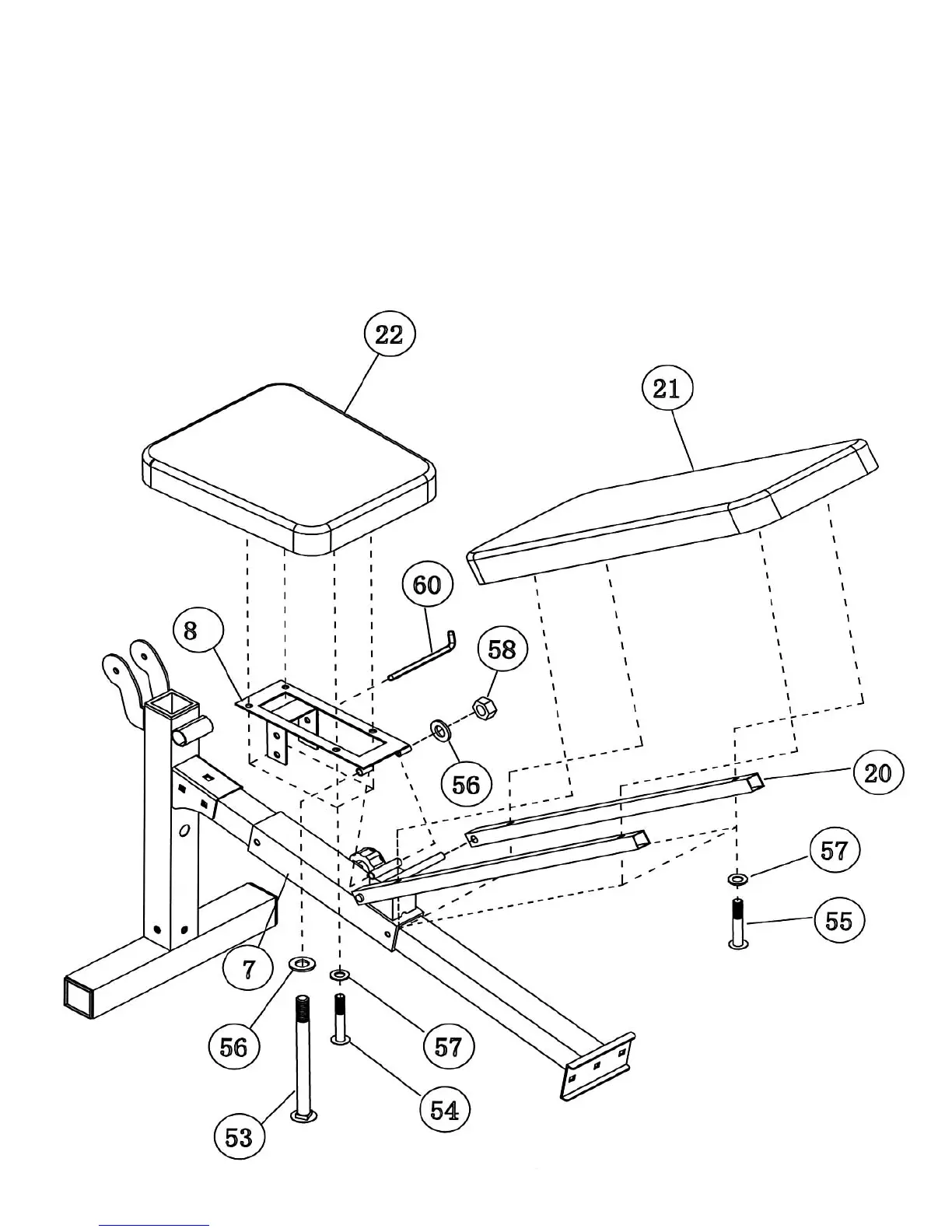

DIAGRAM 3
