STEP 4 (See Diagram 4)
A.) Attach the Leg Developer (#11) to the Leg Developer Holder (#9). Secure it with an Axle
(#36), two M10 x 5/8” Allen Bolts (#52) and two ∅ ¾” Washers (#56).
B.) Insert one Foam Tube (#24) halfway through the hole on the Leg Developer Holder.
Insert two Foam Tubes halfway through the holes on the Leg Developer. Push six Foam
Rolls (#30) onto the Tubes from both ends. Plug six Foam Roll End Caps (#38) into the
ends.
C.) Slide an Olympic Sleeve (#34) onto the weight post on the Leg Developer. Attach a
Spring Clip (#35) to the Sleeve.

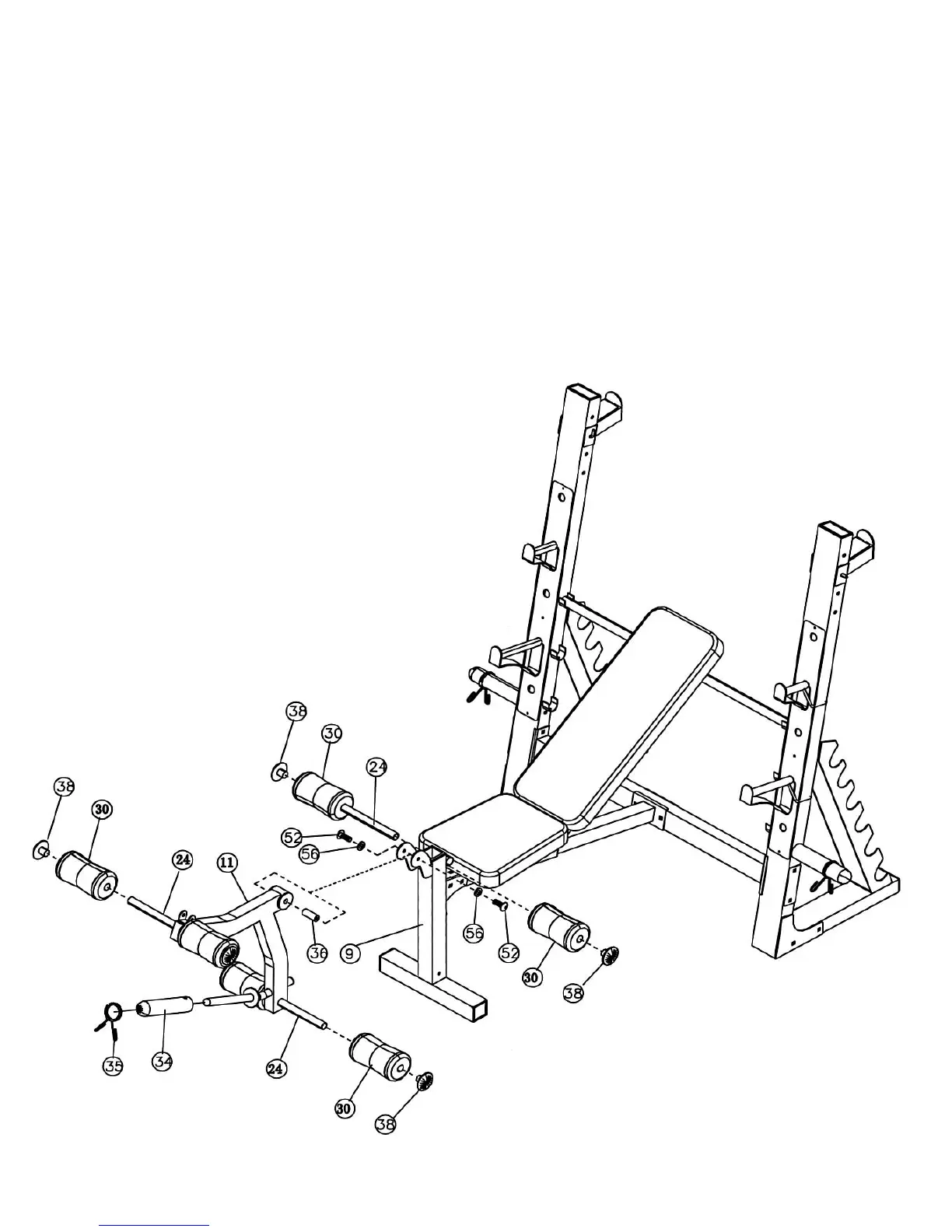

DIAGRAM 4
8
