6.0 VESTA CHARGER
6.1 System Components
Your Vesta Charger System consists of the following components:

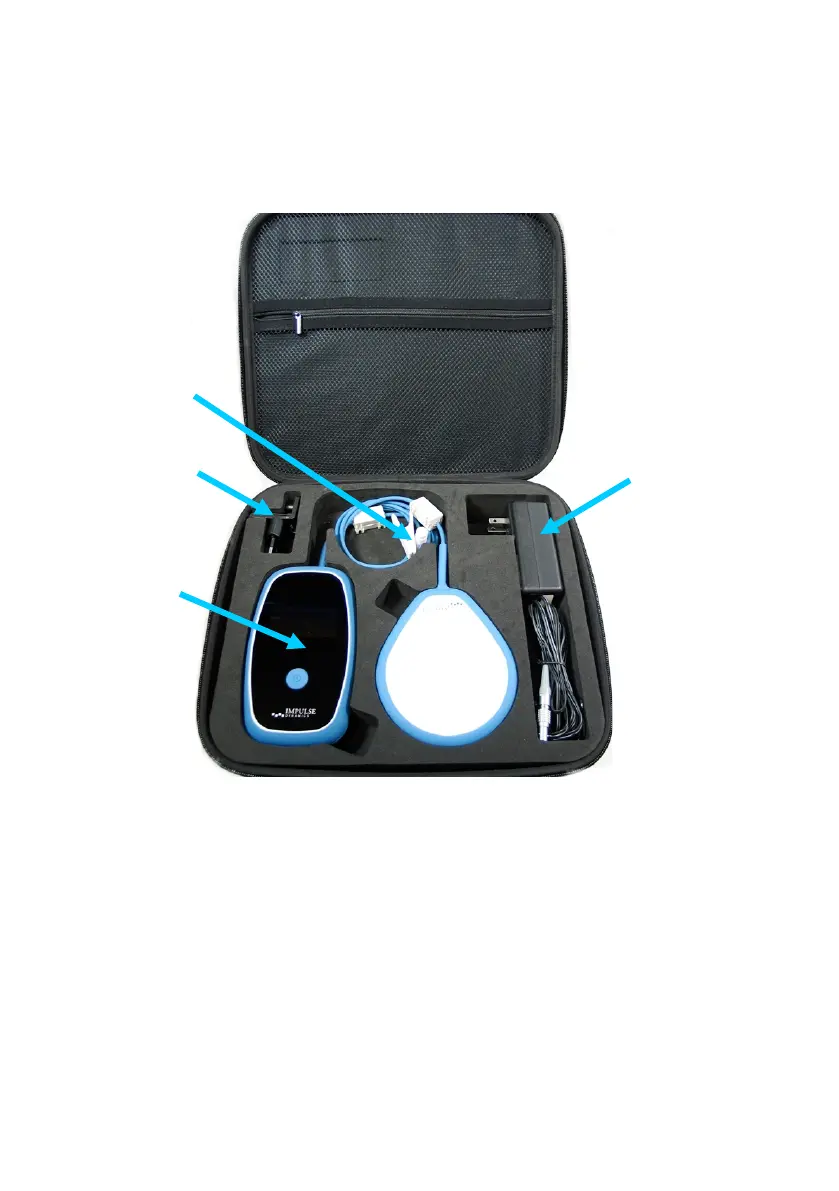

Figure 3: Vesta Charger System Components
 Vesta Charger (with attached charging wand and
charging wand cable clip) – used to charge your
OPTIMIZER Smart Mini IPG.
 AC Adapter – used to charge the internal battery of your
Vesta Charger.
 E.U. / U.S. Plug Adapters – plug adapters for the AC
Adapter, allowing the AC Adapter to be connected to wall
outlets in the E.U. and the U.S.
 Carrying Case – used to store and transport your Vesta
Charger System.
Carrying Case
AC Adapter with
attached U.S.
Plug Adapter
Charging
Wand
E.U. Plug
Adapter
Vesta
Charger
Charging Wand
C
able
C
lip
