Assembly

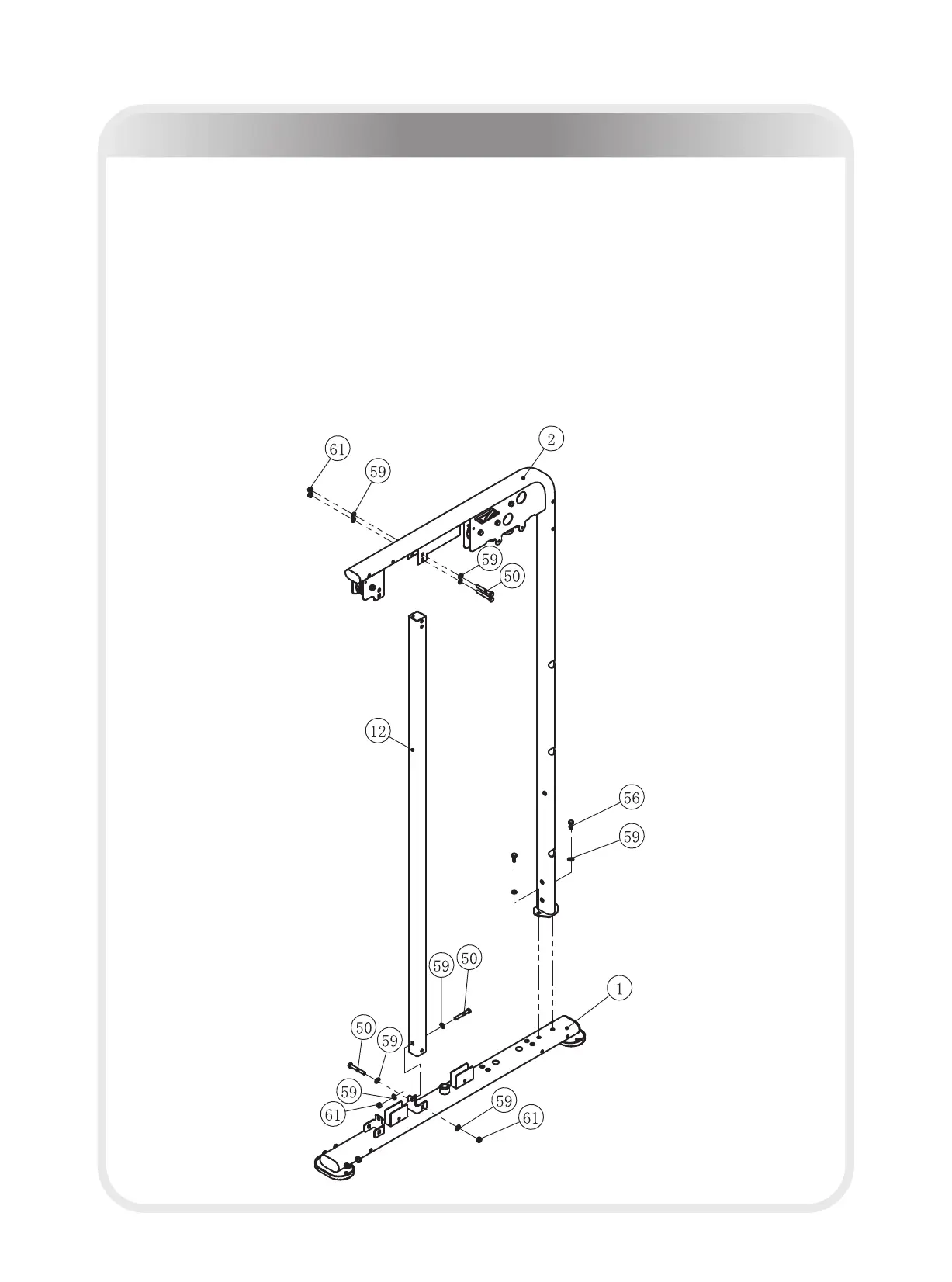

STEP 2
1. Attach the Right Standing Frame Ⅱ ASSY (#2) to the Foot Frame ASSY (#1) using:
two M10*25 HHB (#56) two Φ11*Φ20*2 Flat Washer (#59)
2. Attach the Smith Adjustable tube (#12) to the Right Standing Frame Ⅱ ASSY (#2)
and the Foot Frame ASSY (#1) using:
four M10*70 HHB (#50) eight Φ11*Φ20*2 Flat Washer (#59)
four M10 Nylon Lock Nut (#61)
Note: Hand tighten Bolts and Nylon Lock Nuts until machine is fully assembled.
