Assembly
STEP 3

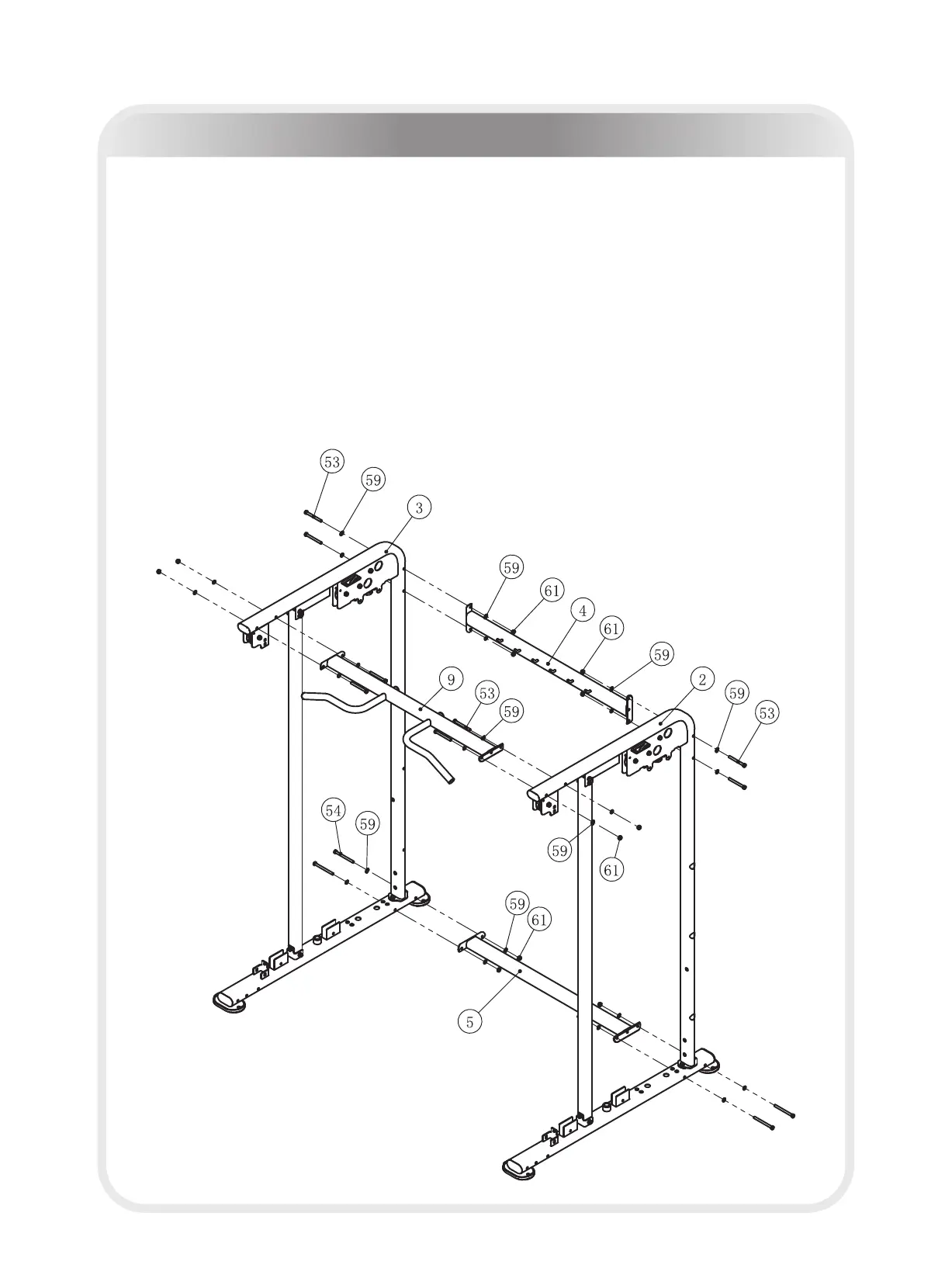

1. Attach the Handle Frame ASSY (#9) and the Upper Connection Frame (#4) to the
Right Standing Frame Ⅱ ASSY (#2) and the Left Standing Frame Ⅱ ASSY (#3) using:
eight M10*100 HHB (#53) sixteen Φ11*Φ20*2 Flat Washer (#59)
eight M10 Nylon Lock Nut (#61)
2. Attach the Connection Frame (#5) to the two Foot Frame ASSY (#1) using:
four M10*120 HHB (#54) eight Φ11*Φ20*2 Flat Washer (#59)
four M10 Nylon Lock Nut (#61)
Note: Hand tighten Bolts and Nylon Lock Nuts until machine is fully assembled.
To Next Page
