Assembly
STEP 4

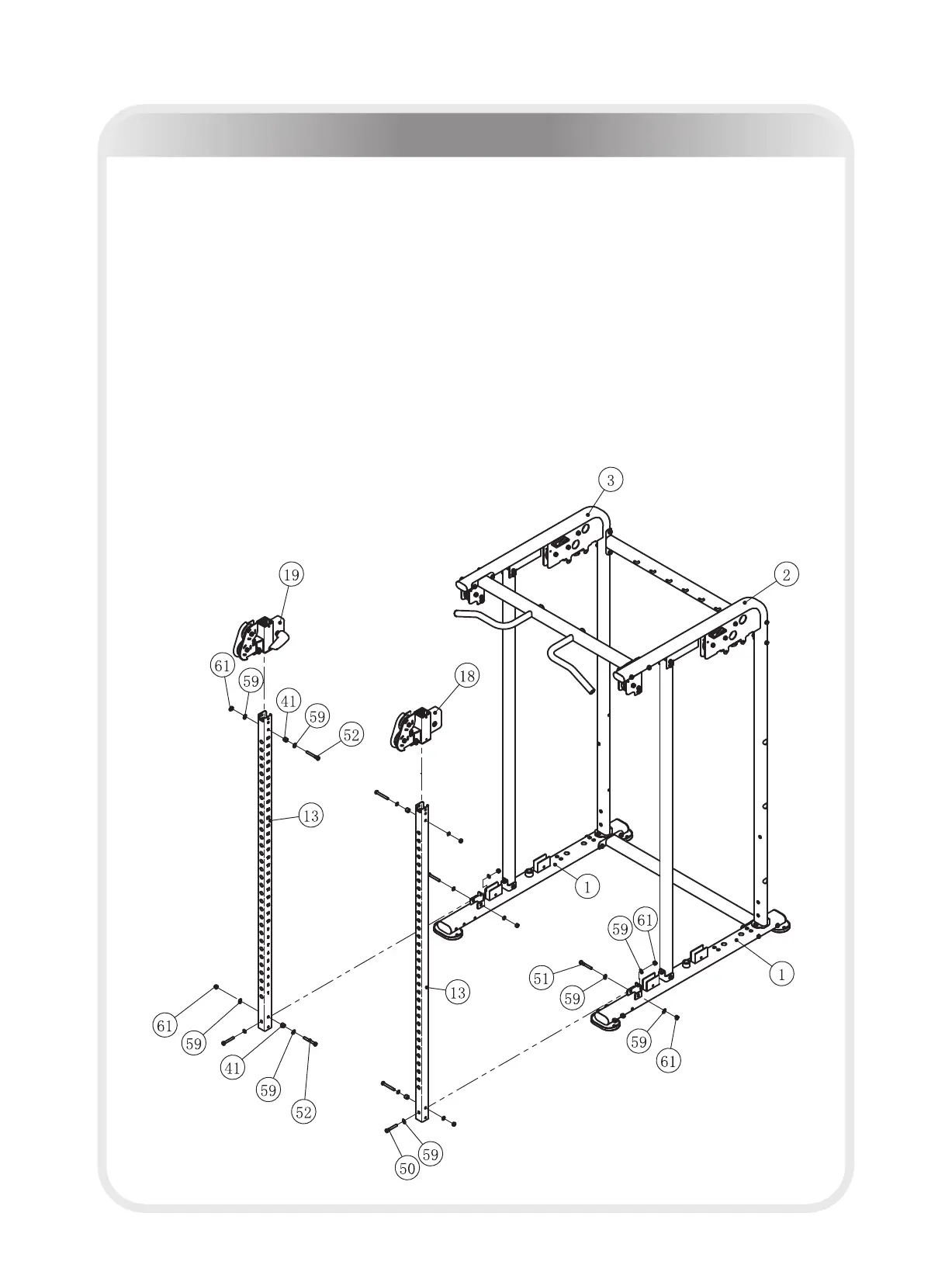

1. Attach the Right Pulley Frame ASSY (#18), the Left Pulley Frame ASSY (#19) to two
Adjustable Tube (#13).
2. Attach two Adjustable Tube (#13) to the Right Standing Frame Ⅱ ASSY (#2) and
the Left Standing Frame Ⅱ ASSY (#3) using:
four M10*80 HHB (#52) two M10*70 HHB (#50)
eight M10 Nylon Lock Nut (#61) sixteen Φ11*Φ20*2 Flat Washer (#59)
four Stop Nylon Sleeve (#41)
Note: Hand tighten Bolts and Nylon Lock Nuts until machine is fully assembled.
