Impulse ES2100 - Page 30

─ 30 ─
Assembly
STEP 5

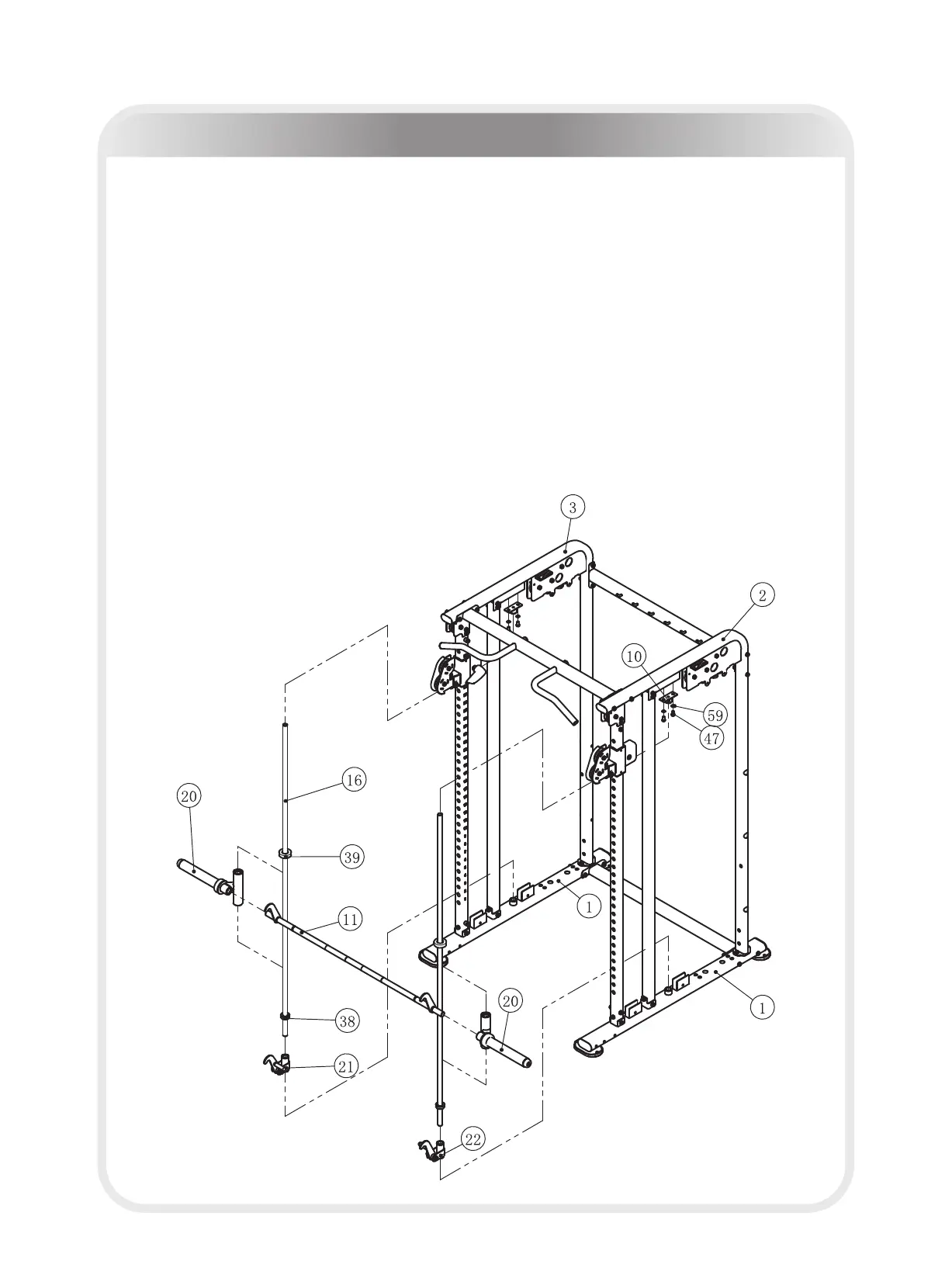

1. Attach two Sliding Barbell Frame ASSY (#20) to the Olympic Bar ASSY (#11).
2. Attach two Sliding Barbell Frame ASSY (#20), two Φ65*Φ35*20 Cushion (#39), two
Φ48*Φ26*15 Cushion (#38), Right Sliding Safety Frame ASSY (#21), Left Sliding
Safety Frame ASSY (#22) to two Φ25*2020 Guide Rod (#16).
3. Attach two Guide Bar Fixed Seat ASSY (#10) to two Φ25*2020 Guide Rod (#16).
4. Attach two Φ25*2020 Guide Rod (#16) and two Guide Bar Fixed Seat ASSY (#10)
to two Foot Frame ASSY (#1), the Right Standing Frame Ⅱ ASSY (#2) and the Left
Standing Frame Ⅱ ASSY (#3) using:
four M10*20 HHB (#47) four Φ11*Φ20*2 Flat Washer (#59)
Note: Hand tighten Bolts and Nylon Lock Nuts until machine is fully assembled.
