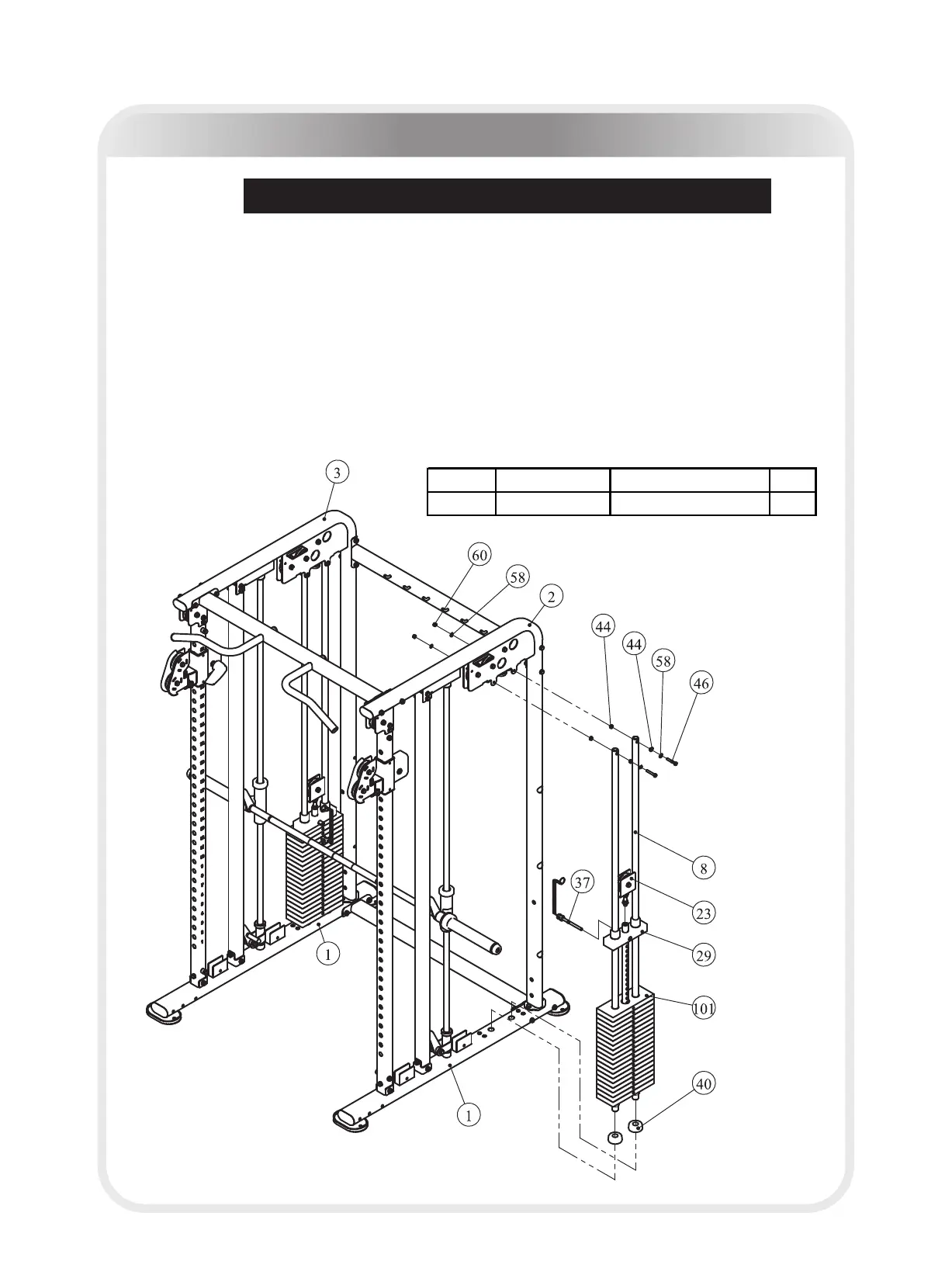

1. Attach four Φ25*1948 Guide Rod (#8), four Φ62*Φ25.2*25 Rubber Bumper (#40),
thirty-eight 10lbs Weight Plate (#101), two Top Plate (#29) to the Right Standing
Frame Ⅱ ASSY (#2), the Left Standing Frame Ⅱ ASSY (#3) and the Foot Frame
ASSY (#1) using:
four M8*50 HHB(#46) eight Φ11*Φ20*2 Flat Washer (#58)
four M8 Nylon Lock Nut (#60) eight Stop Nylon Sleeve Φ16*Φ8.5*6 (#44)
2. Attach two Pulley Frame ASSY (#23) to the Top Plate (#29).
3. Attach two Selector Pin W/Coil (#37) to the Weight Plate.
Note: Hand tighten Bolts and Nylon Lock Nuts until machine is fully assembled.
─ 32 ─
Assembly
STEP 6
Here is the assembly instruction for 200LBS Weights !
Grade No.
PartNo. Description QTY
101 PLWS1000V1 10LBS Weight Plate 38
To Next Page
