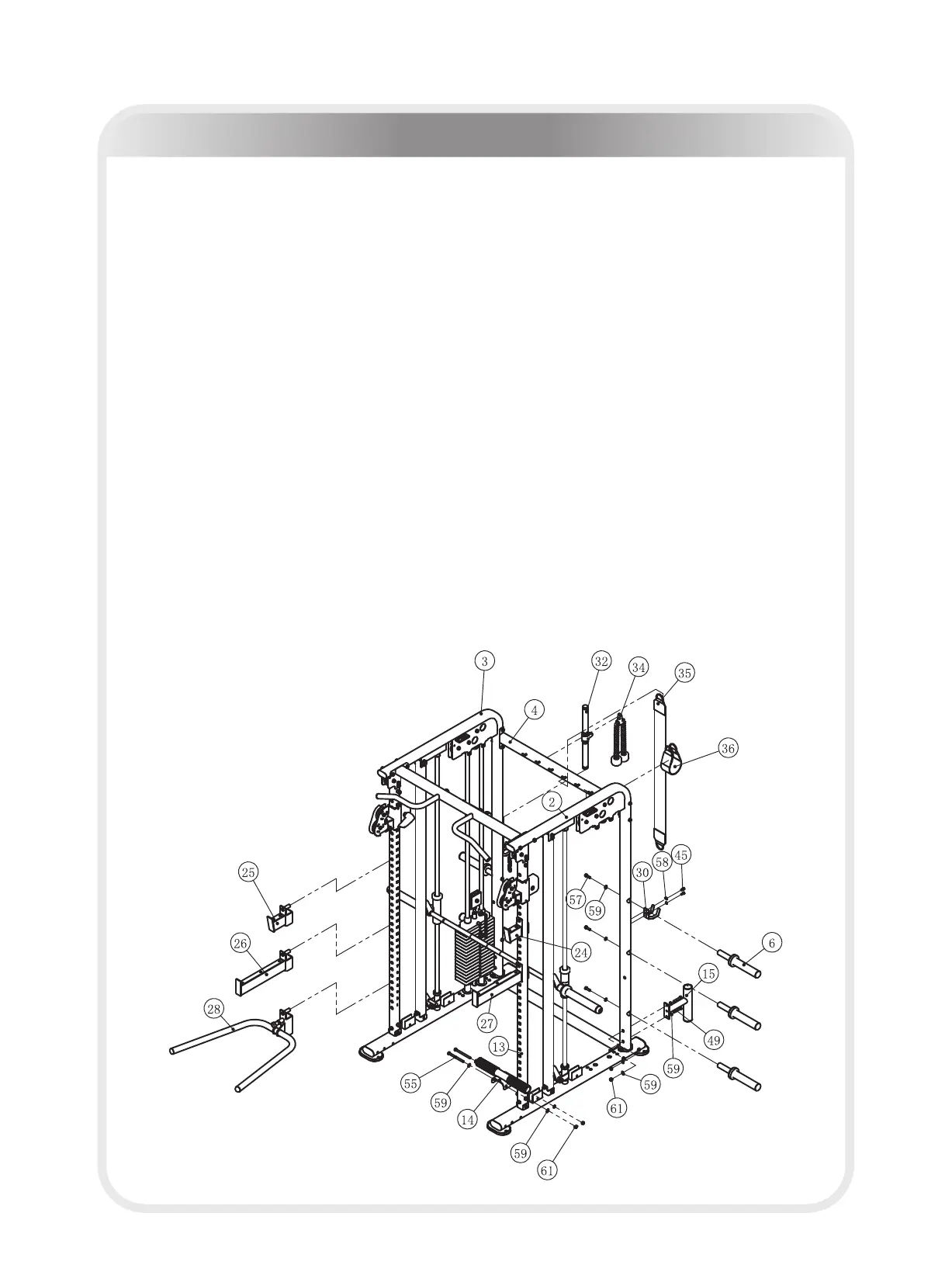

1. Attach the Pedal Frame ASSY (#14) to the Foot Frame ASSY (#1) using:
two M10*130 HHB (#55) four Φ11*Φ20*2 Flat Washer (#59)
two M10 Nylon Lock Nut (#61)
2. Attach the Olympic Bar Positioned Frame ASSY (#15) to the Right Standing Frame Ⅱ
ASSY (#2) using:
two M10*60 HHB (#49) four Φ11*Φ20*2 Flat Washer (#59)
two M10 Nylon Lock Nut (#61)
3. Attach six Barbell Frame ASSY (#6) to Right Standing Frame Ⅱ ASSY (#2) and left
Standing Frame Ⅱ ASSY (#3), using:
six M10*35 HHB (#57) six Φ11*Φ20*2 Flat Washer (#59)
4. Attach two Hook (#30)to the Right Standing Frame Ⅱ ASSY (#2) and the Left
Standing Frame Ⅱ ASSY (#3) using:
four M8*20 HHB (#45) four Φ9*Φ16*1.6 Flat Washer (#58)
5. Attach the Left Safety Frame ASSY (#26), Right Safety Frame ASSY (#27), Parallel
Bars Frame ASSY (#28), Right Hook Frame ASSY (#24), Left Hook Frame ASSY
(#25) to the Adjustable tube (#13).
6. Attach the Row Lat Bar (#32), Gear Hook (#34), Retractable Strap (#35) to the
Upper Connection Frame (#4).
Note: Wrench Tighten All Bolts and Nylon Lock Nuts.
─ 33 ─
Assembly
STEP 7
To Next Page
