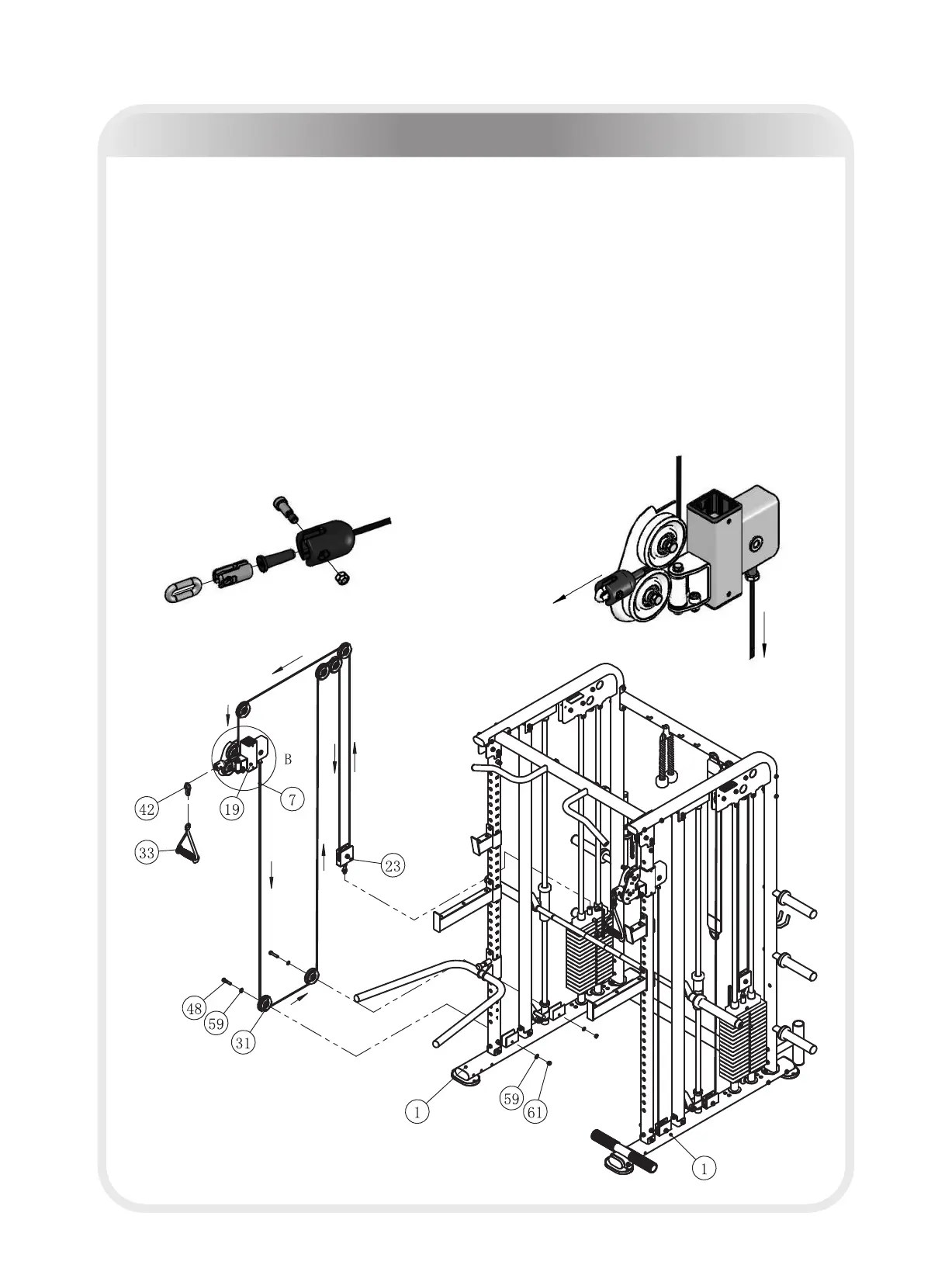

1. Disassemble the Cable ASSY (#7) according to Figure A, Install the cable (#1) in the
direction of arrow as shown, using both:
two M10*50 SHCS (#48) two 3.5" Pulley (#31)
four Φ11*Φ20*2 Flat Washer (#59) two M10 Nylon Lock Nut (#61)
After the cable is installed, Assemble it according to Figure A.
2. Attach two D-Strap (#33) to two Cable ASSY (#7), using:
two Gear Hook (#42)
Note: Wrench Tighten All Bolts and Nylon Lock Nuts.
─ 34 ─
Assembly
STEP 8
A B
Start
end
To Next Page
