Assembly
STEP 9

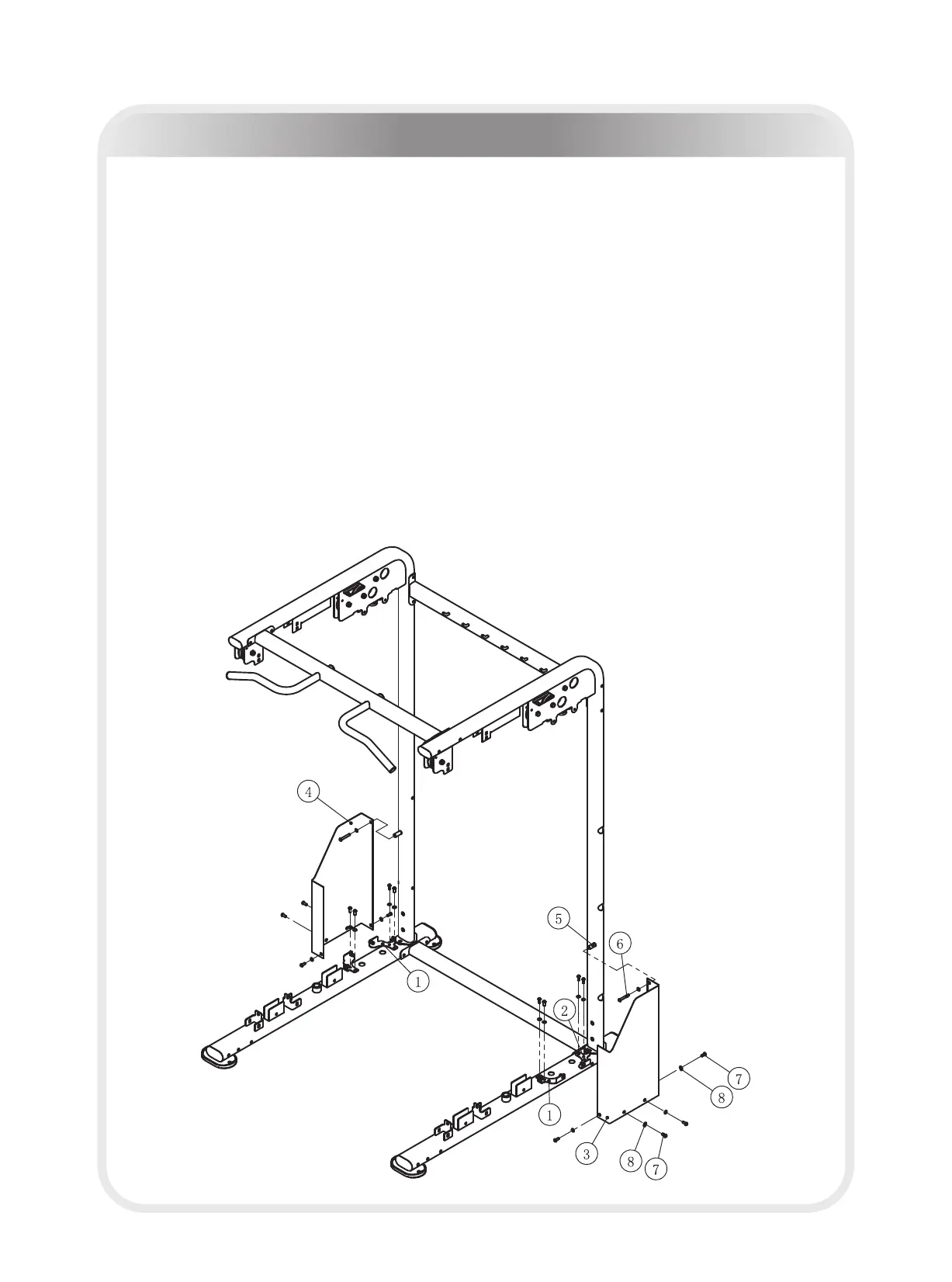

Here is the assembly instruction for Short Shroud.
1. Attach two Short Shroud Plate Ⅰ (#1) and two Short Shroud Plate Ⅱ (#2) to two
Foot Frame ASSY using:
eight M8*20 HHB (#7) eight Φ9*Φ16*1.6 Flat Washer (#8)
2. Attach the right Short Shroud (#3) to Short Shroud Plate Ⅰ (#1) and Short Shroud
Plate Ⅱ (#2) using:
four M8*20 HHB (#7) five Φ9*Φ16*1.6 Flat Washer (#8)
one M8*55 HHB (#6) one Φ15*Φ10.5*34.5 small casing (#5)
3. Attach the left Short Shroud (#3) to Short Shroud Plate Ⅰ (#1) and Short Shroud
Plate Ⅱ (#2) using:
four M8*20 HHB (#7) five Φ9*Φ16*1.6 Flat Washer (#8)
one M8*55 HHB (#6) one Φ15*Φ10.5*34.5 small casing (#5)
