Impulse ES2100 - Page 36

─ 36 ─
Assembly
STEP 9

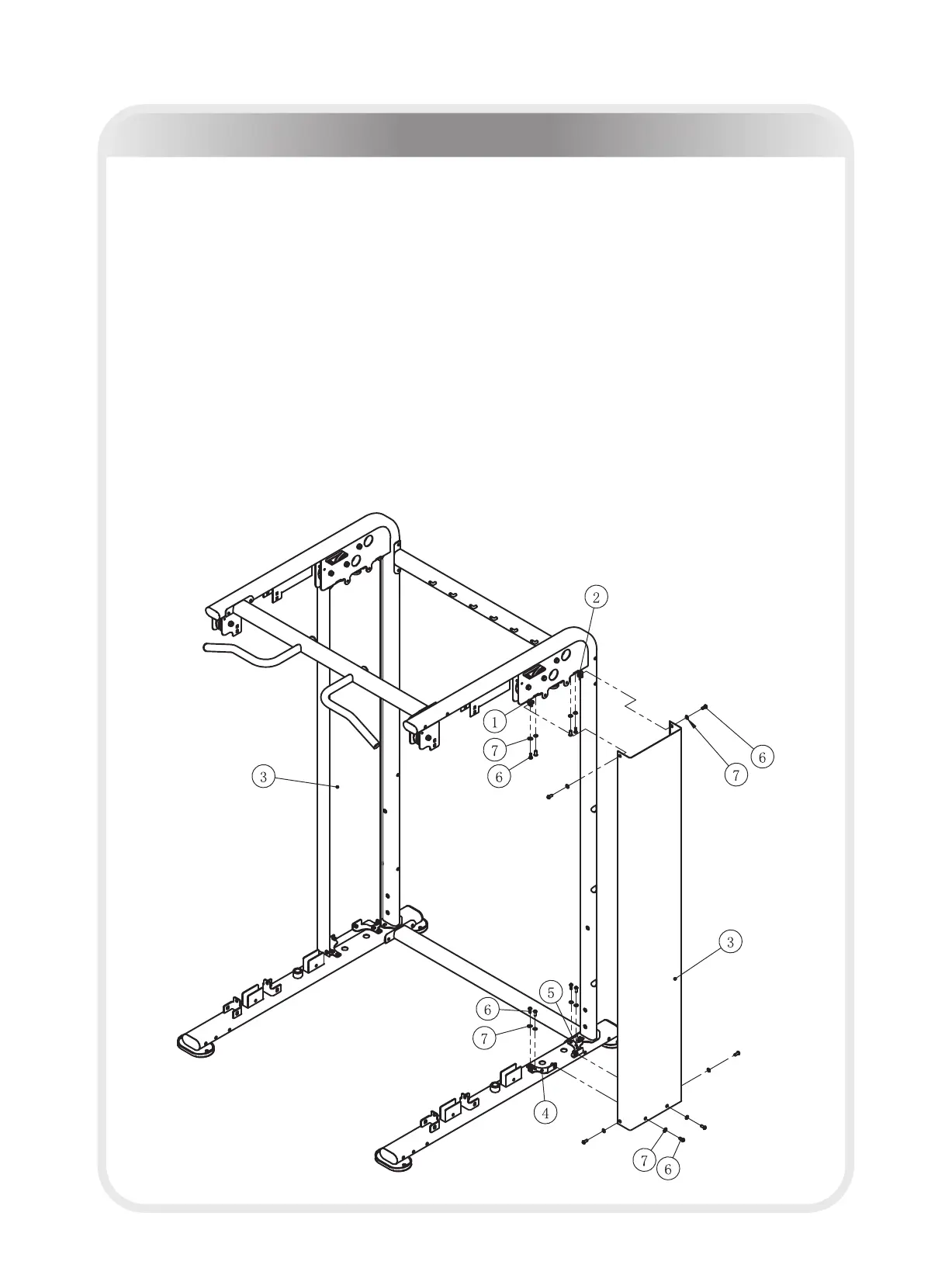

Here is the assembly instruction for half long Shroud.
1. Attach two half Shroud Plate Ⅰ (#1) and two half Shroud Plate Ⅱ (#2) to the Right
Standing Frame Ⅱ ASSY and the Left Standing Frame Ⅱ ASSY using:
eight M8*20 HHB (#6) eight Φ9*Φ16*1.6 Flat Washer (#7)
2. Attach two Short Shroud Plate Ⅰ (#4) and two Short Shroud Plate Ⅱ (#5) to two
Foot Frame ASSY using:
eight M8*20 HHB (#6) eight Φ9*Φ16*1.6 Flat Washer (#7)
3. Attach two half long Shroud (#3) to Short Shroud Plate Ⅰ (#4) and Short Shroud
Plate Ⅱ (#5) using:
twelve M8*20 HHB (#6) twelve Φ9*Φ16*1.6 Flat Washer (#7)
