Assembly
STEP 9

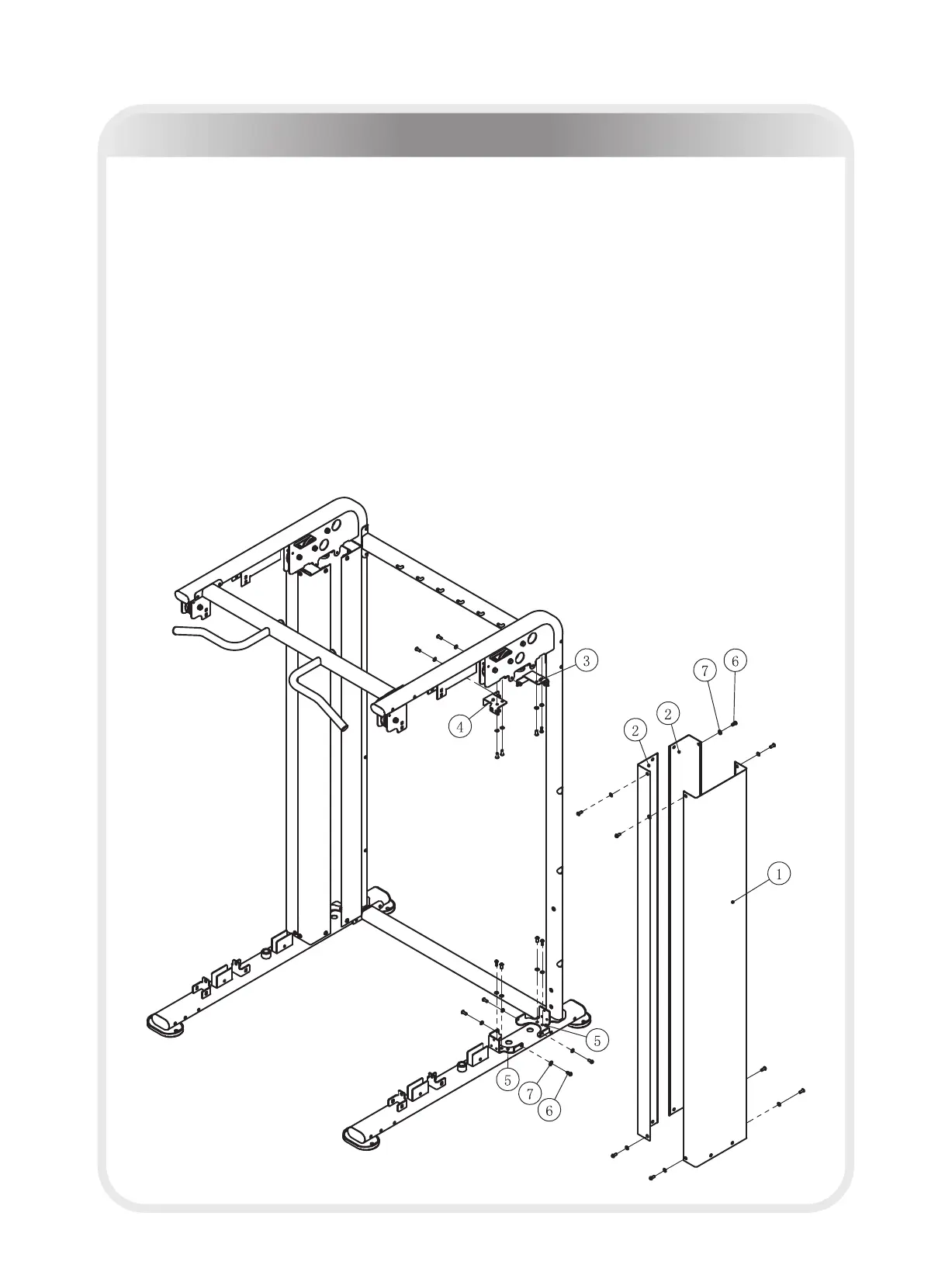

Here is the assembly instruction for long Shroud.
1. Attach two front Shroud Plate Ⅰ (#3) and two front Shroud Plate Ⅱ (#4) to the
Right Standing Frame Ⅱ ASSY and the Left Standing Frame Ⅱ ASSY using:
eight M8*20 HHB (#6) eight Φ9*Φ16*1.6 Flat Washer (#7)
2. Attach four Mounted Plate (#5) to two Foot Frame ASSY using:
eight M8*20 HHB (#6) eight Φ9*Φ16*1.6 Flat Washer (#7)
3. Attach two half long Shroud (#1) to two Mounted Plate (#5) using:
twelve M8*20 HHB (#6) twelve Φ9*Φ16*1.6 Flat Washer (#7)
4. Attach four inside Shroud (#2) to two Mounted Plate (#5) using:
sixteen M8*20 HHB (#6) sixteen Φ9*Φ16*1.6 Flat Washer (#7)
