─ 16 ─
Leg Extension / Leg Curl Assembly

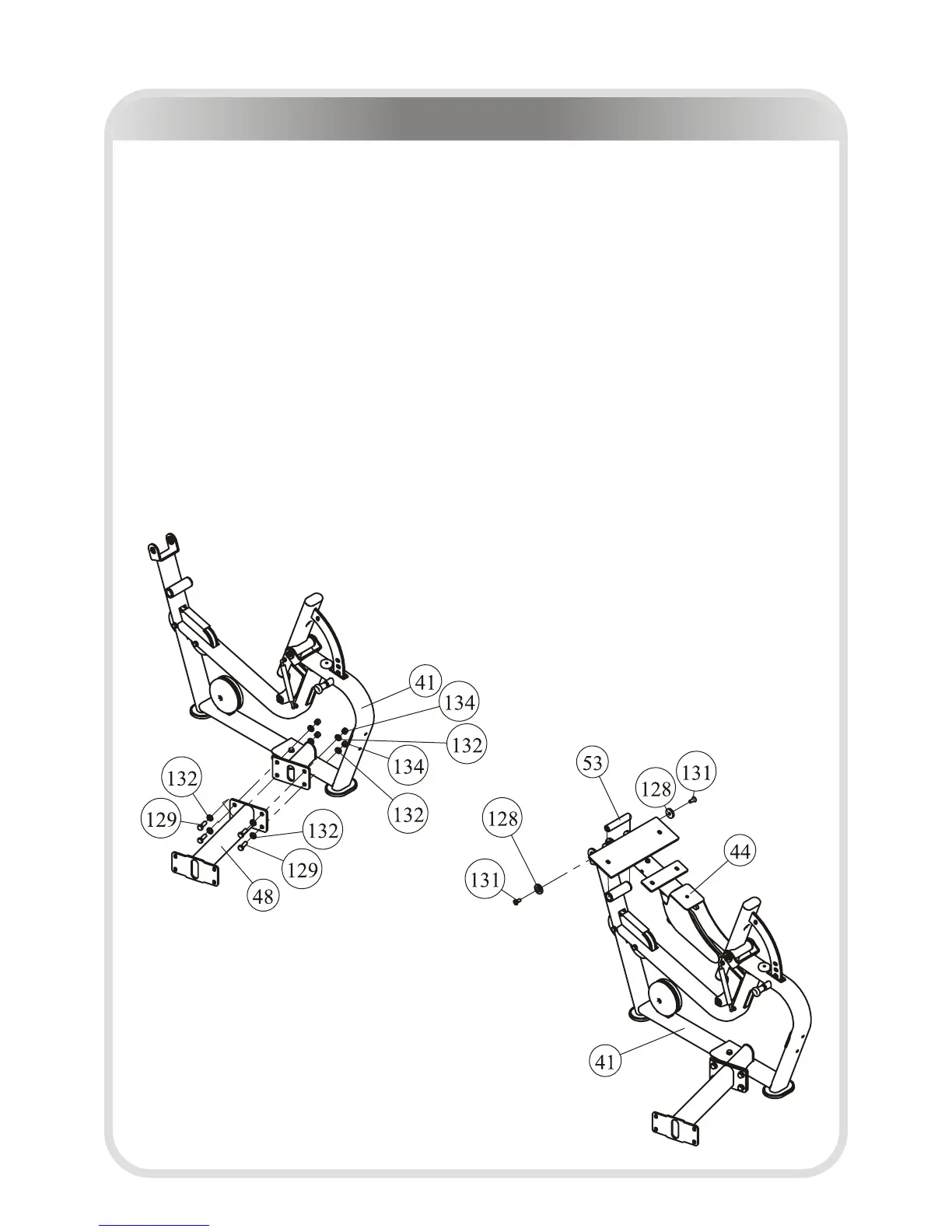

Attach the Junction Frame (#48) to Main Frame And Back Pad Frame ASSY (#41),
using:
● four M12*35 Hex Head Bolt (#129)
● four M12 Nylon Lock Nut (#134)
● eight Φ13*Φ24*1.5 Flat Washer (#132)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
Attach the Seat Pad Frame ASSY (#44) to Main Frame And Back Pad Frame ASSY
(#41), using:
● two M10*25 Flat Head Cap Screw (#131)
● two End Cap (#128)
● one Φ25.4*120*M10 Shaft (#53)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
STEP 1
STEP 1
STEP 2
STEP 2
To Next Page
