Lat Pulldown / Vertical Row Assembly
─ 62 ─

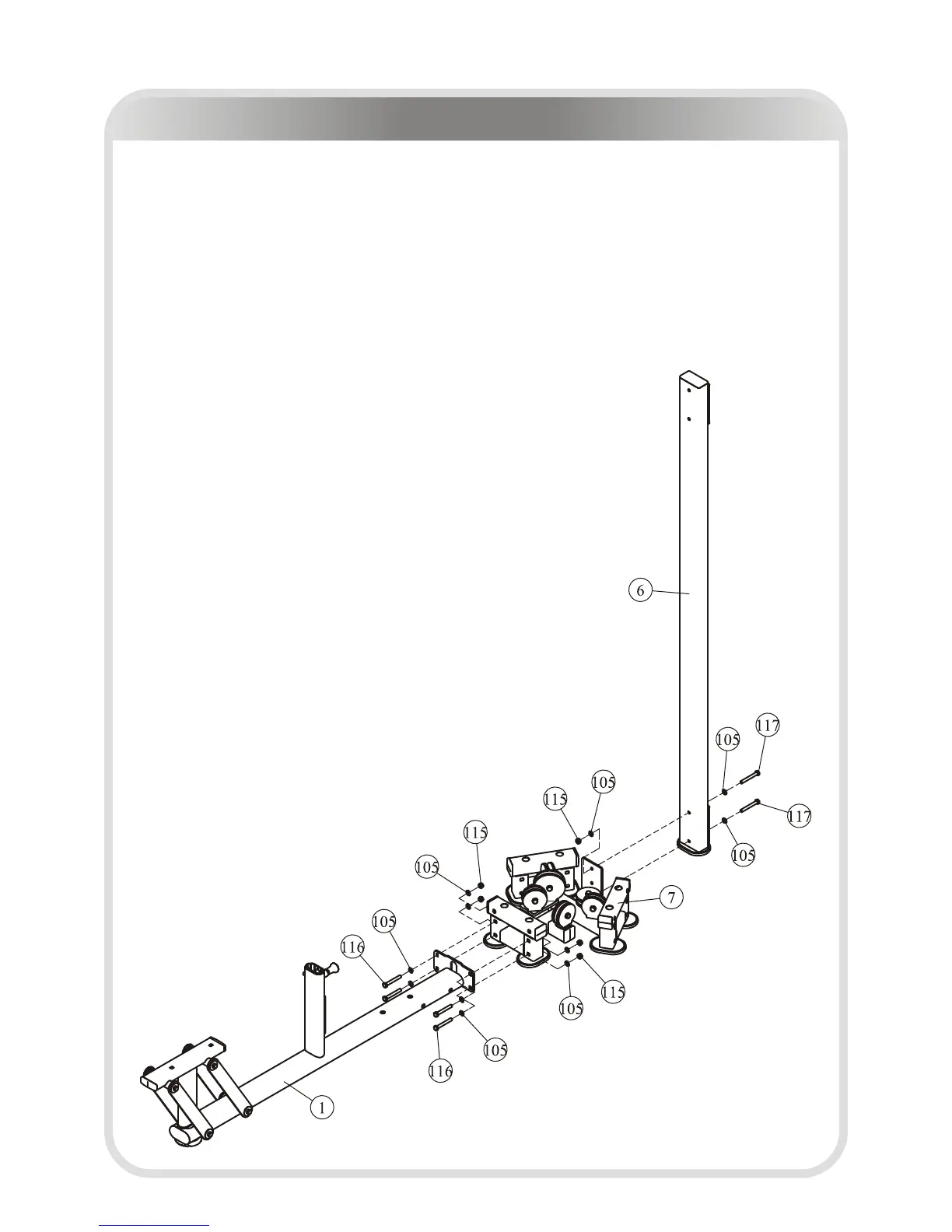

1. Attach the Bottom Frame II ASSY (#1) to the Middle Frame II ASSY (#7) using:
● four M10*75 Hex Head Bolt (#116)
● eight Φ11*Φ20*2 Flat Washer (#105)
● four M10 Nylon Lock Nut (#115)
2. Attach the Back Frame ASSY (#6) to the Middle Frame II ASSY (#7) using:
● two M10*80 Hex Head Bolt (#117)
● three Φ11*Φ20*2 Flat Washer (#105)
● one M10 Nylon Lock Nut (#115)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
