Impulse ES3000 - Assembly

Multi Press Assembly
─ 38 ─

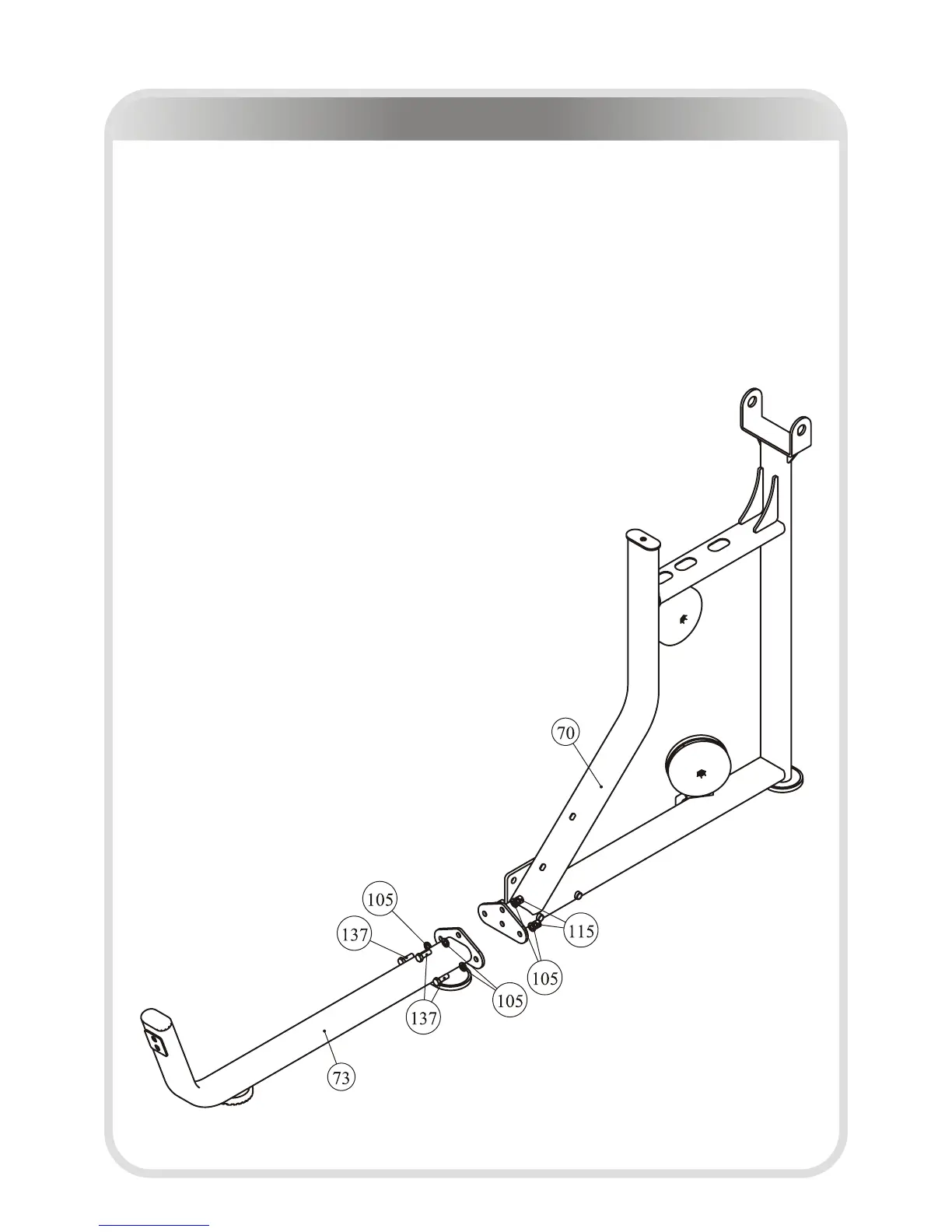

Attach the Bace, Main Frame ASSY (#73) to the Main Frame II ASSY (#70) using:
● three M10*30 Hex Head Bolt (#137)
● six Φ11*Φ20*2 Flat Washer (#105)
● three M10 Nylon Lock Nut (#115)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
STEP 1
