Impulse ES3000 User Manual

─ 21 ─
STEP 7

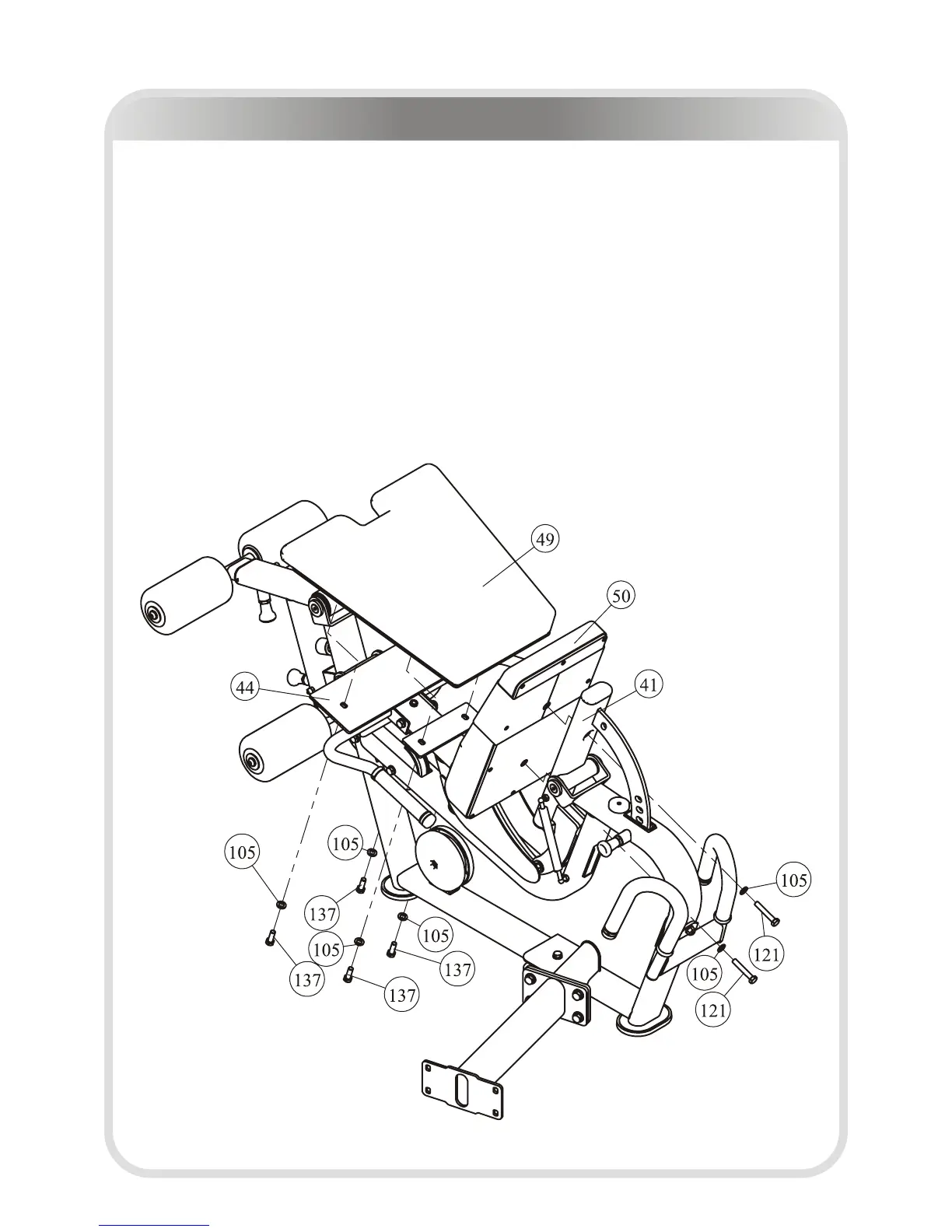

1. Attach Seat Pad (#49) to Seat Pad Frame ASSY (#44), using:
● four M10*30 Hex Head Bolt (#137)
● four Φ11*Φ20*2 Flat Washer (#105)
2. Attach Back Pad (#50) to Main Frame And Back Pad Frame ASSY (#41), using:
● two M10*60 Hex Head Bolt (#121)
● two Φ11*Φ20*2 Flat Washer (#105)
Note: Wrench Tighten Bolts and Nylon Lock Nuts.
