Impulse ES3000 - Exploded View and Parts List

─ 46 ─

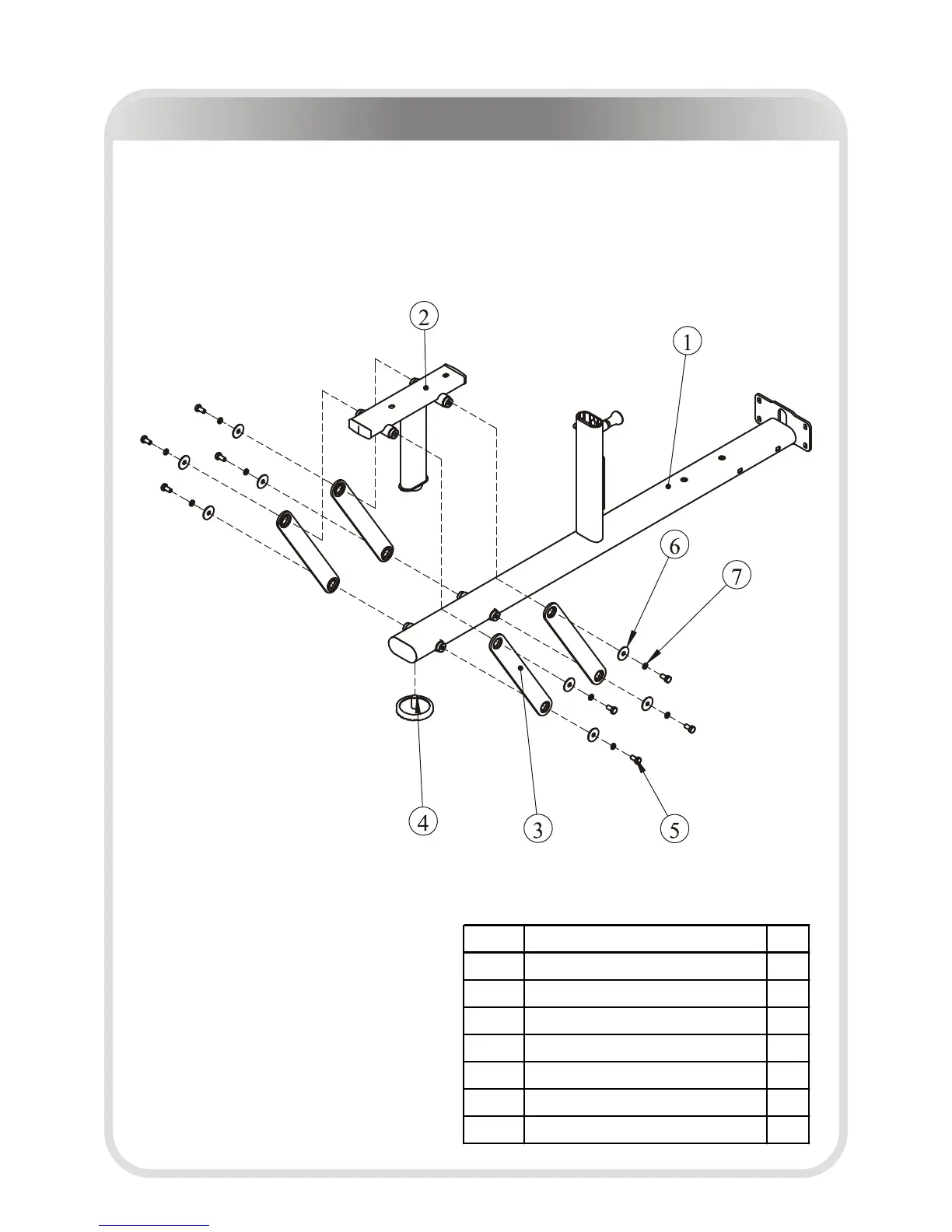

Bottom Frame II ASSY
Lat Pulldown / Vertical Row Exploded View and Parts List
ITEM NO.
Description QTY
1 Bottom Frame Ⅰ ASSY 1
2 Seat Frame ASSY 1
3 Plate ASSY 4
4 Foot Plate ASSY 1
5 Hex Head Bolt M10*20 8
6 Flat Washer Φ11*Φ38*2 8
7 Spring Washer Φ10 8
