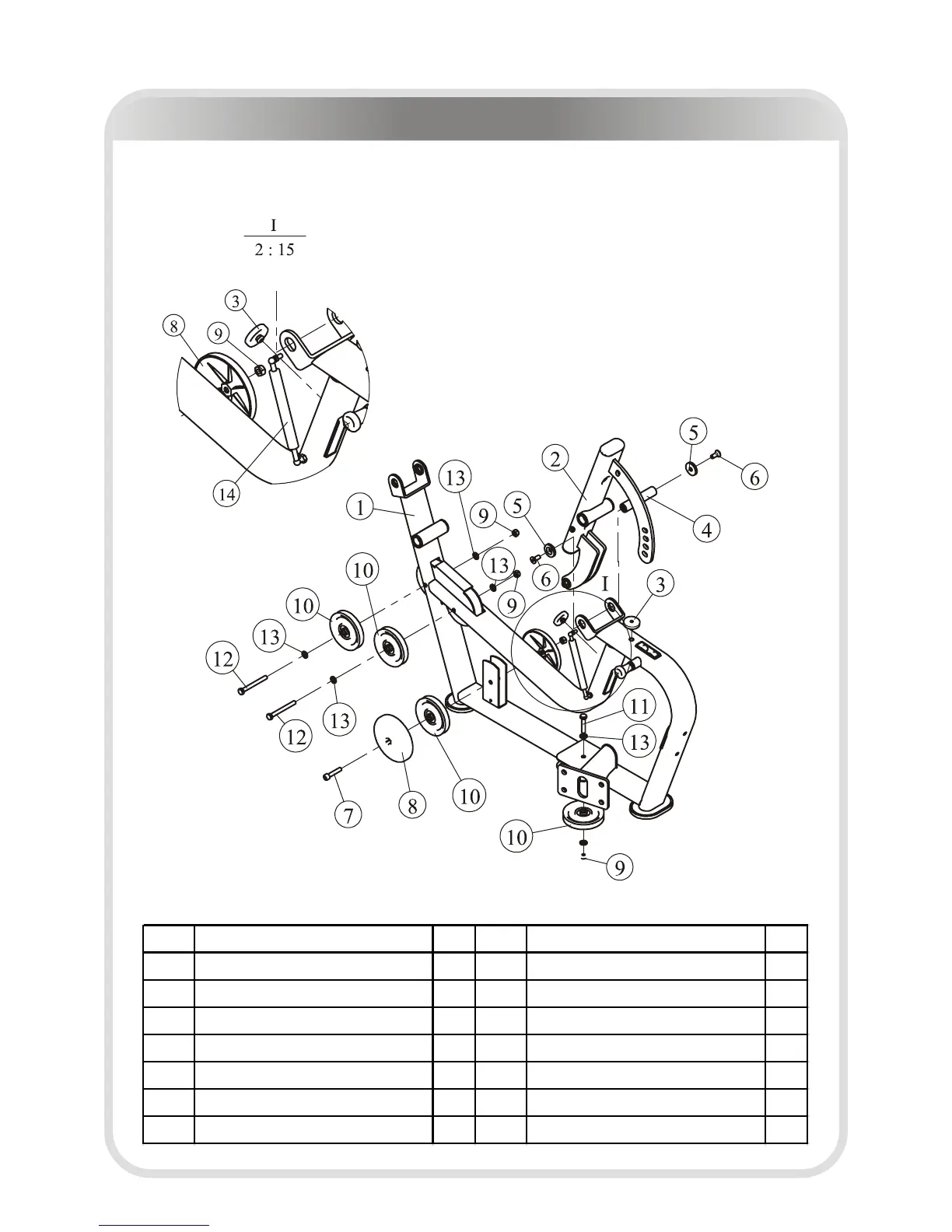

Main Frame And Back Pad Frame ASSY

ITEM NO.

Description QTY

ITEM NO.

Description QTY

1 Main Frame ASSY 1 8 Cover for 4.5" Pulley 2

2 Back Pad Frame ASSY 1 9 Nylon Lock Nut M10 4

3 Cushion 2 10 4.5" Pulley 4

4 Shaft Φ25.4*120 1 11 Hex Head Bolt M10*50 1

5 End Cap Φ38*Φ11*6 2 12 Hex Head Bolt M10*95 2

6 Flat Head Cap Screw M10*25 2 13 Flat Washer Φ11*Φ20*2 6

7 Socket Head Cap Screw M10*50 1 14 Gas Spring 1

Leg Extension / Leg Curl Exploded View and Parts List
