─ 16 ─

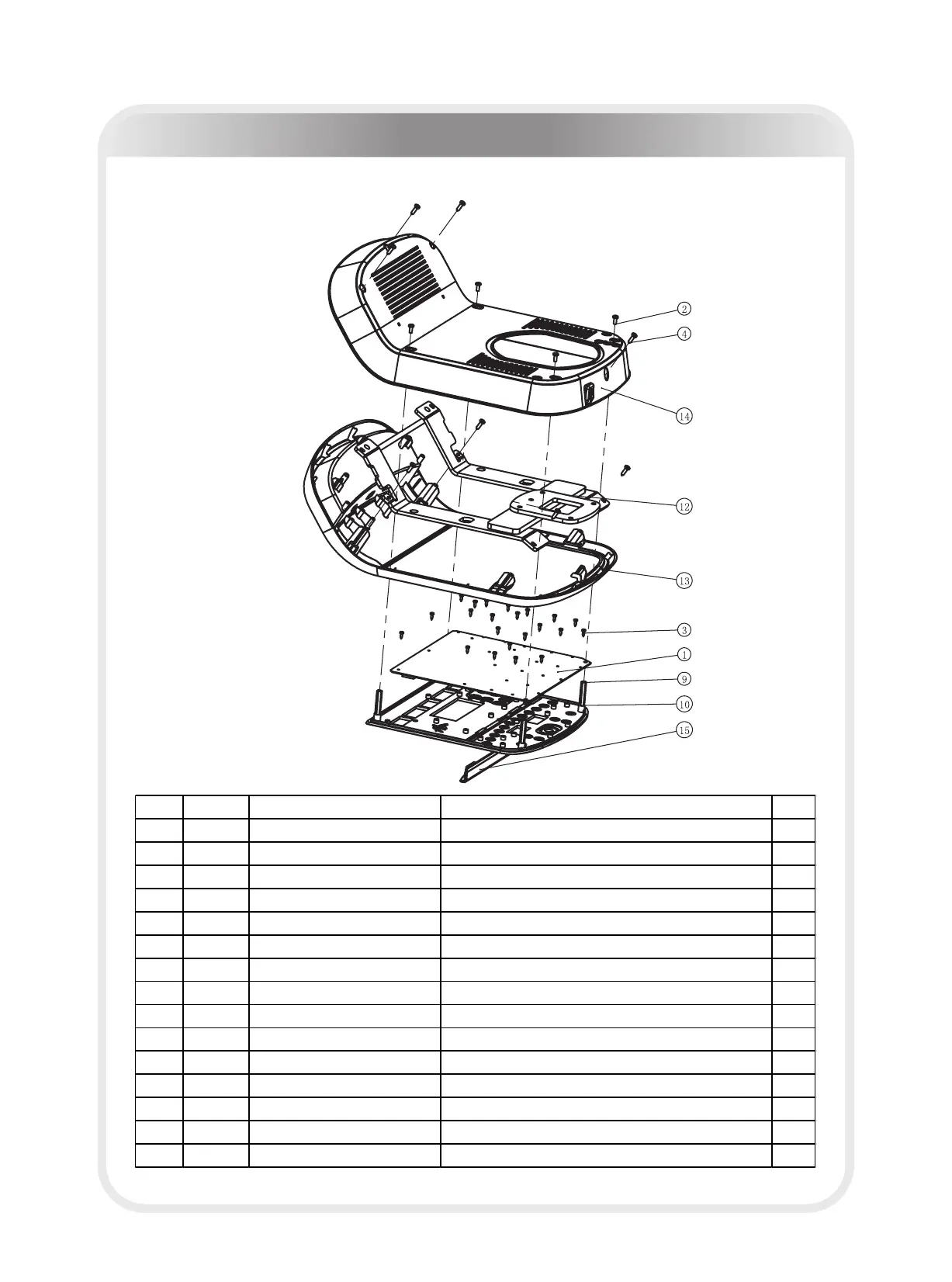

Parts List and Exploded View

Console Component

Item No.

Grade No. Part No. Description QTY

1 7.1 B107H Console Pcb 1

2 7.2 GB818M4*10DHS2 Phillip Screw M4*10 4

3 7.3 GB845ST2.9*9.5DS Phillip Screw ST2.9*9.5 22

4 7.4 GB845ST4.2*16DS Phillip Screw ST4.2*16 8

5 7.5 L190XHB-SMA-7 Joint Wire 2 1

6 7.6 L260VHR-SMA-2 12 Voltage Power Wire 1

7 7.7 L260XHB-SMA-4 Joint Wire 1 1

8 7.8 L300XHB-SMA-12 Joint Wire 3 1

9 7.9 PR3003000 PCB Support Pillar 4

10 7.10 RT7005100 PCB Bracket 1

11 7.11 RT700MM01 Console Overlay 1

12 7.12 RU7000700 Console Frame 1

13 7.13 RU700DZB01 Top Cover of Console 1

14 7.14 RU700DZB02 Bottom Cover of Console 1

15 7.15 RU700DZB03 Holder for Magazine 1
