Impulse SL7046 User Manual

14

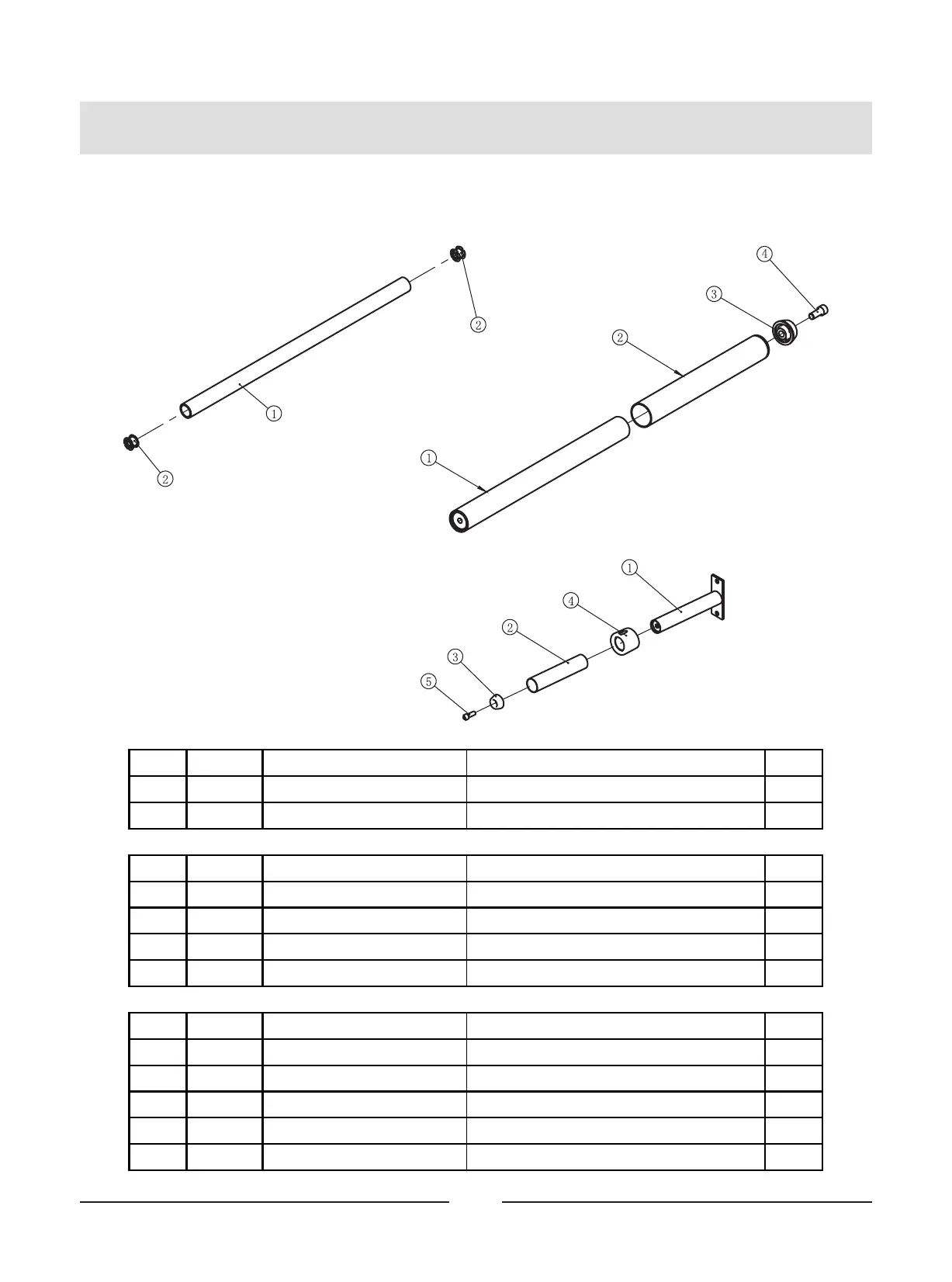

Exploded View and Parts List
Weight Plate Storage ASSY
Weight Horn ASSYFoam Tube ASSY
Item No. Grade No. Part No. Description QTY
1 7.1 SL70391100 Weight Plate Storage 1
2 7.2 PL0702800 Weight Horn Sleeve 1
3 7.3 PL0702300 Weight Horn Plastic Cap 1
4 7.4 PL4003200 Weight Horn Rubber Donut 1
5 7.5 GB70M12*35N19 Socket Head Cap Screw M12*35 1
Item No. Grade No. Part No. Description QTY
1 5.1 ABS70130700 Foam Tube 1
2 5.2 IF81165000 Nut Φ25 2
Item No. Grade No. Part No. Description QTY
1 6.1 SL70391000 Weight Horn 1
2 6.2 HSP70522000 Long Weight Horn Sleeve 1
3 6.3 SL70012000 Weight Horn Plastic Cap 1
4 6.4 GB70M12*30DS20NL Socket Head Cap Screw M12*30 1
