ImpulseRadar PinPointR User Manual V1.5.1
Page 5 (36)
Hardware overview
The ImpulseRadar PinPointR is a dual-channel GPR system based on a modern real-time sampling (RTS)
technology platform, offering state-of-the-art data acquisition capabilities. The PinPointR system
incorporates two separate GPR-channels, co-located at the same mid-point, as well as an in-built GPS
as standard.
GPR unit Centre Frequency
• PinPointR 400 MHz and 800 MHz
The PinPointR is a push-cart system supported by several accessories, as shown in Figure 1 below.

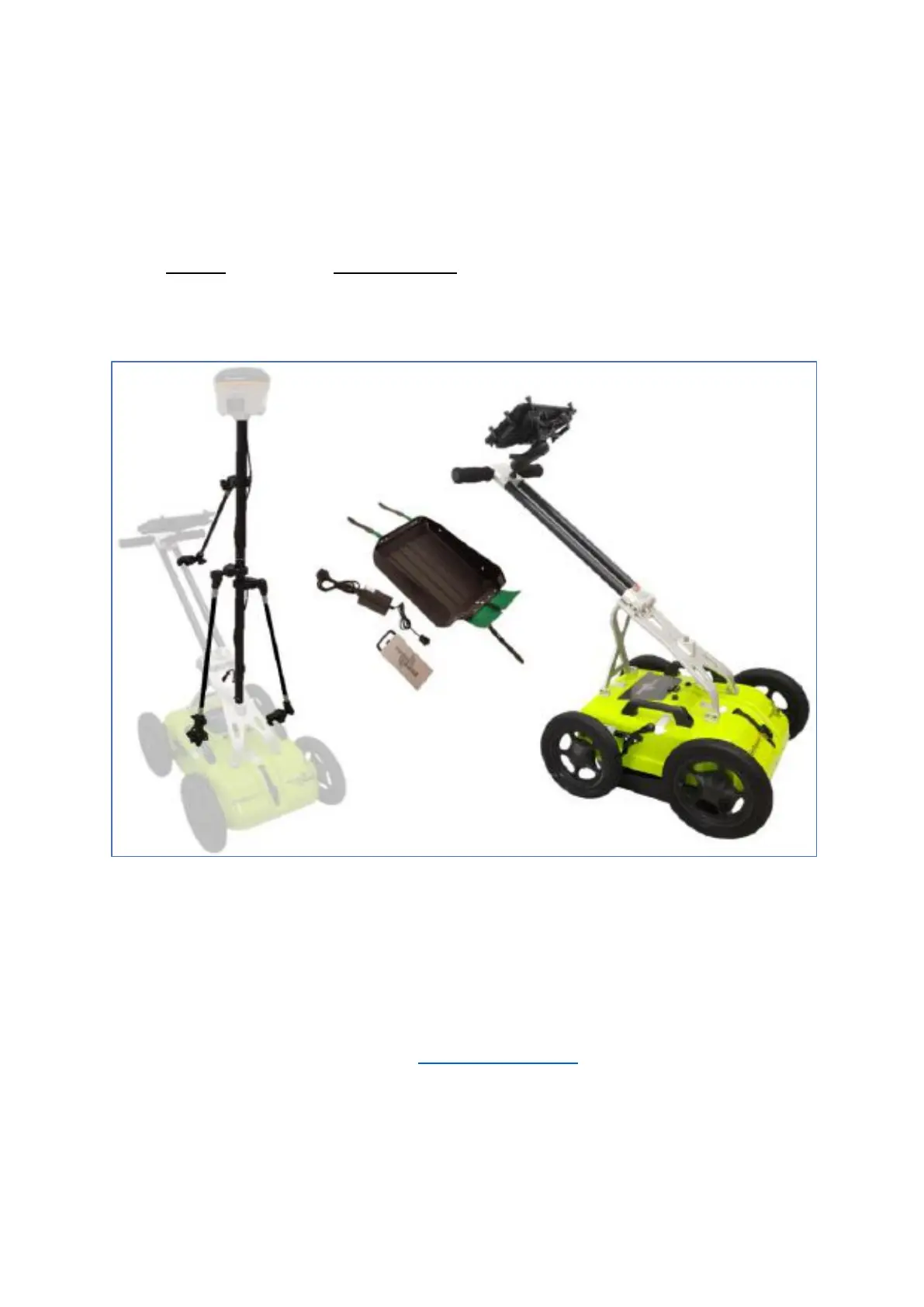

Figure 1 System overview
Data collection is managed over an Ethernet Wi-Fi link and a suitable Android device running the
ImpulseRadar ViewPoint App (ViewPoint). With ViewPoint, the operator may collect single line data,
albeit with two frequencies, or a few different types of multi-line projects. Whether a single line of
project-based data has been collected, datasets may be directly imported into the ImpulseRadar
CrossPoint software (CrossPoint) for processing and evaluation in a Windows environment.
For information on other applications or configurations, please contact your local ImpulseRadar
representative, or contact our sales team at sales@impulseradar.se
GPR unit
The GPR unit has a field-rugged design equipped with both a low and high-frequency channel, making
it possible to detect shallow and deep utilities simultaneously. Power is supplied via a removable and
