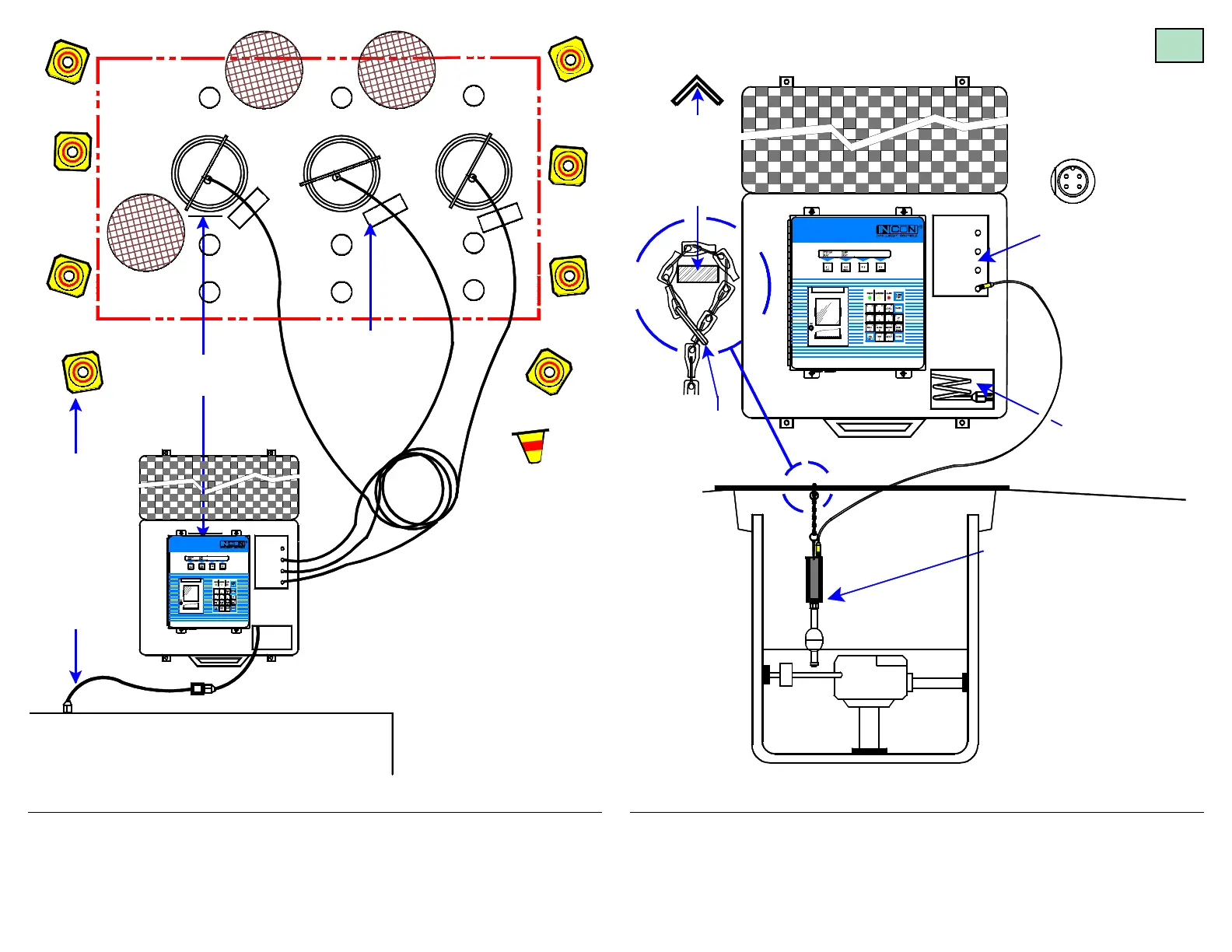

Figure 1.3 Typical Leak Detection Probe – Turbine Sump Installation
Overview
Figure 1.4 Leak Detection Probe Installation
Turbine Sump
—
❖
—
Pg 3
STP
SPLIT RING
TS-STS
SUMP TEST SYSTEM
SUMP TEST SYSTEM
FLAT METAL
/ ANGLE IRON
REQUIRED
TO SUSPEND
PROBE
(
SIDE VIEW
)
TS-STS
STS-PRB-12
LEAK TESTING
PROBE WITH:
TSP-SSP
STAINLESS
STEEL FLOAT
TURBINE SUMP
WITH TEST SOLUTION
(
Side View
)
POWER CORD
WITH A GROUNDED
3-PRONGED
PLUG
3
RECEPTACLES
FOR FOUR
SCREW-IN, PROBE
CABLE PLUGS
1
2
4
SUMP
TAPE / WEIGHT DOWN
CABLE TO PREVENT
ACCIDENTAL
MOVEMENT DURING
LEAK TESTING
(PROBE CABLE
PN: 600-0200
= 50 FEET)
Turbine
Sump
2
TS-STS
SUMP TEST SYSTEM
GROUNDED
3 PRONG
EXTENSION
CORD REQ'D
SAFETY
CONES
BUILDING
SUMP TEST SYSTEM
TS-STS
1
4
SUMP
3
2
Tank Pad
Turbine
Sump
1
10 Feet - Min. Distance
Per NFPA 30A
Turbine
Sump
3
