inDESIGN MP30D - Rear Panel

MP30D: INSTALLATION & OPERATION MANUAL
PAGE 7

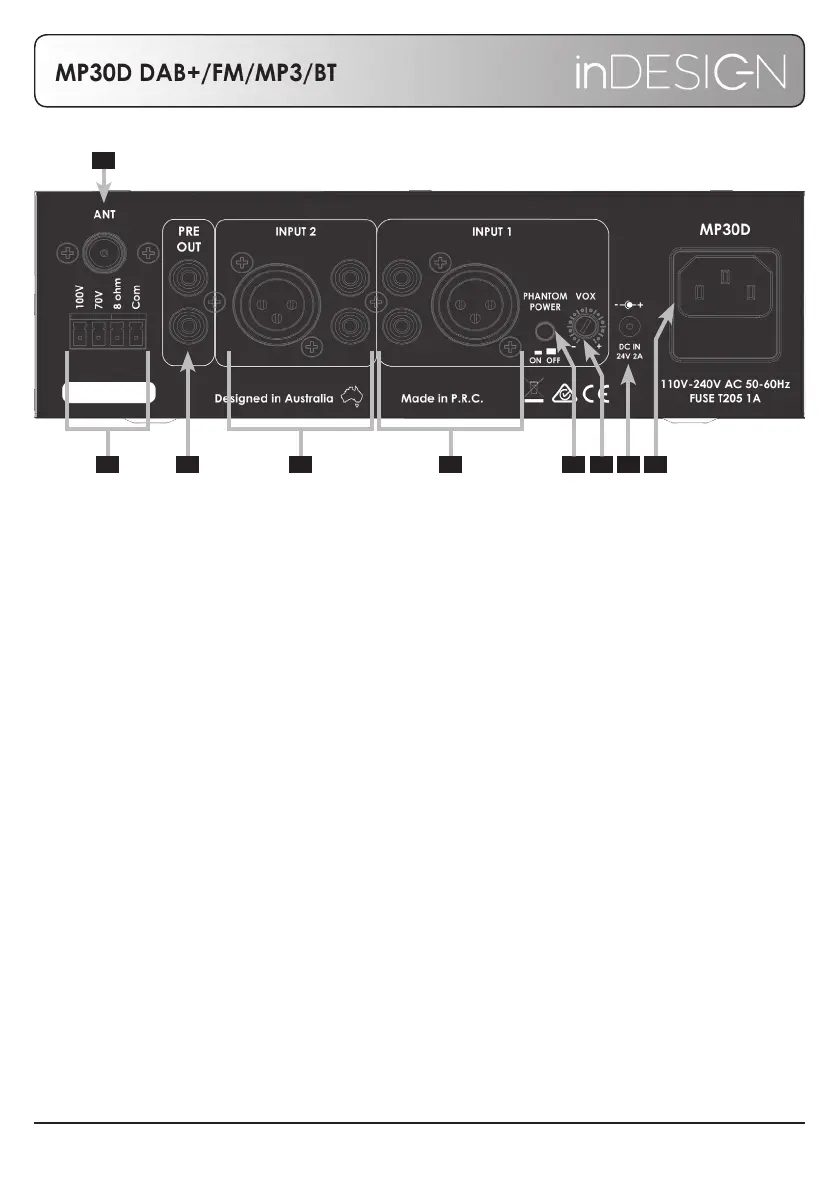

REAR PANEL
20. Antenna socket for DAB+ and FM radio.
21. Loudspeaker outputs.
When connecting low impedance speakers, use COM and 8Ω connections.
For 70V or 100V speakers, use COM and the respective 70V or 100V connections.
Do not use both 8Ω and 70V/100V outputs at the same time.
22. Pre-Master Auxiliary Output for external devices.
23. Mains Socket.
*Note: Only use a fuse equal to the specied rating.
24. DC 24V input socket.
25. Input 1. Balanced XLR for mic level and dual RCA for line level inputs.
26. Input 2. Balanced XLR for mic level and dual RCA for line level inputs.
27. Phantom Power switch. 24V DC mic input 1.
28. Voice Priority. Threshold level adjustment for input 1 voice priority.
