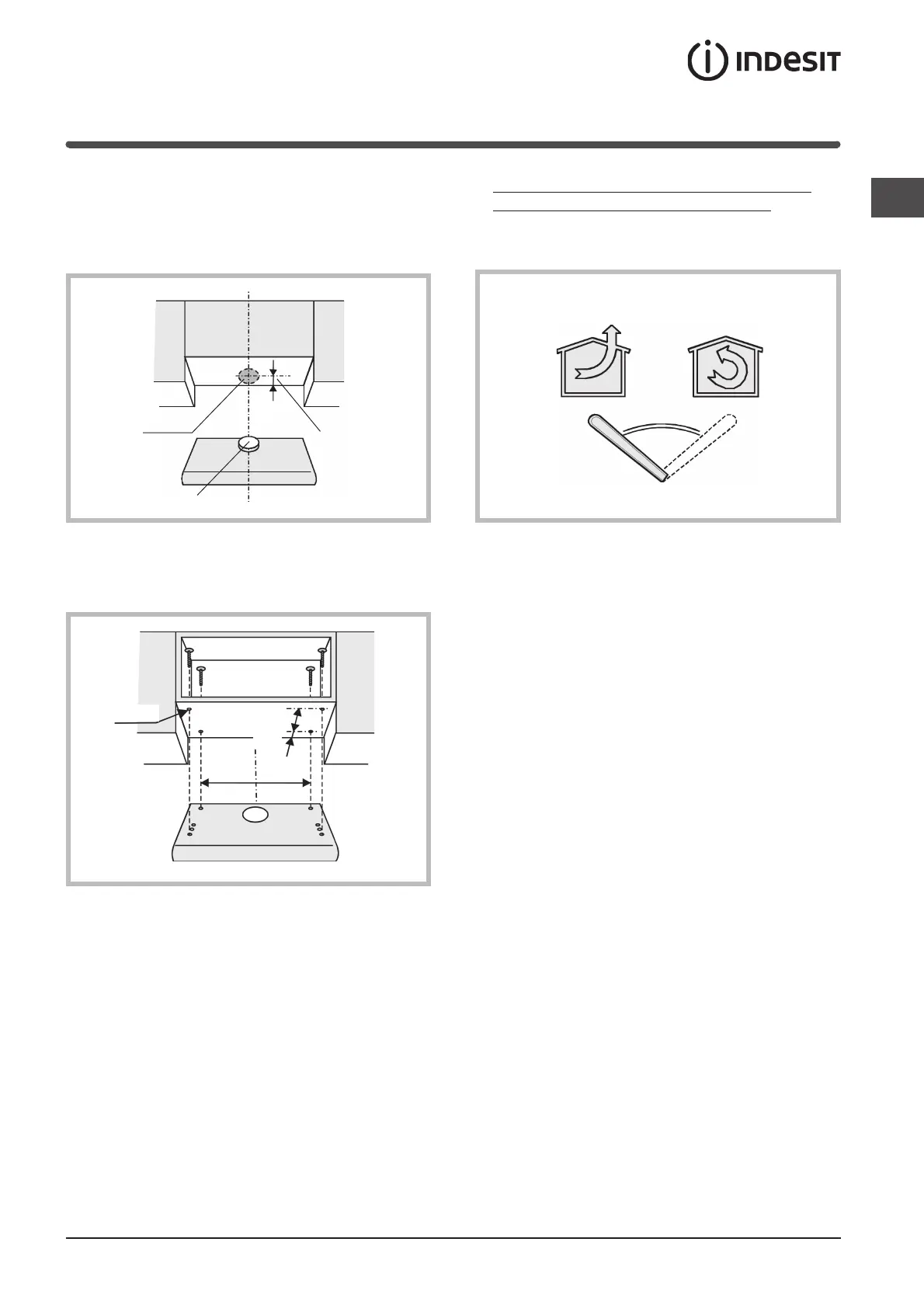

4) Assembly on a wall unit
a) For installation with an air outlet at the top (B),
drill a 133mm diameter hole onto the wall unit
before assembly.
b) Drill 4 holes onto the wall unit using the
measurements shown in the diagram below.
Fix the hood onto the 4 screws working from
inside the wall unit.
5) Connect a flexible pipe to the hood flange using a
metal clamp. Piping and clamps are not supplied.
Ø 133
85
B
Ø 6mm
X
34
256
==
6) MAKE SURE THAT THE DUCTING/FILTERING
LEVER IS IN THE CORRECT POSITION: this lever
is located on the motor unit and must be positioned
on the (P) symbol for installing the ducting version.
7) Wire the hood using the power supply cable (see
section on “Electrical connection”).
