13 of 28
Indesit Company
Service Manual UK English
There is a Warning Lamp on the console and an eye glass in the dispenser to advise the user of low
rinse aid. The LED is triggered by a level switch, when the rinse aid is empty.
The Eye Glass is located on the dispenser.
Flow Meter
Located in the rear of the base between the inlet water valve and
air break, the flow meter controls the quantity of water entering the
machine. As water passes through the flow meter, a signal on every
rotation is counted by the module, which switches the water valve
off, when the correct amount of water has entered the machine.
Anti Flood Device
Consisting of a polystyrene float and micro switch.
Leaking water into the base panel operates the float
switch, which when made, sends a signal to the
module, aborting the cycle, bringing on the drain pump
and displaying a fault code (see page 16).

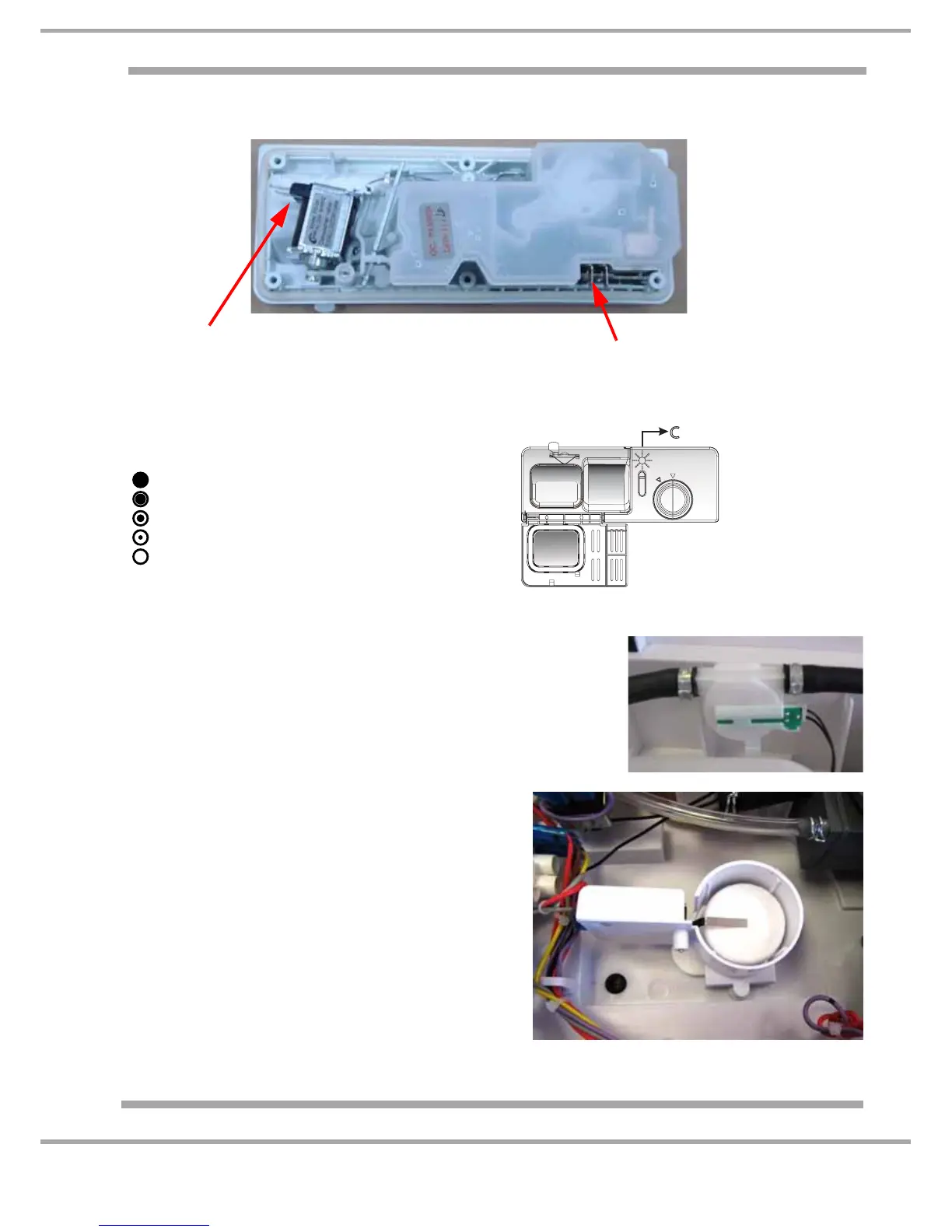

Dispenser Solenoid
Rinse Aid Level Sensor
(Rinse-Aid indicator)
As the rinse aid diminishes, the size of t rotacidnileveldiaesnirehtnotodkcalbeh
changes, as illustrated below.
Full
3/4full
1/2 full
1/4 full - Should refill to eliminate spotting
Empty
C
Anti Flood Float and Switch Assembly
