Indesit ICD661UK - Wiring Diagram

17 of 28
Indesit Company
Service Manual UK English

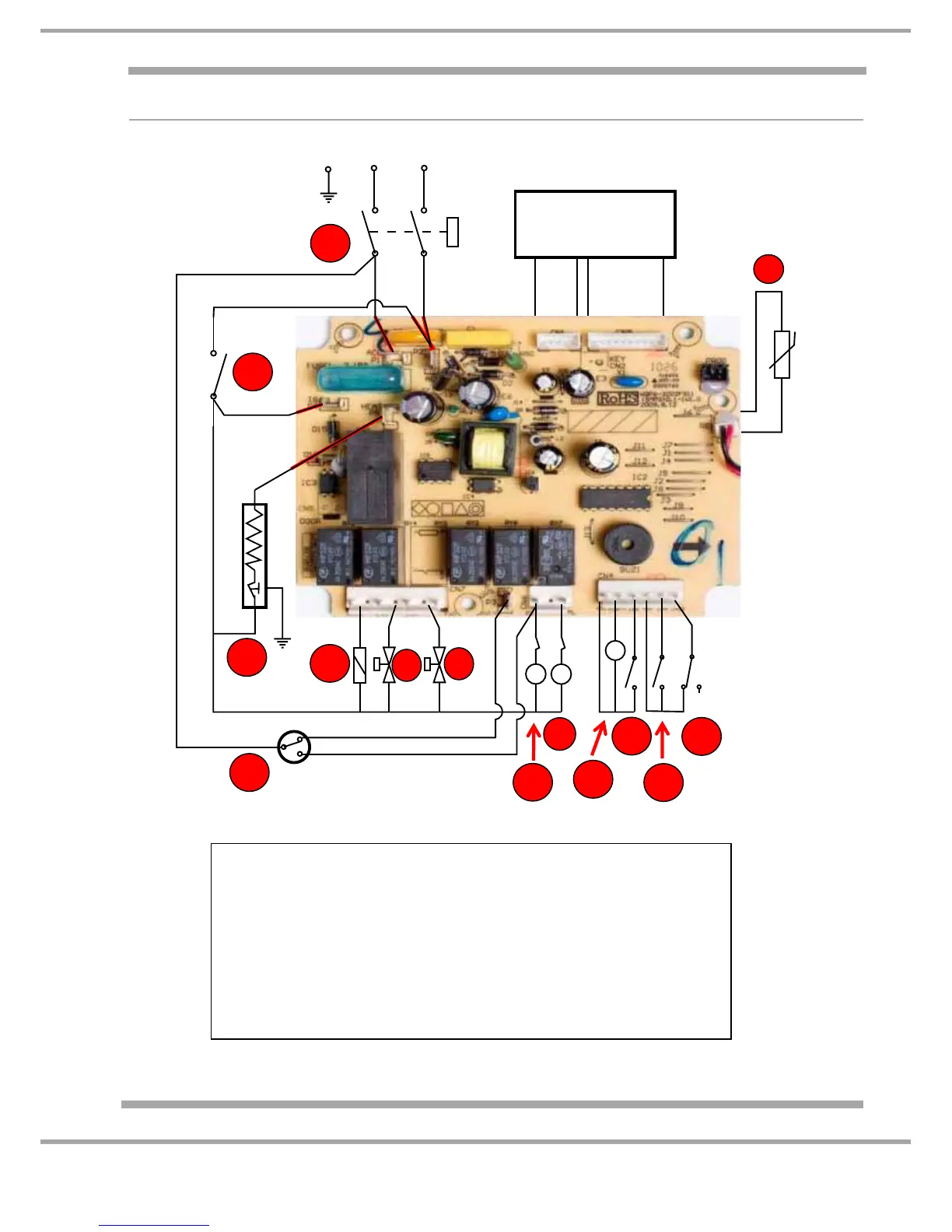

WIRING DIAGRAM - MODULE CONNECTIONS
A
N
M
L
B
C
D
E
G
J
H
K
F
Key:
A NTC
B Overflow Switch
CSaltSwitch
D Rinse Aid Switch
E Flowmeter
F Washing Motor
G Drain Pump
H Inlet Solenoid Valve
I Regenerating Solenoid Valve
J Dispenser Solenoid Valve
K Pressure Switch
L Heater
MDoorSwitch
N Power Switch
I
Display Board
Operation Board
PS
ML
1
32
1
2
3
LNE
Y/E
FM
