Indesit Company
Service Manual UK English
G. MODULE
1. Protect the customers worktop or surface and lay the machine on its back.
2. Remove the module cover fixing screw.
3. Remove the 2 module fixing screws.
4. Noting the connecter and cable positions, transfer wiring and connectors to the new module.

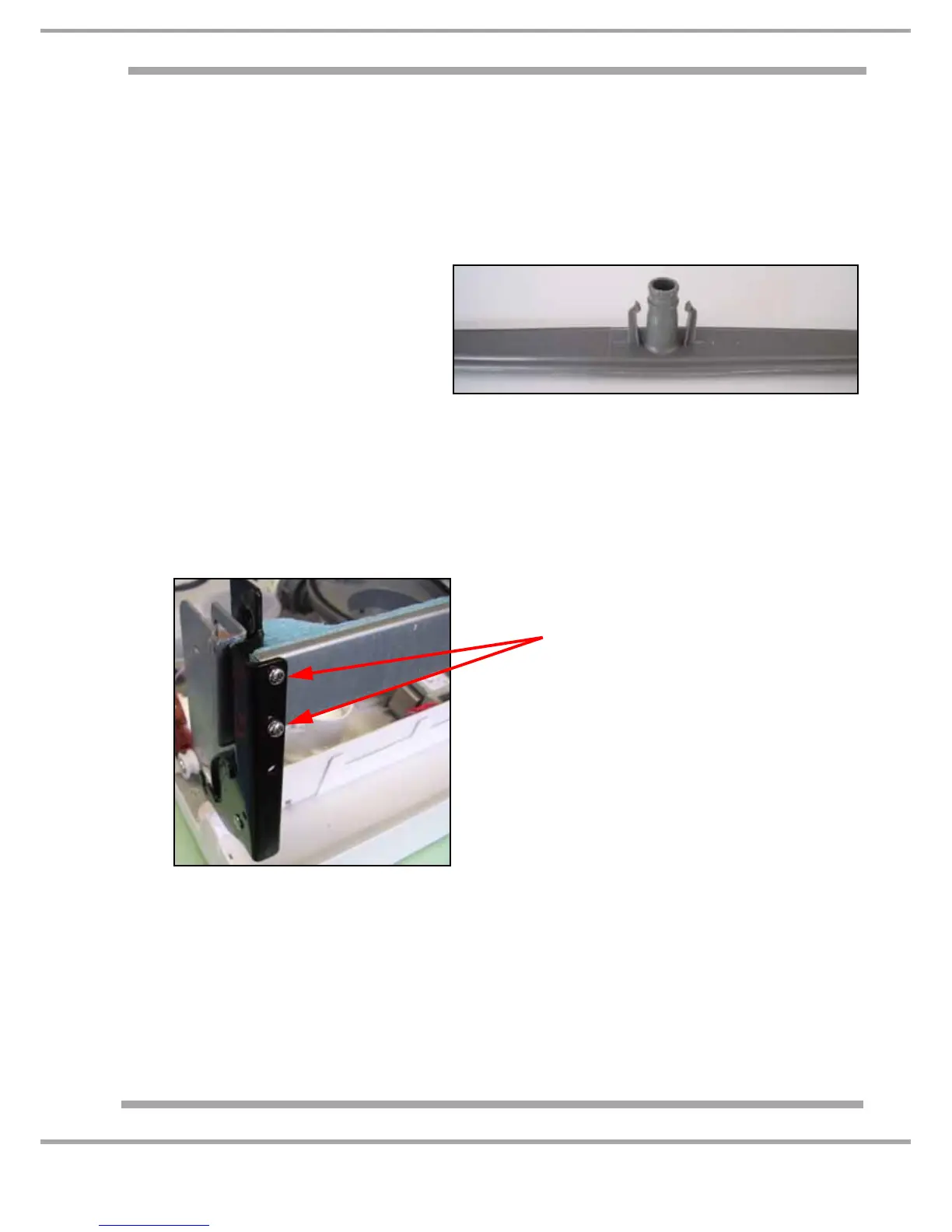

H. SPRAY ARM.
1. Holding the spray arm either side of its
support lift firmly to removeI.
J. DOOR HINGE & TENSION SPRINGS
1. Remove the outer cover (C).
2. Release and remove the tensions springs, noting which of the 3 positions the spring is hooked over
and the route of the hinge cord.
3. Release the 2 front fixing screws and remove the hinge.
Fixing Screws
