Indesit TI 60 X - Page 6

6
2
1
3
4
5
6
7
8
9
1. Rapid hotplate Ø 180 - 2000 W
2. Normal hotplate Ø 145 - 1000 W
3. Normal hotplate Ø 180 - 1500 W
4. Normal hotplate Ø 145 - 1000 W
5. Rapid hotplate control knob Ø 180
6. Normal hotplate control knob Ø 145
7. Normal hotplate control knob Ø 180
8. Normal hotplate control knob Ø 145
9. Hotplate operation control lamp
Operation of electric hotplates
• Set the knob to one of positions 1-6, which
correspond to different temperatures.
• To switch off the hotplate, set the knob to position “0”.
N.B.: In case of installation of a hood above the cooktop, please refer to the hood instructions for the correct distance.
230V ~ +
3 x 2,5 mm²
TYPE: PLETP 230V ~ 50Hz 5,5 kW
SUPPLY VOLTAGE
ELECTRICAL
CONNECTION
CONDUCTORS:
NUMBER AND SIZE

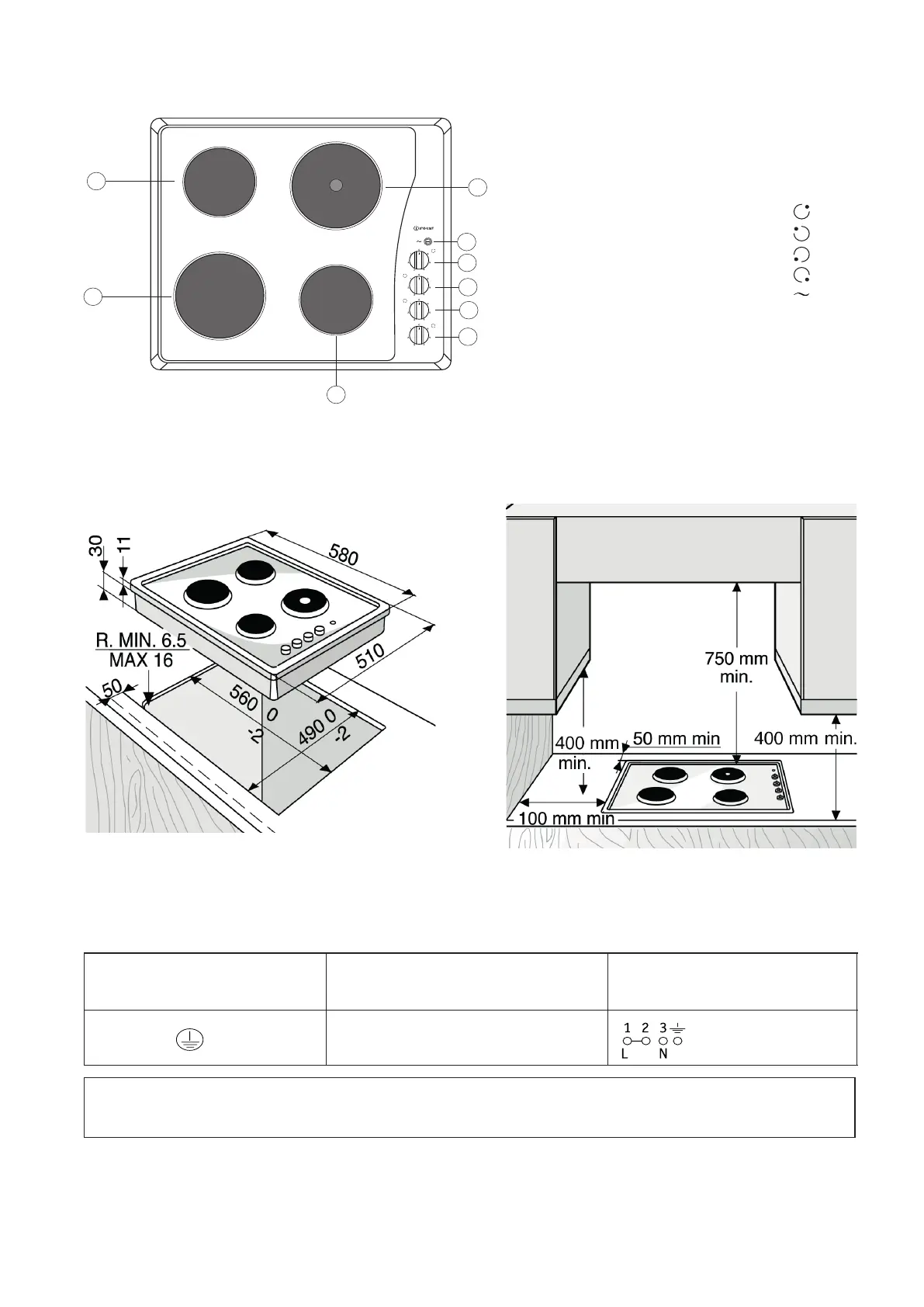

DIMENSIONS OF COOKTOP AND WORKTOP (mm)
PRODUCT DESCRIPTION SHEET
