Procedure
1.

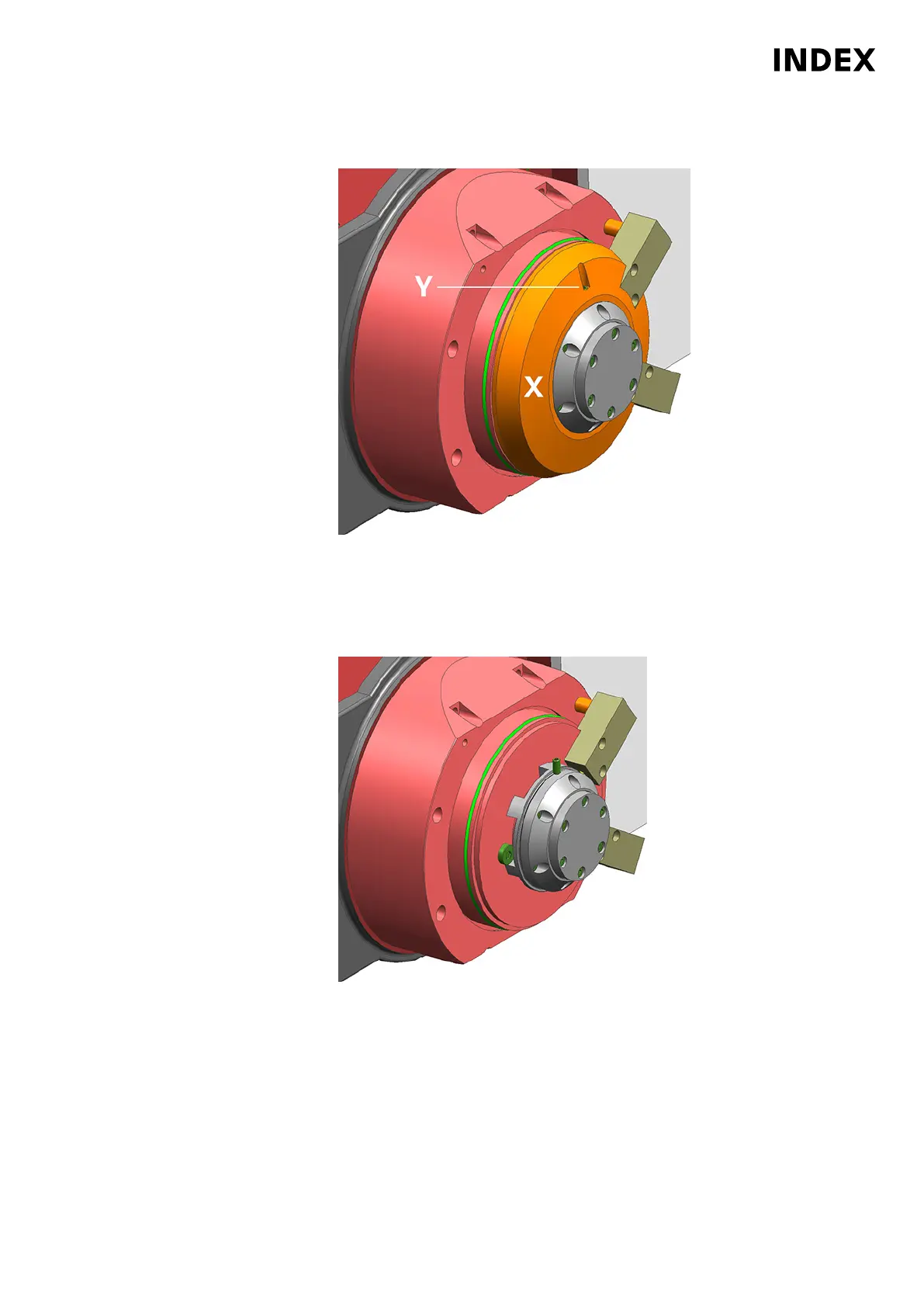

Example: (X) Labyrinth ring on motorized milling spindle
X
Spindle cover/labyrinth ring
Y Screw
Remove the labyrinth ring. Loosen and unscrew the screw marked (Y) and
remove the labyrinth ring from the spindle.
2.
Example: MFS_R200_Cleaning_003
Clean the labyrinth ring. Clean the free space behind the labyrinth ring by hand
with a cloth.
