ASSEMBLY INSTRUCTIONS

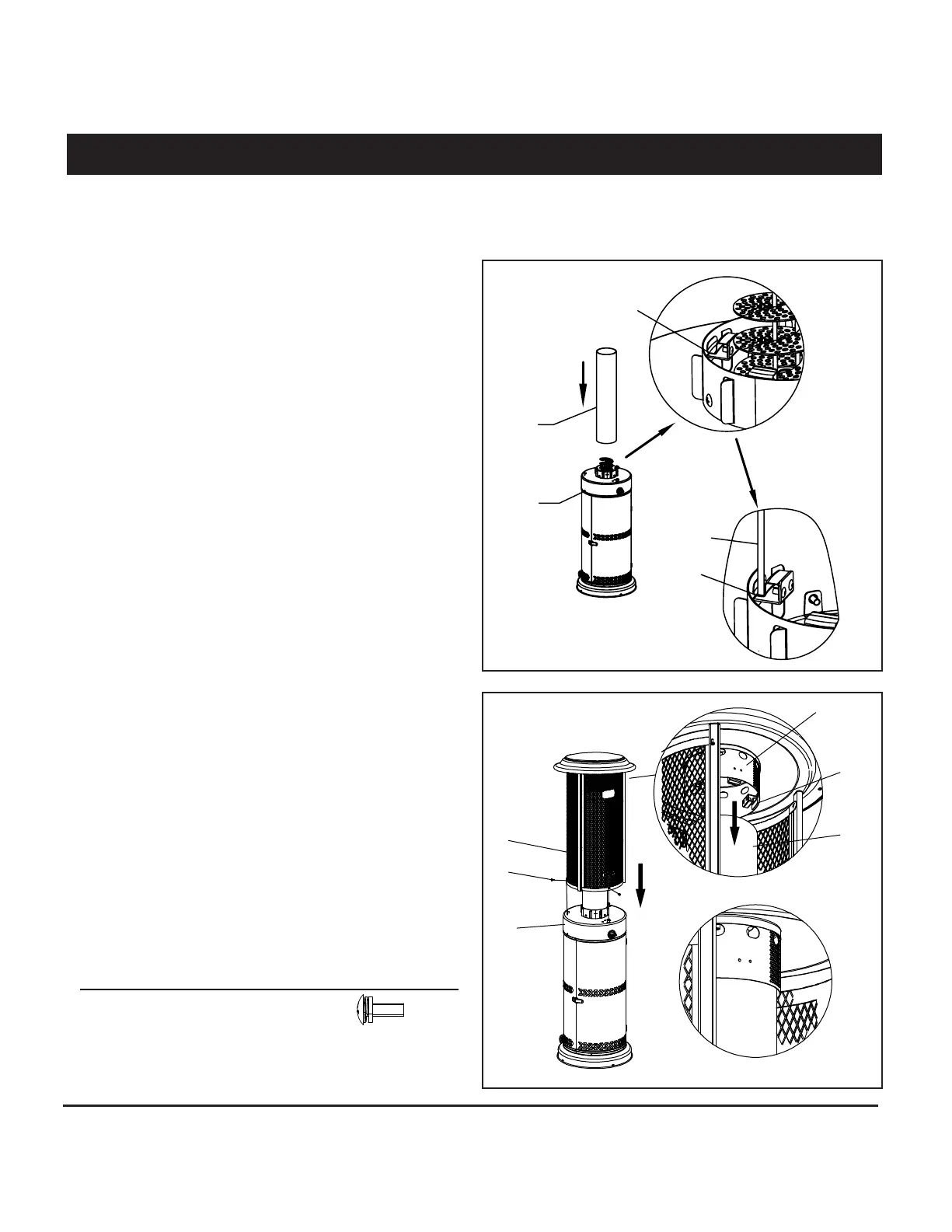

Step 7
Put the assembled meshes (5) onto the glass tube
(6), making sure the top of glass tube (6) is inserted into the
buckle slices on the emitter screen (3).
Attach the meshes (5) to the base assembly (9) with 3 M5
x 16 bolt assemblies (BB).
competent person. Proper assembly is the
responsibility of the installer.
Step 6
Put the glass tube (6) into the four buckle slices on
the base assembly (9).
Warning: This appliance requires installation by a
BB M5 x 16 bolt assembly 3
Hardware used
6
6
9
Buckle slice
Buckle slice
5
3
6
Buckle
slice
BB
9
Step 7:
Step 6:
