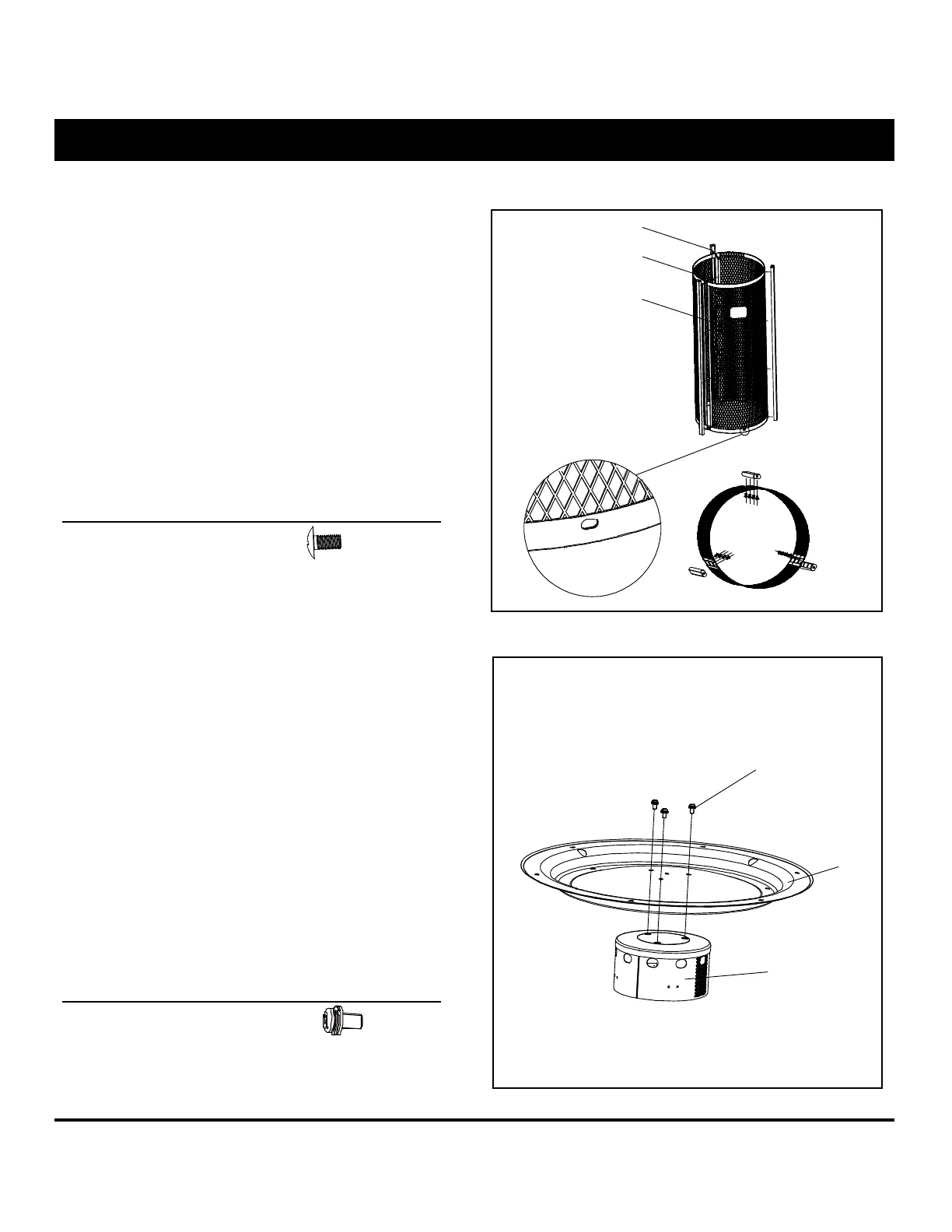

ASSEMBLY INSTRUCTIONS
Step 1
Step 2
Step1:
Step 2: Attach the reflector (2) to the emitter screen (3) with
three M6 x 12 bolt assemblies (AA).
Warning: This appliance requires installation
by a competent person. Proper assembly is
the responsibility of the installer.
Align the edges of two meshes (5), put one mesh
support rod (4) on the overlap of two meshes (5), and tighten
them with four M5 x 10 screws.
Then attach the last mesh (5) and two mesh support rods (4)
to the assembled unit with eight M5 x 10 screws.
CC M5 x 10 screw 12
Hardware used
AA M6 x 12 bolt assembly 3
Hardware used
4
5
CC
AA
2
3
