890 HD BF INSTALLATION INSTRUCTIONS
B- Within a 25mm rebated fireplace.

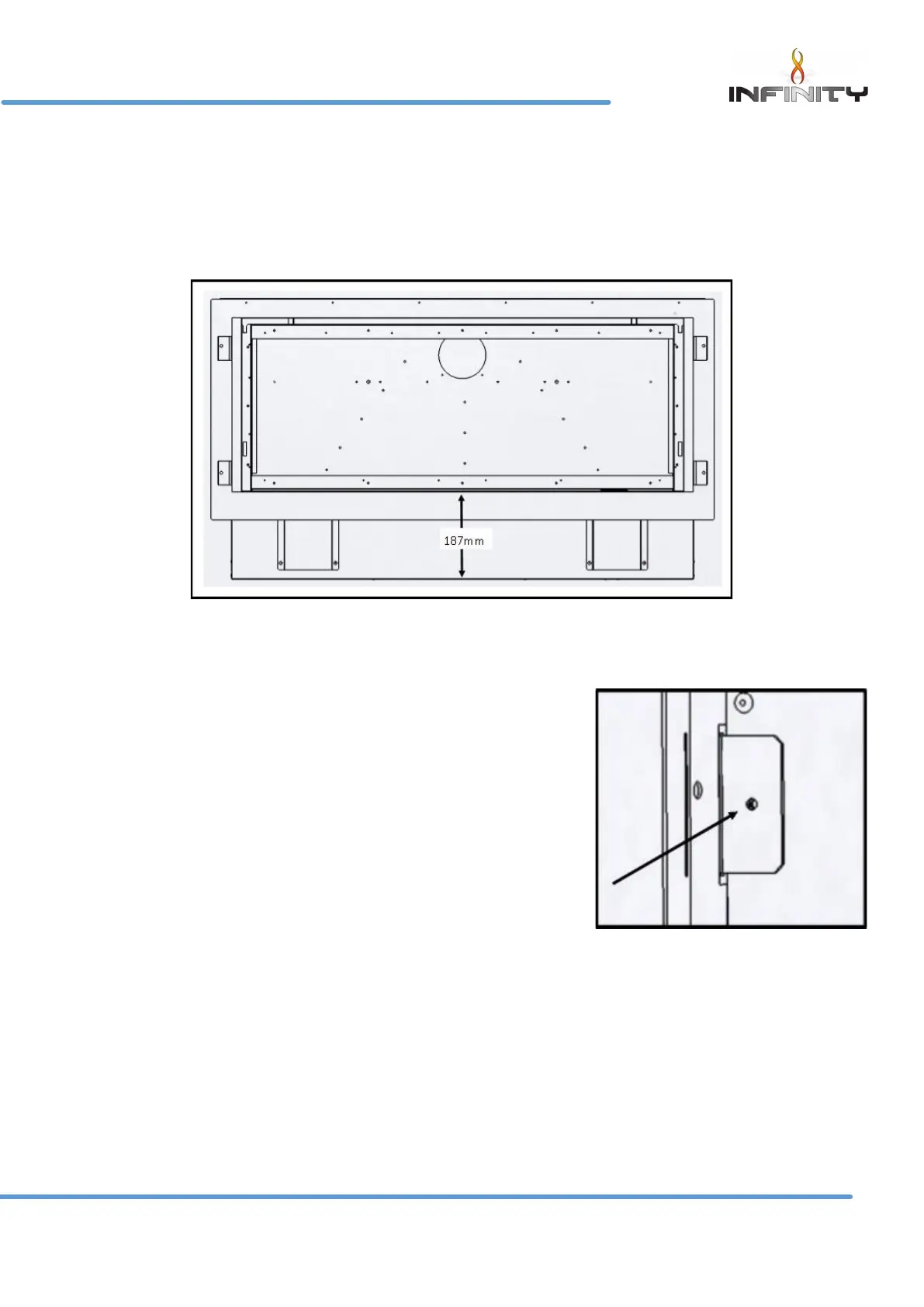

Determine the hight that the firebox needs to be installed at from the floor level. This can be acheieved by
measuring the bottom slip and hearth height less 187mm. You will need to allow for the hearth bedding
material.
Attach the slip plate assembly to the firebox using 4 off screws provided.
Using “rawl” plugs and screws retain the firebox via the 6mm holes within the slip plate.
Install fireplace to complete the installation.
