890 HD BF INSTALLATION INSTRUCTIONS
Before installing the zero kit outer box consideration must be taken into the routing of the gas connection
and mains cable. The gas connection should be run through the rear of the box using the entry hole
provided. The mains cable can be run via the rear or both sides using the cable entre hole provided. When
routing the cable consideration should be taken to avoid contact with the appliance and flue assembly.

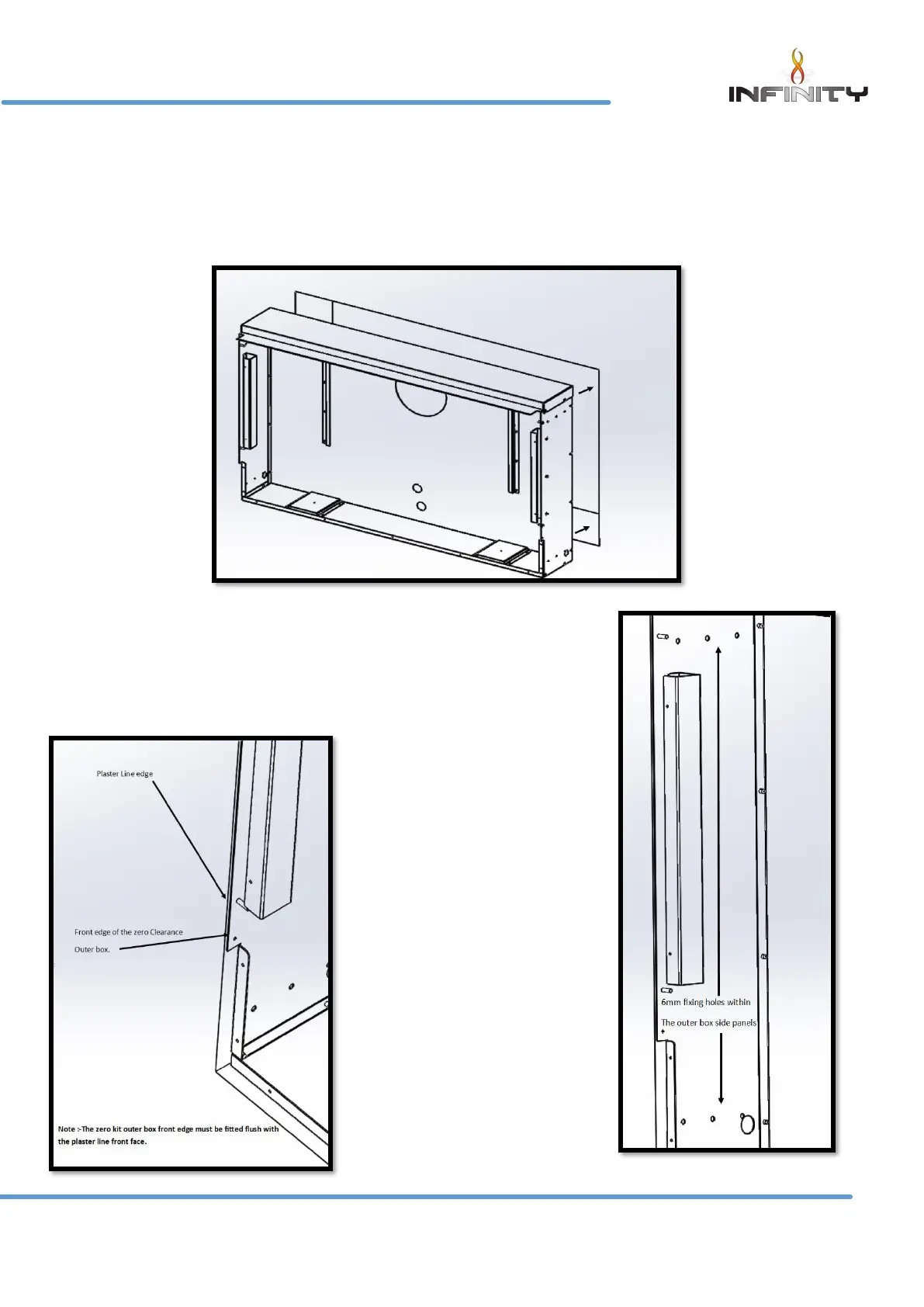

Secure the Outer box assembly within the open through the fixing holes
present within the left and right hand side panel. Fix using suitable “rawl”
plugs and fixing screw. Please note that the front edge of the box should
sit flush with the desired plaster line finish. Failure to do this will prevent
the outer trim from being
located correctly.
Using the 6m holes within the
outer box side panels. Secure
the box using suitable “rawl”
plugs and fixing screws.
