Infinity BU-120 - Connecting Your Subwoofer (Cont.); Connecting Satellites to Subwoofer

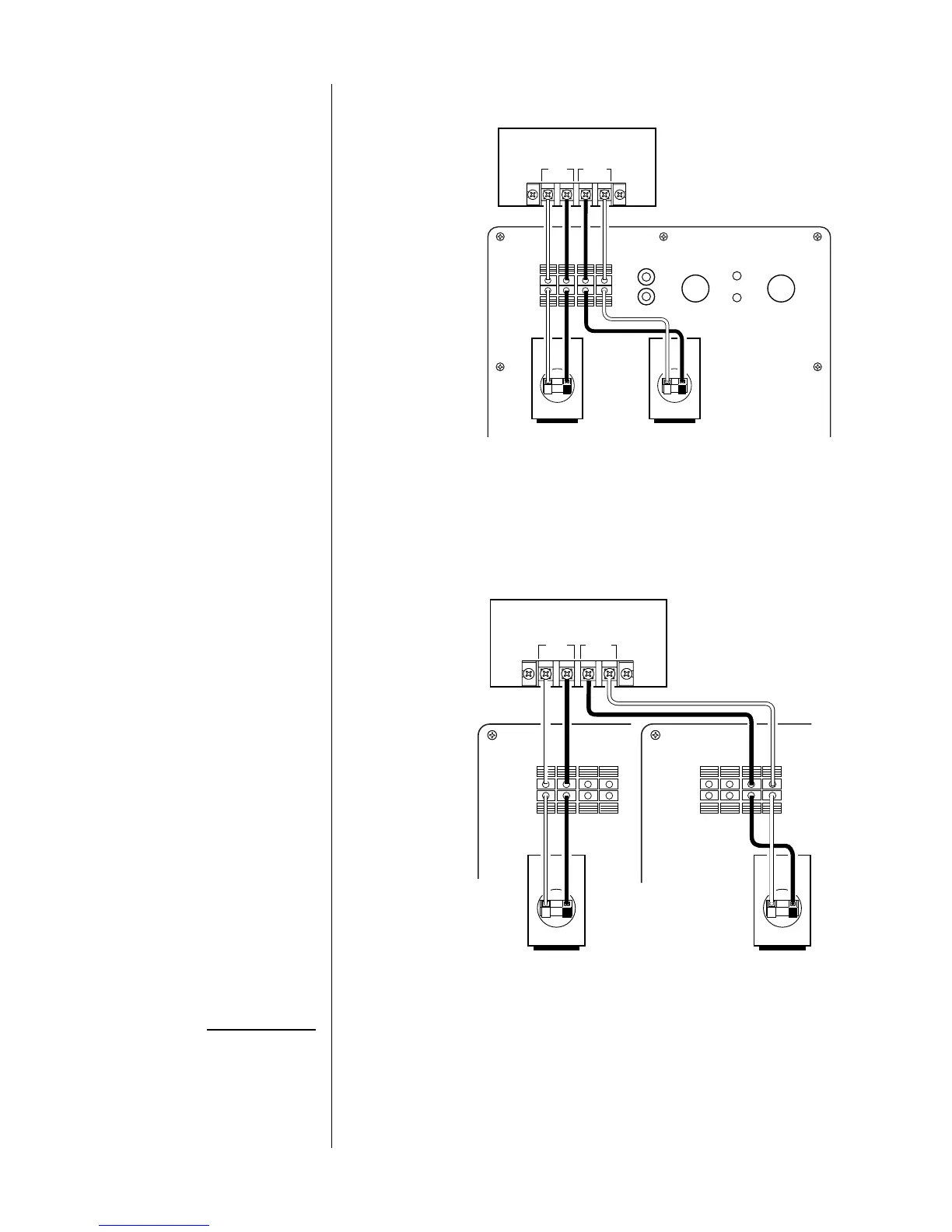

Figure 7. Method when connecting
one subwoofer to satellites.
Figure 8. Method when connecting
two subwoofers to satellites.
I MPORTANT !
CONNECTING YOUR SUBWOOFER (CONT.)
Depending on whether you are using one or two subwoofers, connecting your satellites can be
accomplished in one of two ways. If you are using a single subwoofer with a pair of satellites,
connect them as shown in Figure 7.
If you are using two subwoofers as a stereo pair with a pair of satellites, connect them as shown
in Figure 8.
BU Series Powered Subwoofers – Owner’s Manual
◆
11
AMPLIFIER
OUTPUTS
+
––
+
RIGHTLEFT
SPKR
In
SPKR
Out
+ L –
– R +
50 150
L
R
Low-Level In Crossover
Frequency Volume
Power
Phase
Min Max
L. SATELLITE
Rear View
+
–
R. SATELLITE
Rear View
+
–
SUBWOOFER
PLATE
LEFT
SUBWOOFER
PLATE
R. SATELLITE
AMPLIFIER
OUTPUTS
+
––
+
RIGHTLEFT
SPKR
In
SPKR
Out
+ L –
– R +
L. SATELLITE
Rear View
+
–
Rear View
+
–
RIGHT
SUBWOOFER
PLATE
SPKR
In
SPKR
Out
+ L –
– R +
The subwoofer has a variable frequency control that can be used to block unwanted
frequencies (between 50 – 150Hz) from being reproduced by the subwoofer. Where you set
this control depends on the low-frequency capabilities of your satellite speakers. Adjust this
knob to the lowest frequency that your satellite speakers were designed to reproduce (refer to
Operation, step 8).
