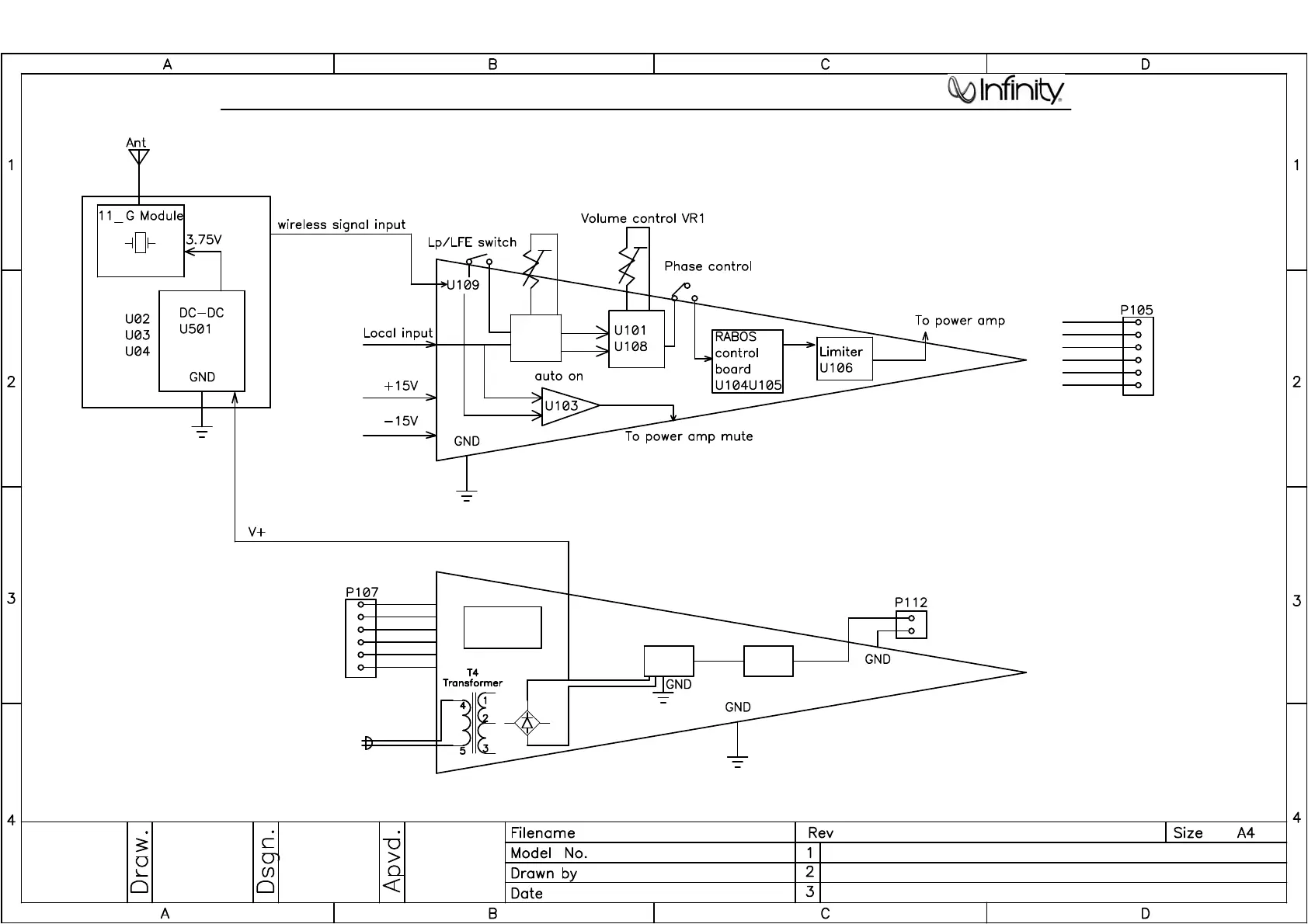

Ac in
Relay
GND
+15V
signal input
-15V
mute
Class_d
Amp model
To speaker
GND
+15V
-15V
protection
Power regulator
circuit
Crossover
control
U102
mute
PSW310W-block
signal input
protection
12.288MHz
Wireless PCB
Power amp PCB
Pre amp PCB
PSW310W subwoofer Classia Series
